65
4. XSEL-R/S/RX/SX/RXD/SXD
4.4 Setting example

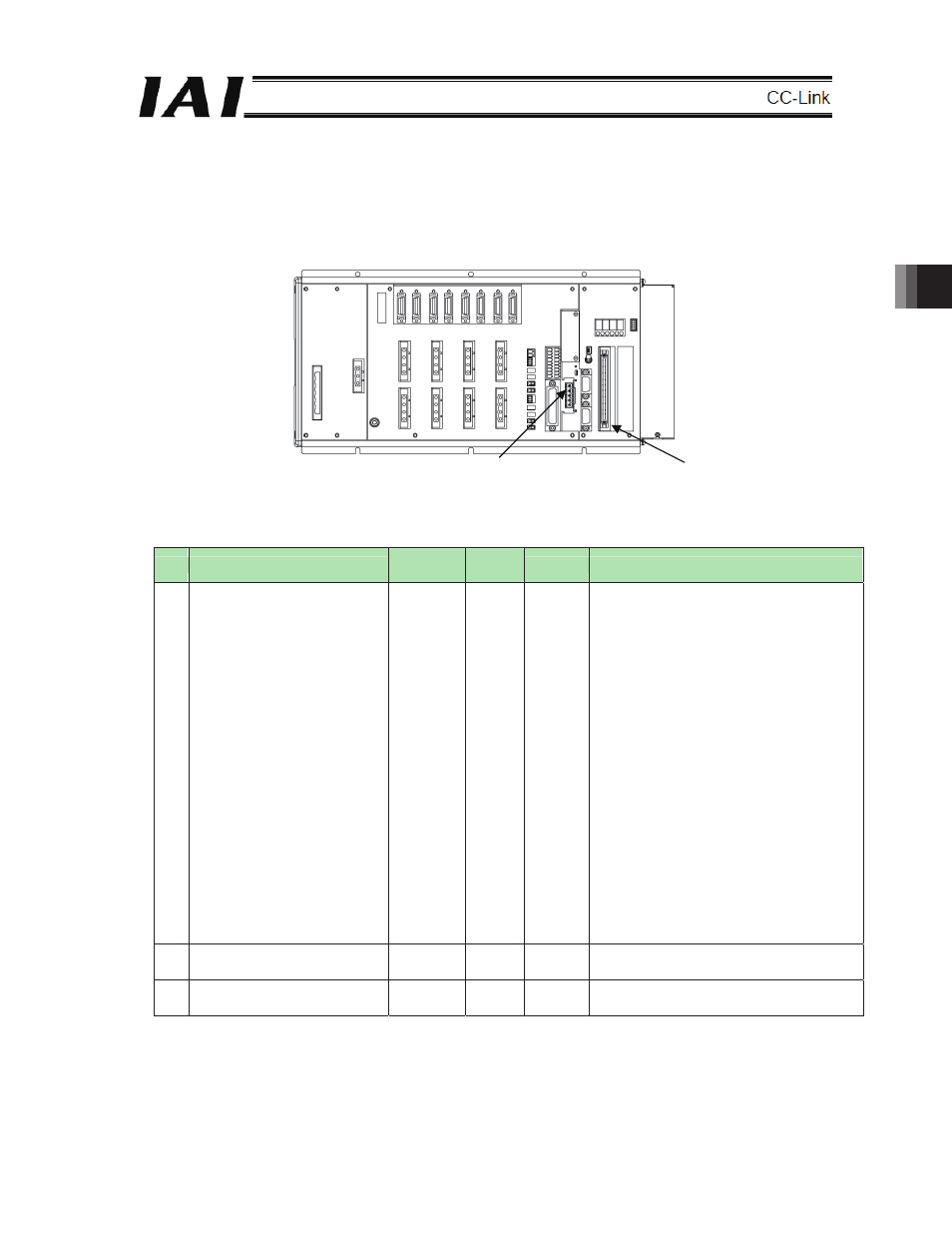

(1) Example for when using only CC-Link
It is how to establish the setting when using CC-Link to 16 ports of each input and output from the top
of the standard I/O ports, and no other I/O port (for I/O board, etc.) is to be used.
Standard Input Port No.0 to 15 Not Applicable (I/O board )
Standard Output Port No.300 to 315
(CC-Link
board )
Ɣ I/O Parameters
No. Parameter name
Default
(Reference)
Input
Range
Unit Remarks
1 I/O Port Allocation Type 1 0 to 1 0
0: Fixed Allocation
1: Automatic Allocation
x
Reference 1 Priority of I/O Port
Assignment when automatically
assigned
1) to Port Number
(No.0 to 299/No.300 to 599)
2) No. of Network I/F Module 1
3) I/Oslot 1(I/O1) Mounting board
4) I/Oslot 2(I/O2) Mounting board
* I/Oslot 1(I/O1) Assigned for the
continuously mounted range from
mounting board
x
Reference 1 Priority of I/O Port
Assignment when automatically
assigned
1) to Port Number
(No.1000 to 3999/No.4000 to
6999)
2) No. of Network I/F Module 2
3) Expansion I/O unit
4) IA Net
2
Standard I/O Fix-Allocated
Input Port Start No
0 -1 to 599 -1
0+(Multiples of 8)
[Ineffective when -1 is selected]
3
Standard I/O Fix-Allocated
Input Port Start No
300 -1 to 599 -1
300+(Multiples of 8)
[Ineffective when -1 is selected]
Reference 1
Priority of I/O Port Assignment
when automatically assigned
Port Number
(No.0 to 299/No.300 to 599)
1) Network I/F Module 1
2) I/O slot 1 (I/O1) Mounting board
3) I/O slot 2 (I/O2) Mounting board
* I/O slot 1 (I/O1) Assigned for the
continuously mounted range from
mounting board
1) Network I/F Module 2
2) Expansion I/O unit
3) IA Net
Reference 2
Priority of extension I/O ports at
automatic assignment
Port Number
(No.1000 to 3999/No.4000 to
6999)
It is how to establish the setting when using CC-Link to 16 points of each input and output from the top
of the standard I/O ports, and no other I/O port (for I/O board, etc.) is to be used.
0+ (Multiples of 8)
[Ineffective when -1 is selected]
300+ (Multiples of 8)
[Ineffective when -1 is selected]
Standard I/O Fix-Allocated
Output Port Start No.
Standard I/O Fix-Allocated
Input Port Start No.
