3. X-SEL-J/K/P/Q/JX/KX/PX/QX

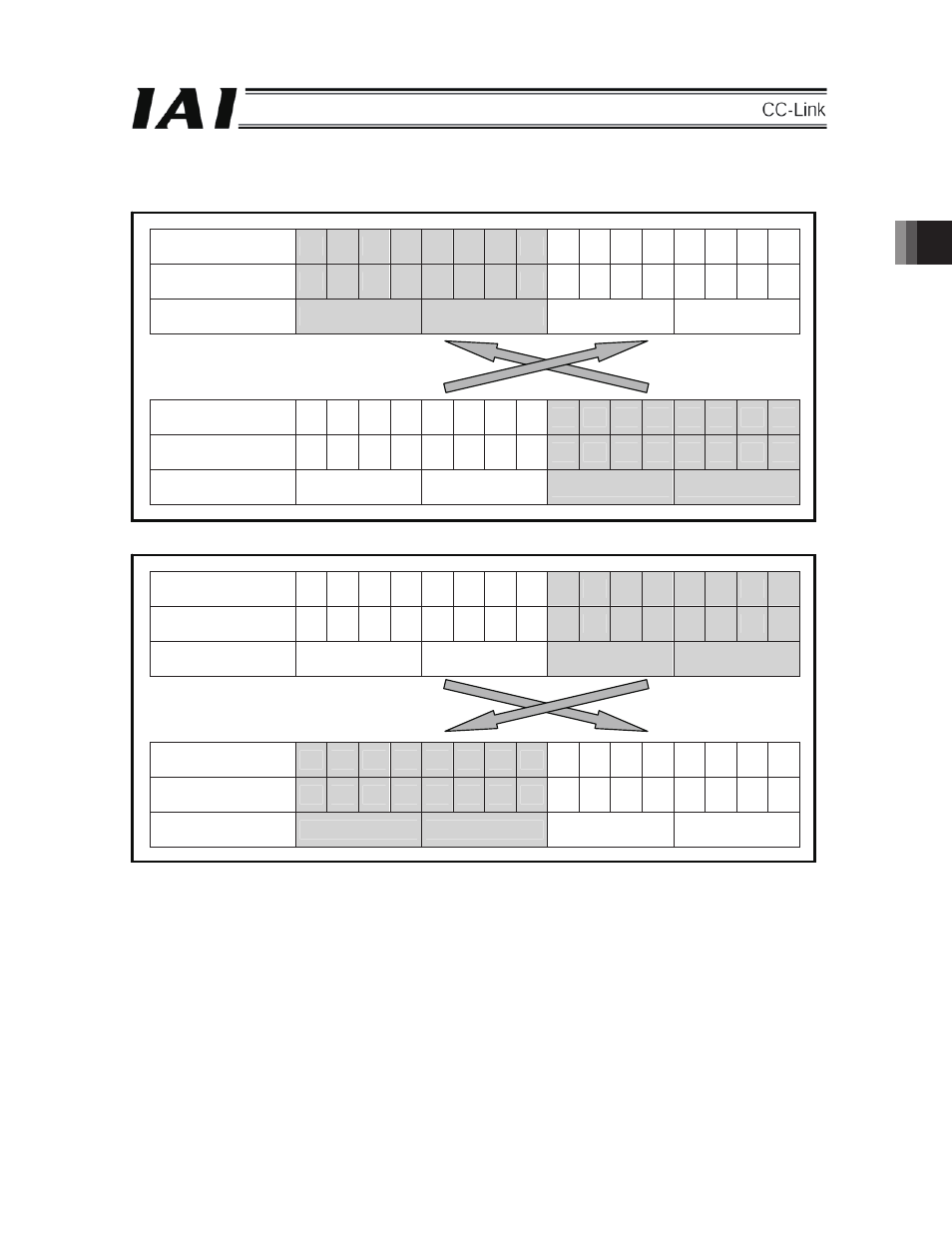

(b) When the I/O parameter No. 120 is set to “0”
ṳ: On, ṯ: OFF
X-SEL port No. (Input) 079 078 077 076 075 074 073 072 071 070 069 068 067 066 065 064
ON/OFF ṳ ṯ ṯ ṯ ṯ ṯ ṯ ṳ ṳ ṳ ṳ ṳ ṯ ṯ ṯ ṯ
Hexadecimal data 8 1 F 0
PLC: RWwn (Output) F E D C B A 9 8 7 6 5 4 3 2 1 0
ON/OFF ṳ ṳ ṳ ṳ ṯ ṯ ṯ ṯ ṳ ṯ ṯ ṯ ṯ ṯ ṯ ṳ
Hexadecimal data F 0 8 1
X-SEL port No. (Output) 379 378 377 376 375 374 373 372 371 370 369 368 367 366 365 364
ON/OFF ṳ ṳ ṳ ṳ ṯ ṯ ṯ ṯ ṳ ṯ ṯ ṯ ṯ ṯ ṯ ṳ
Hexadecimal data F 0 8 1
PLC: RWrn (Input) F E D C B A 9 8 7 6 5 4 3 2 1 0
ON/OFF ṳ ṯ ṯ ṯ ṯ ṯ ṯ ṳ ṳ ṳ ṳ ṳ ṯ ṯ ṯ ṯ
Hexadecimal data 8 1 F 0
