3. X-SEL-J/K/P/Q/JX/KX/PX/QX
3.1.3 Setting of I/O parameters (assignment of I/O ports)
The X-SEL I/O ports used in the CC-LINK are set. X-SEL allows a variety of settings of different I/O ports with I/O
parameters. (For further information, refer to the X-SEL Controller Operation Manual.)
The typical setting methods are shown below in this Manual.
Basically, the I/O parameter No. 1 sets the I/O port assignment type to fixed assignment, and sets the I/O port
address for each I/O slot.
(1)

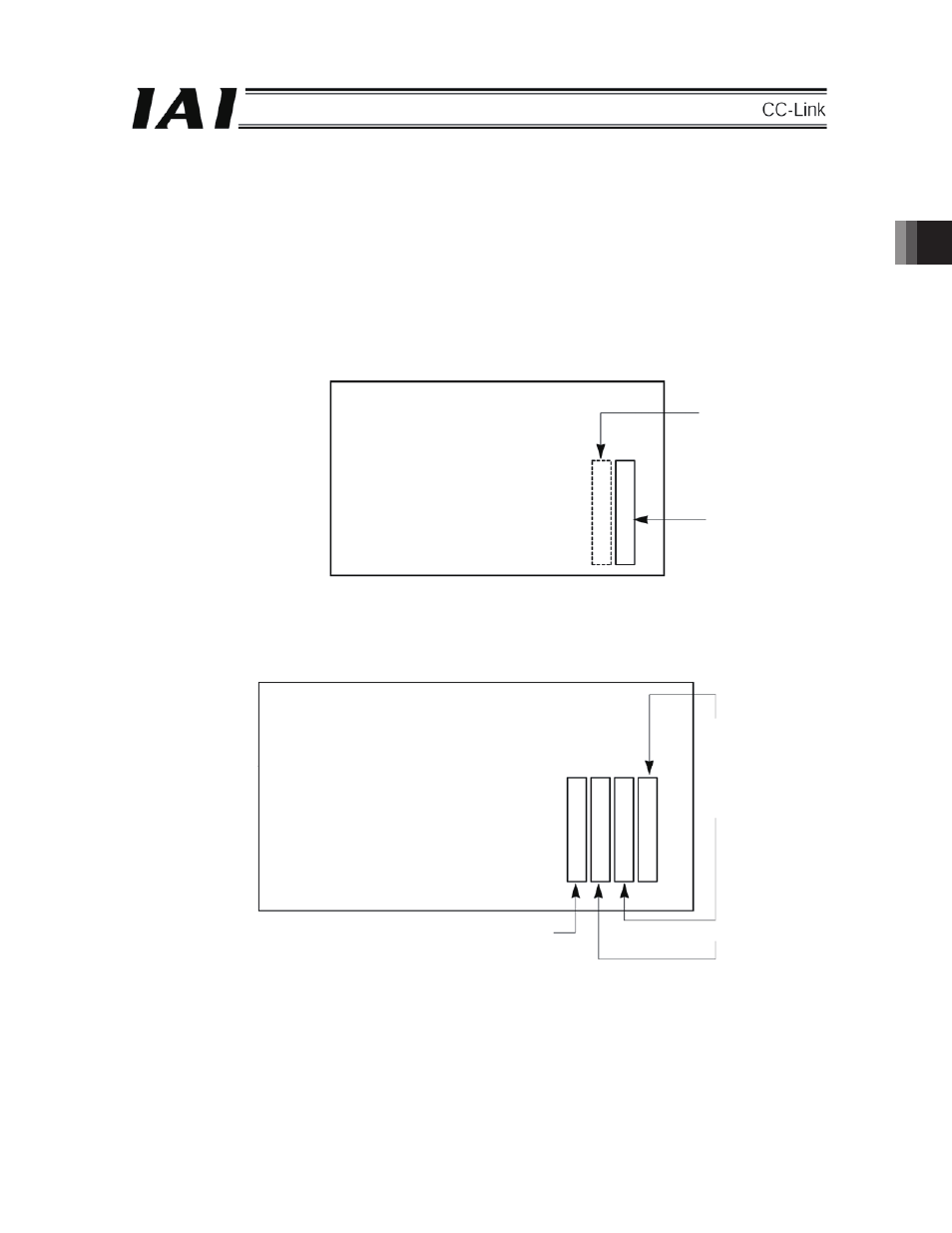

Board installation positions (slots) and parameter numbers
a. J
type
(Three- and four-axes
specifications)
Parameter No. 4
No.
5
No.
11
Parameter No. 2
No.
3
No.
10
Parameter No. 8
No.
9
No.
13
Parameter No. 6
No.
7
No.
12
Parameter No. 4
No.
5
No.
11
Parameter No. 2
No.
3
No.
10
Note: With no slots, parameters No. 6 to No. 9 are all set to “-1” and parameters No. 12 and No. 13 are set to “0.”
For the single-axis and two-axes specifications, parameters No. 4 and No. 5 are set to “-1” and parameter No.
11 is set to “0.”
b. K type
