12
3. X-SEL-J/K/P/Q/JX/KX/PX/QX
(2)
General type (K type)
ṳ The CC-link board is inserted into the standard slot (I/O 1: leftmost).
ṳ Either of an expansion I/O board
(*1)
or SIO board
(*2)
can be inserted into the expansion slot.
ṳ When an expansion I/O board
(*1)
is not used, it is not required to supply 24V DC to the I/O 24V power
connector.
ូ

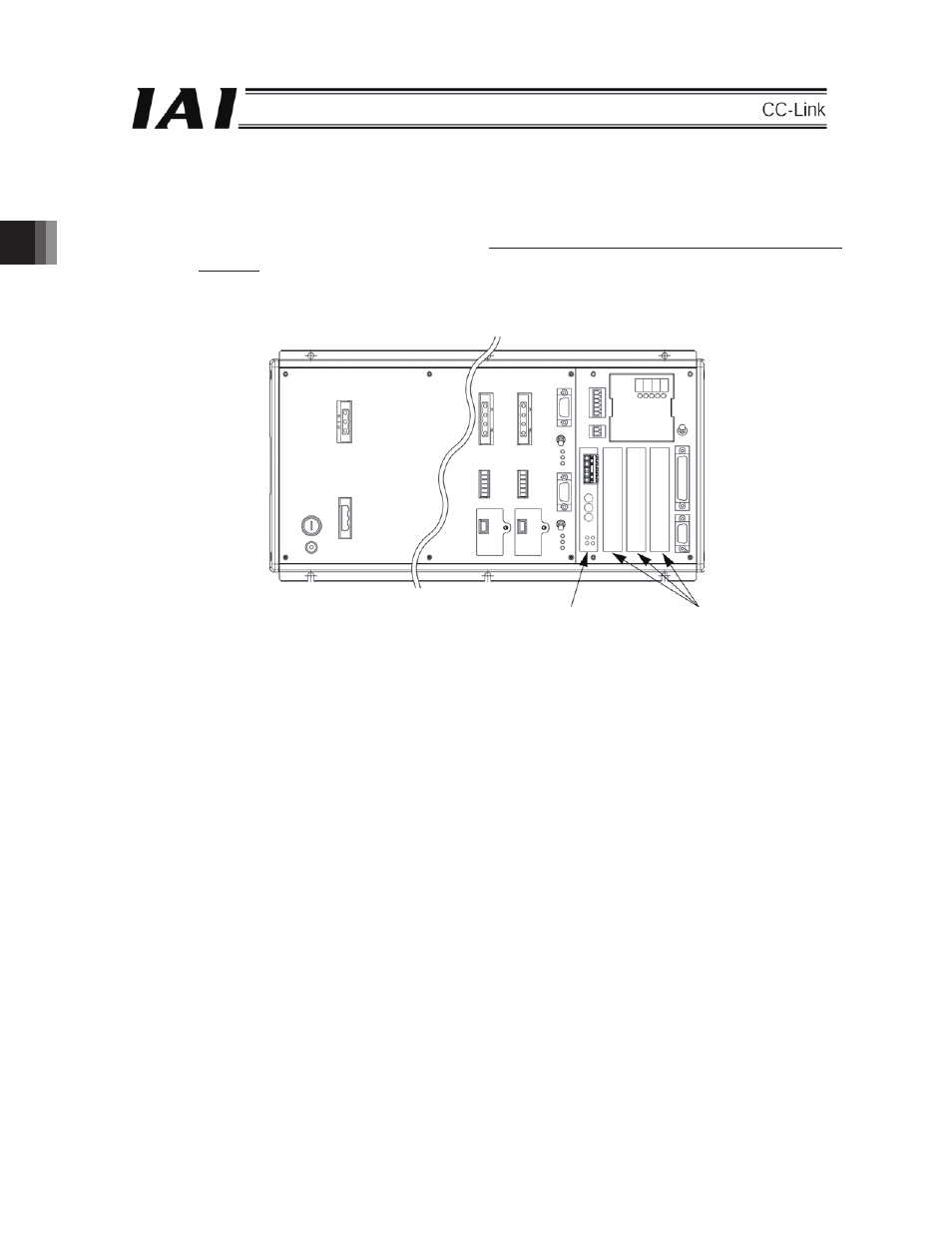

Fig. 3-1-2
(*1) Expansion I/O board
Model (1): IA-103-X-32 (Input: 32 points, Output: 16 points in NPN specification)
Model (2): IA-103-X-32-P (Input: 32 points, Output: 16 points in PNP specification)
Model (3): IA-103-X-16 (Input: 16 points, Output: 32 points in NPN specification)
Model (4): IA-103-X-16-P (Input: 16 points, Output: 32 points in PNP specification)
Model (5): IA-IO-3204-NP (Input: 48 points, Output: 48 points in NPN specification)
Model (6): IA-IO-3204-PN (Input: 48 points, Output: 48 points in PNP specification)
Model (7): IA-IO-3205-NP (Input: 48 points, Output: 48 points in NPN specification)
Model (8): IA-IO-3205-PN (Input: 48 points, Output: 48 points in PNP specification)
(Note) (5) and (6) models are dedicated for K type, and (7) and (8) models are dedicated for J type.
For further information on specifications, refer to the X-SEL Controller Operation Manual.
(*2) SIO board
Model (1): IA-105-X-MW-A (for RS232C)
Model (2): IA-105-X-MW-B (for RS422)
Model (3): IA-105-X-MW-C (for RS485)
Any single board above is 2-channel compatible.
CC-Link board
Expansion slot
