3. X-SEL-J/K/P/Q/JX/KX/PX/QX
3.1.5 P/Q type controller setting examples
(1)
Setting examples when only CC-Link is used

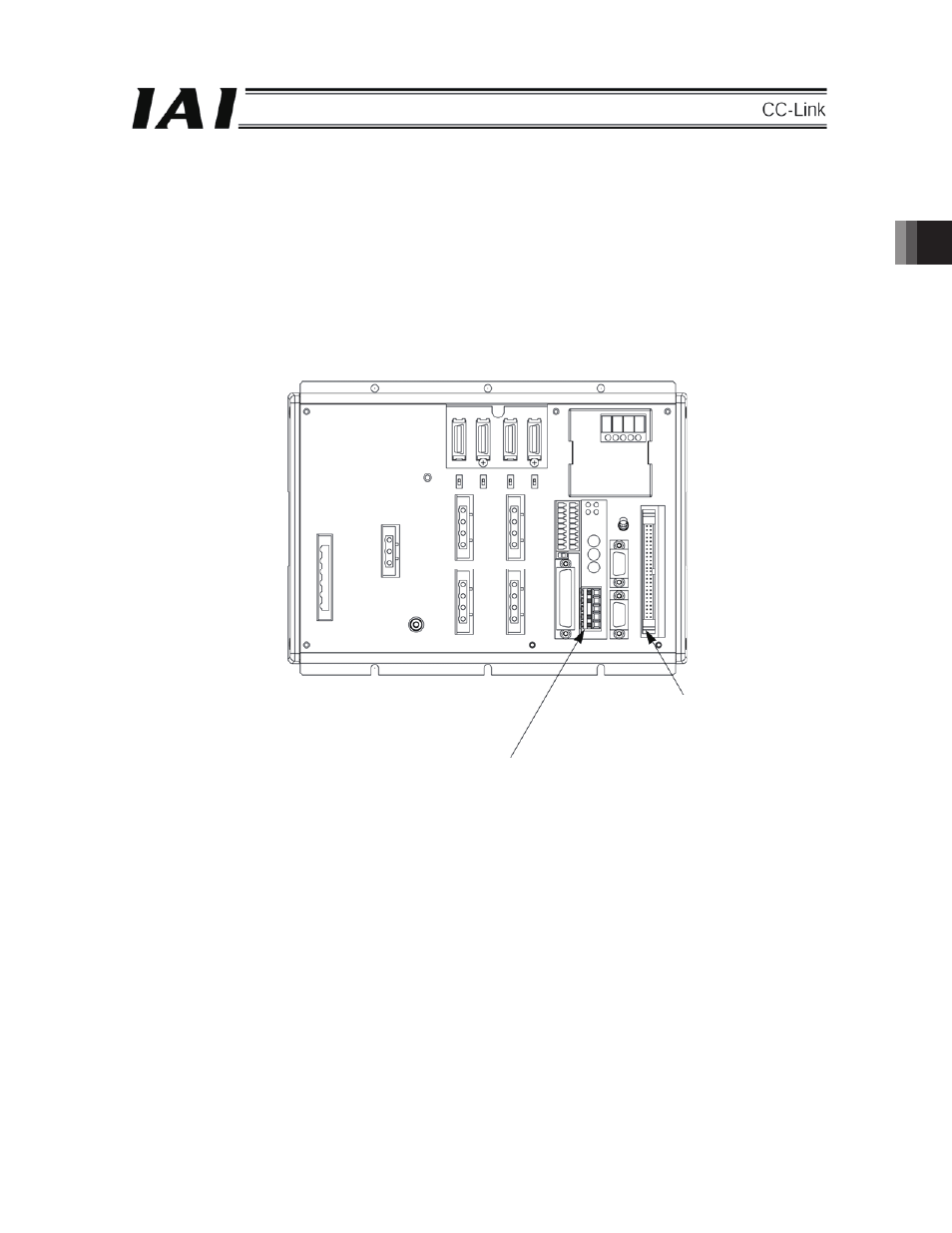

The following is the setting in the case where only 16 ports for each input and output from the first of the I/O port
are used for the CC-Link board and other input and output ports are not used as the same as the case of the
X-SEL standard I/O board (50-pin connector).
Input port No. 000 – 015
Output port No. 300 – 315
Not used
