3. X-SEL-J/K/P/Q/JX/KX/PX/QX
3.1.2 CC-Link board
(1)

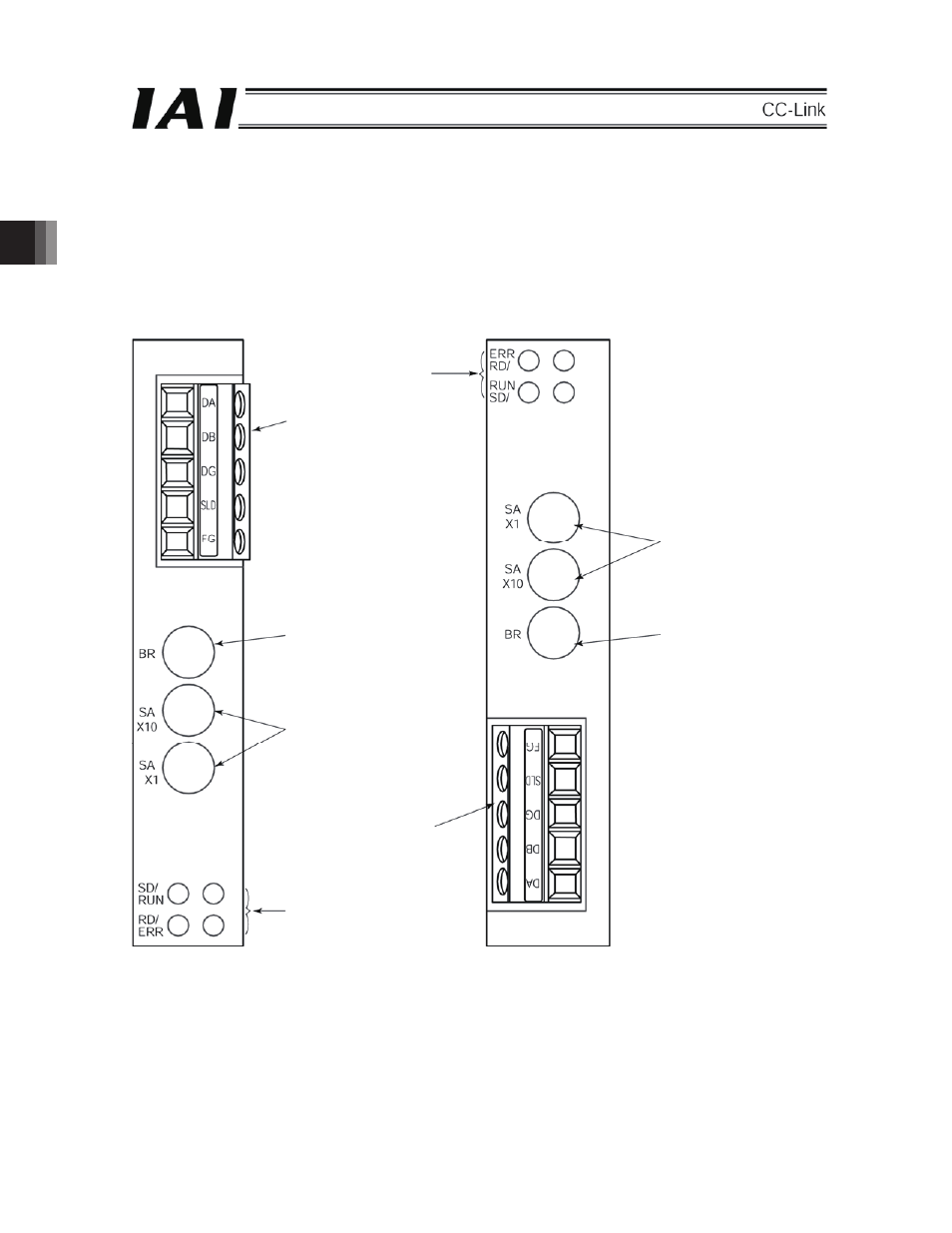

Names of each part
J/K/JX/KX type
P/Q/PX/QX type
CC-Link communications
connector
Communications speed
setting rotary switch
Station number setting
rotary switch
Monitor LED
CC-Link communications
connector
Communications speed
setting rotary switch
Station number setting
rotary switch
Monitor LED
