5. T
abletop Robot TT
Reference
Ṅ When the number of I/O points is set to 112 or more and 192 or less: two stations are occupied
Addresses in PLC are assigned to the remote I/O addresses and remote register areas that correspond to the
station number set by the rotary switch and the number of occupied stations set by the PLC parameter, in
order of port number.

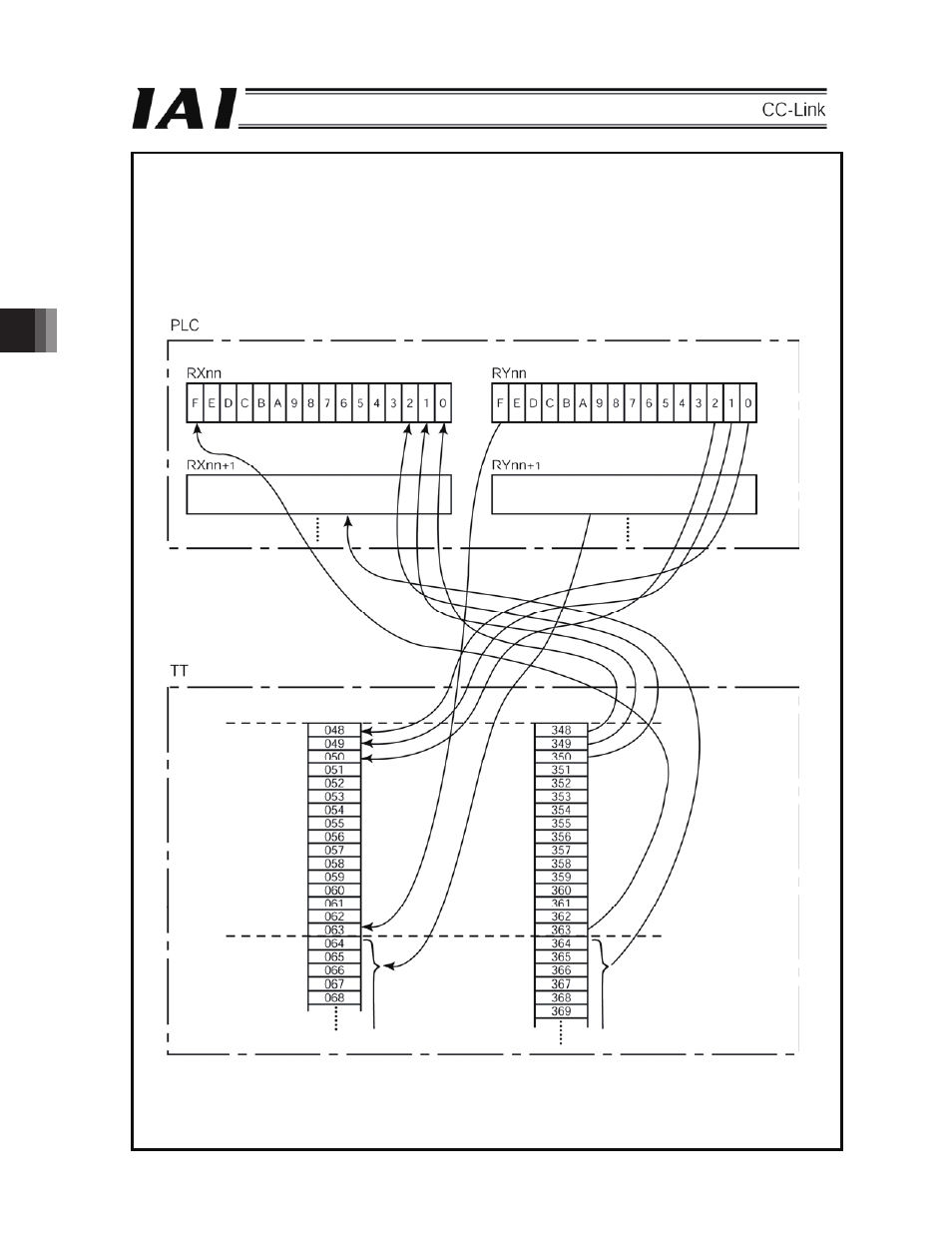

(1) Remote I/O
Xnn and Ynn are the remote I/O addresses in PLC that correspond to the station number.
The addresses of the remote I/O in PLC (RX and RY) are set to Xnn and Ynn. (Refer to “Section 9.
Communication with Master Station.”)
(Input)
(Output)
(Output)
Port No.
(Input)
Port No.
