3. X-SEL-J/K/P/Q/JX/KX/PX/QX

3.2 Remote I/O station

3.2.1 Models

The CC-Link compatible X-SEL controller handled as the remote I/O station has three types as shown below.

The single CC-Link board allows communications through 16 points each for input and output.

The model of X-SEL varies according to the installation positions and number of boards.

ṳ CC-Link board, ṯ Standard I/O board

Board installation position

No.

Controller

type

Number of

I/O points in

network

(Max input/

output)

Standard

slot

(I/O 1)

Expansio

n slot 1

(I/O 2)

Expansio

n slot 2

(I/O 3)

Expansio

n slot 3

(I/O 4)

X-SEL model

I/O slot

arrangement

1 16/16

ṳ XSEL-K-ṅ-ṅ ~ ṅ-NI-EEC-ṅ-ṅ

Fig. 3-2-1

2

32/32

(16/16

u 2)

ṳ XSEL-K-ṅ-ṅ ~ ṅ-NI-ECC-ṅ-ṅ

Fig. 3-2-2

3

K type

48/48

(16/16

u 3)

ṳ XSEL-K-ṅ-ṅ ~ ṅ-NI-CCC-ṅ-ṅ

Fig. 3-2-3

ṳ For the standard slot (I/O 1, leftmost), a standard I/O board is required.
ṳ For expansion slots, either of an expansion I/O board

(*2)

or SIO board

(*3)

is installable in addition to

the CC-Link board

(*1)

.

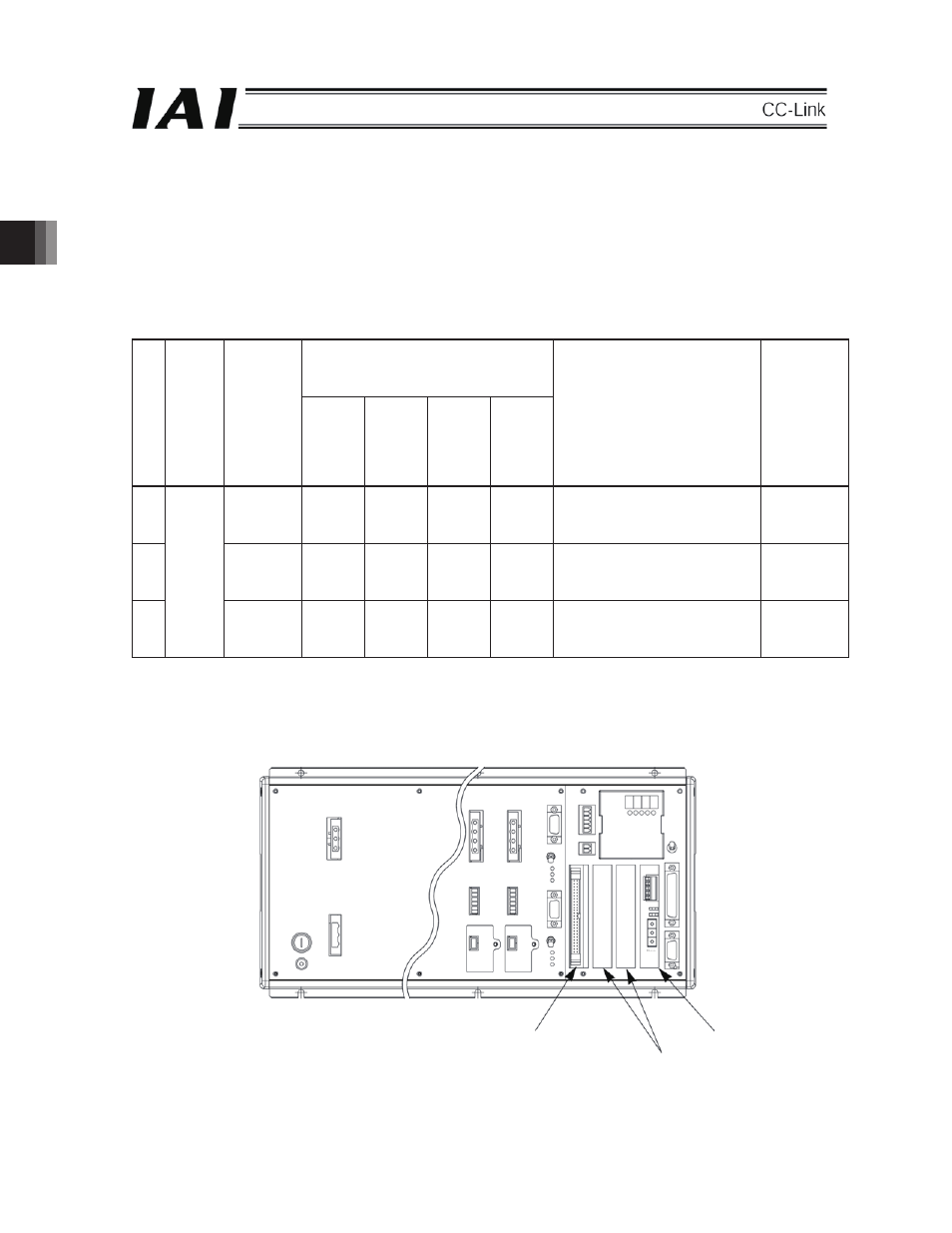

Fig. 3-2-1

CC-Link board

Standard I/O board

Expansion slots
