6. RCS-C and E-Con
Reference

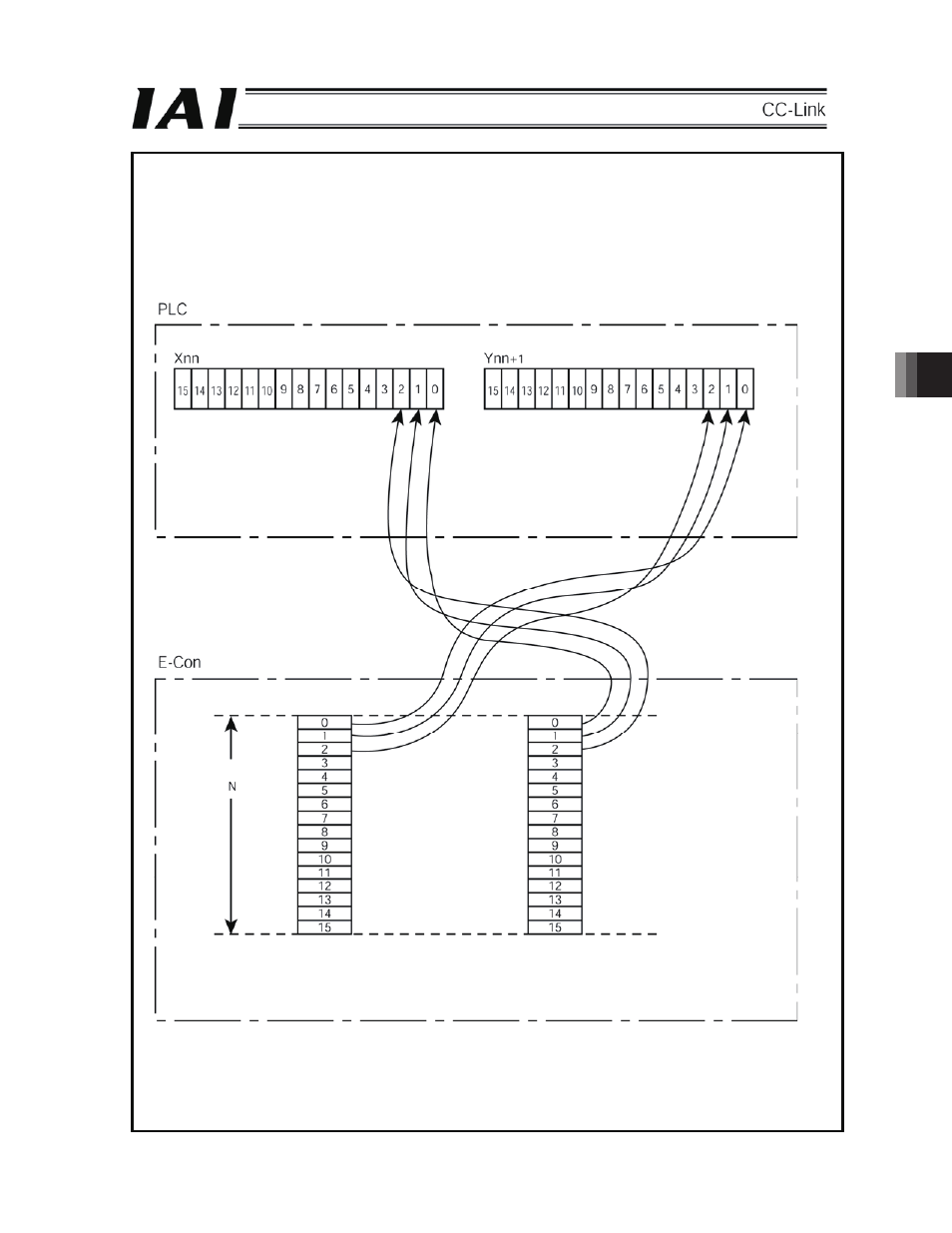

For both RCS-C and E-Con, bit addresses in the PLC are assigned to the remote I/O addresses that
correspond to the station number set by the rotary switch and the number of stations set by the PLC
parameter, in order of port number.
Xnn and Ynn+1 are addresses in the PLC that correspond to the station number N.
Since 2-word (32-point) processing is made per station in the PLC, the PLC remote I/O (RX/RY) addresses
are set to Xnn/Ynn+1.
(Refer to “Section 9. Communication with Master Station.”)
(Input)
(Output)
(Output)
Port No.
(Input)
Port No.
Station number
