25
3. X-SEL-J/K/P/Q/JX/KX/PX/QX
b.

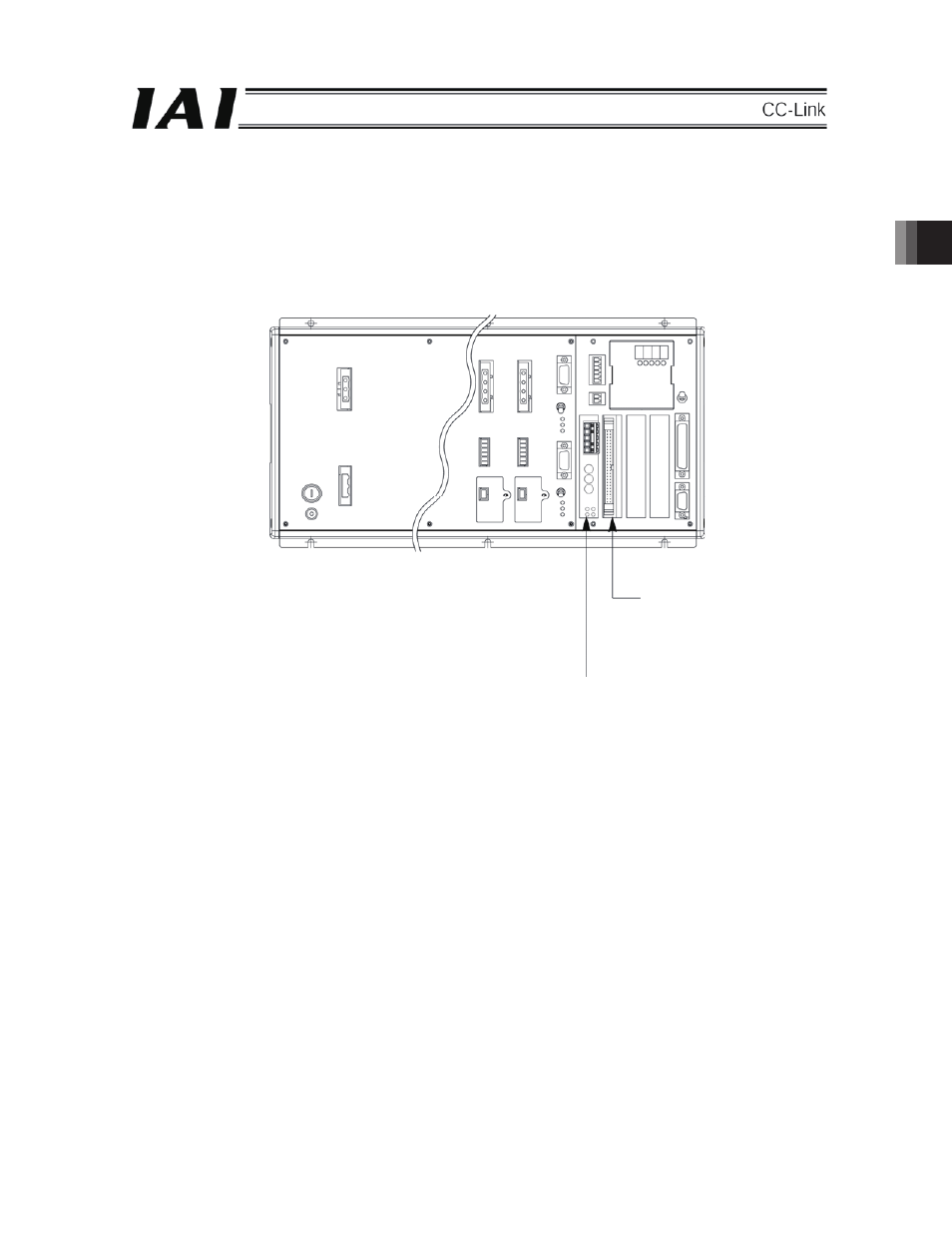

The following is the setting in the case where fixed assignment makes the expansion I/O board IA-103-X-32
(input: 32 points, output: 16 points) used as the standard I/O ports and 256 points each for input and output
assigned to the CC-Link board as the general I/O ports.
The J type has the same setting.
Input port No. 000 – 031
Output port No. 300 – 315
Input port No. 032 – 287
Output port No. 316 – 571
