21
3. X-SEL-J/K/P/Q/JX/KX/PX/QX
3.1.4 J/K type controller parameter setting examples
(1) CC-Link connection of standard I/O ports
This is a setting for the case where 16 points for each I/O port from the head of the X-SEL standard I/O port are
used other than I/O ports.

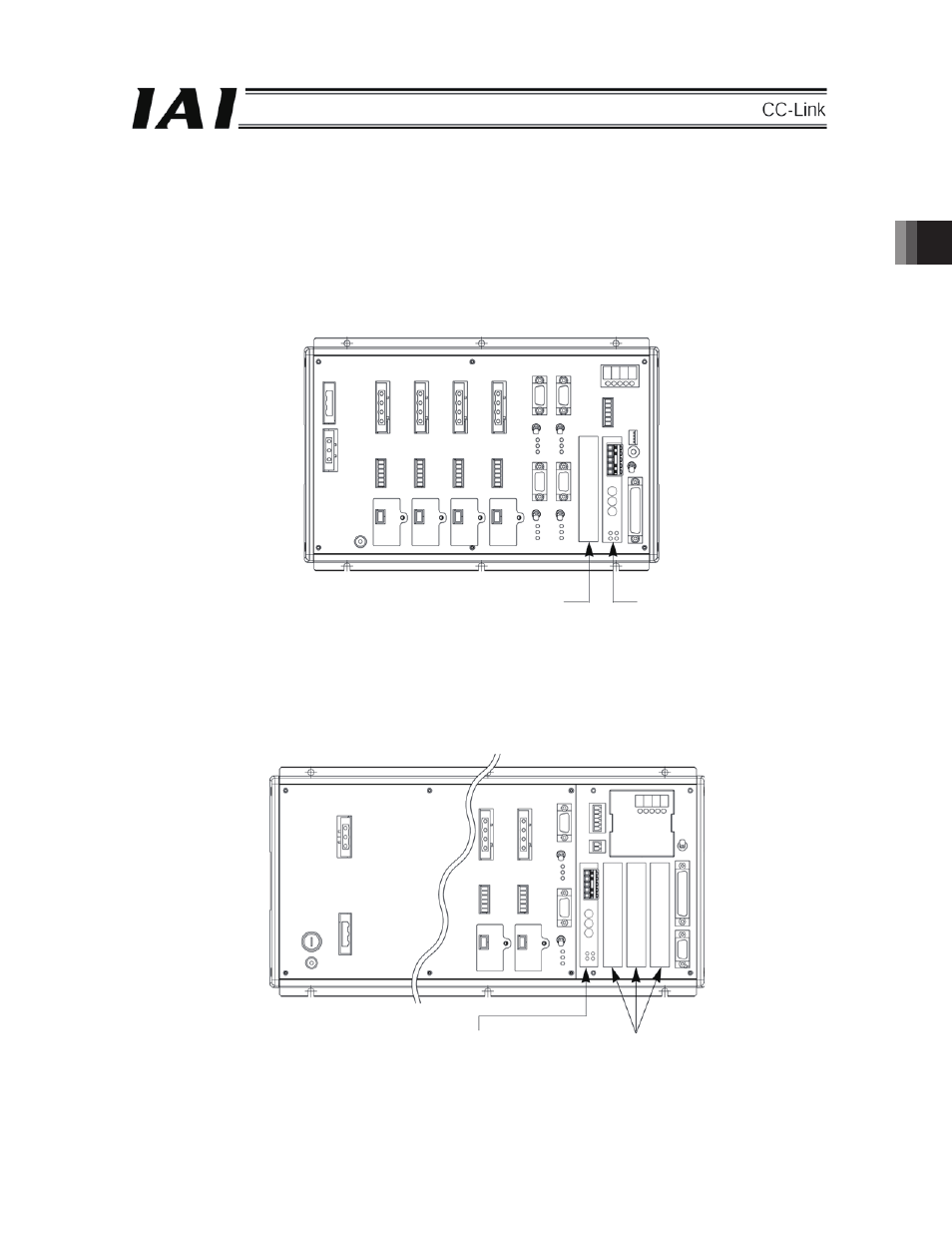

X-SEL (J type)
(The above are cases where the installation conditions as shown in Fig. 3-1-1 and Fig. 3-1-2 in section 3.1.1 are
applied.)
Input port No. 000 – 015
Output port No. 300 – 315
Not used
(None for single axis and two axes)
Input port No. 000 – 015
Output port No. 300 – 315
Not used
X-SEL (K type)
