3. X-SEL-J/K/P/Q/JX/KX/PX/QX
d.
When a standard I/O board is used as general I/O
When a standard I/O board is used as general I/O (input: 32 points, output: 16 points) with the setting of a,
the number becomes 048 for the I/O parameter No. 2, 348 for No. 3, and 1 for No. 10 in the table on the
previous page for the following assignments:

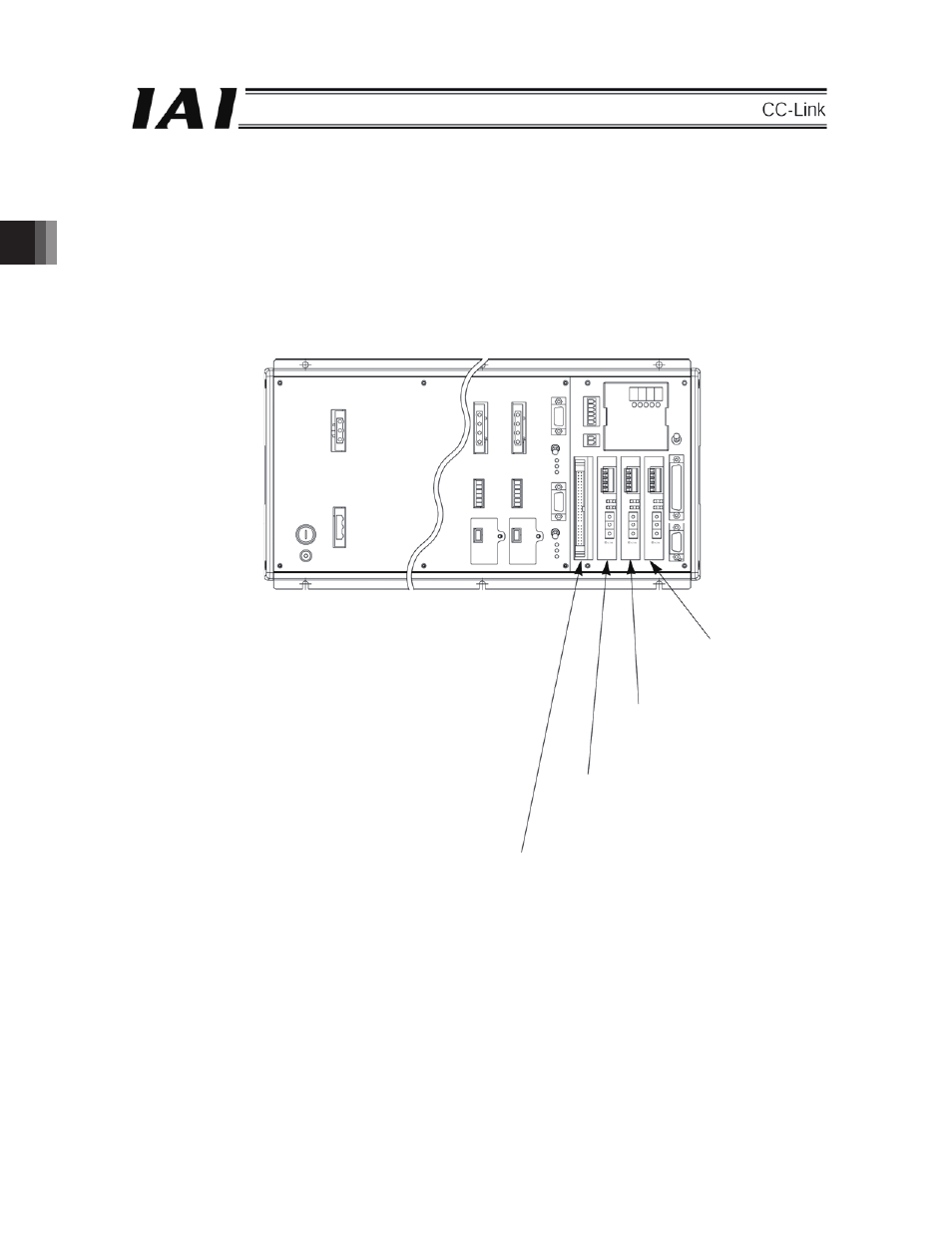

(The above is a case where the installation condition as shown in Fig. 3-2-3 in section 3.2.1 is applied.)
Input port No. 000 – 015
Output port No. 300 – 315
Input port No. 016 – 031
Output port No. 316 – 331
Input port No. 032 – 047
Output port No. 332 – 347
Input port No. 048 – 079
Output port No. 348 – 363
