3-14 How to Program the PLS

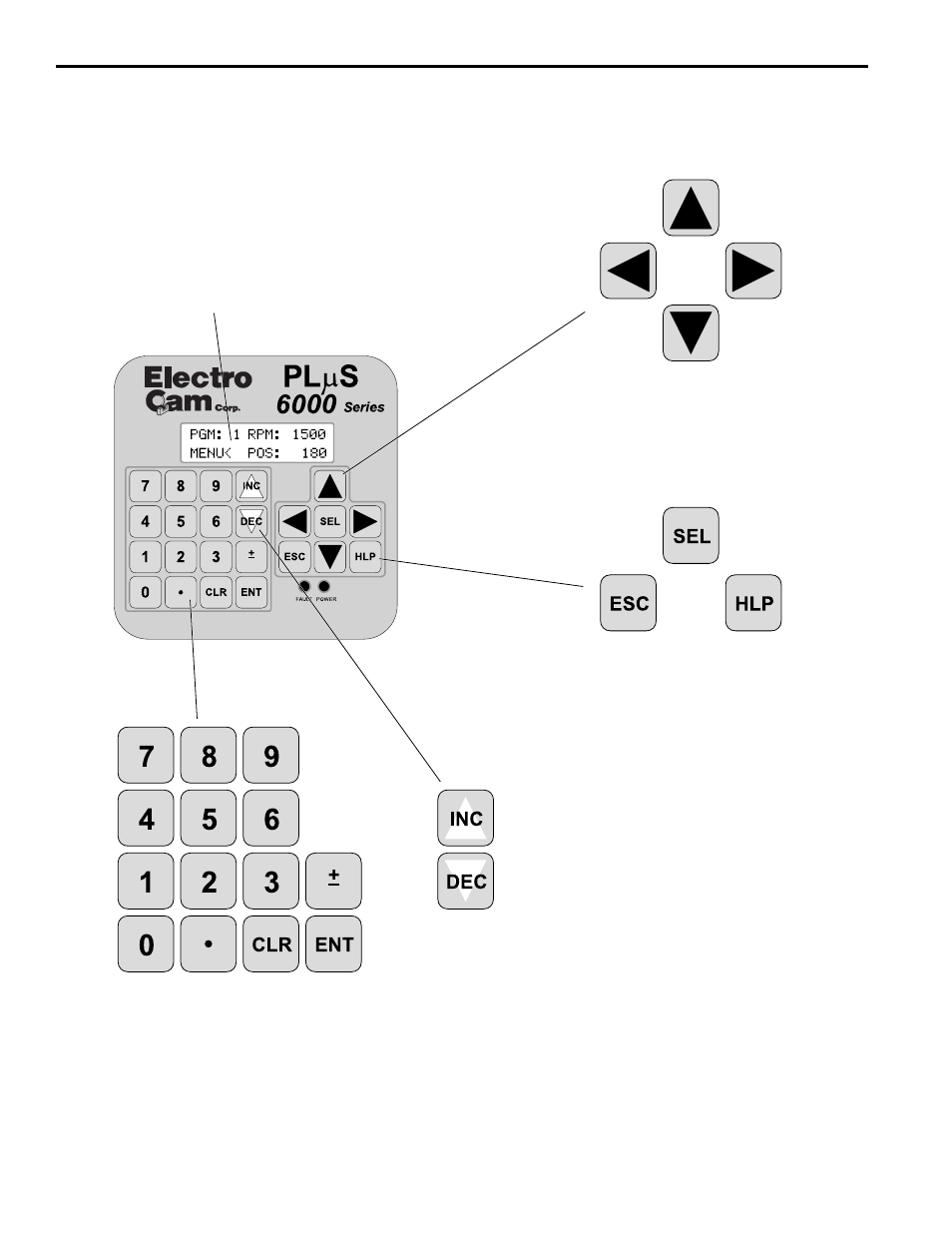

PS-6400 Keypad Overview
Cursor Keys
• Scroll through Menu Tree.
• Move around within a screen.
• Scroll through pulses.
ESC, SEL, HLP Keys
• ESC exits from current menu level to pre-
vious menu, or aborts numeric entry.
• SEL enters a new menu level; toggles a
value; and selects an output group if
multiple groups are used.
• HLP shows help regarding menu selec-
tion and what keys to press. Use this key
if unsure what to do.
Numeric Keys
• Input numeric values within a field.
• ENT must be pressed to enter the value; entry will flash until ENT is pressed.
• CLR will backspace within an entry.
•
±
will convert a positive number to a negative number, or vice versa.
INC, DEC Keys
• Increment or decrement a value within a field.
• Hold for rapid scrolling of value.
Main Screen
• Shows Active Program, RPM, Position, and
Group # (if applicable).
• See MAIN SCREEN Section for details.
• Press SEL key when cursor is on “MENU” to enter
Menu Tree and initiate programming.
