STANDARD AXLE LIFT CYLINDER REPAIR

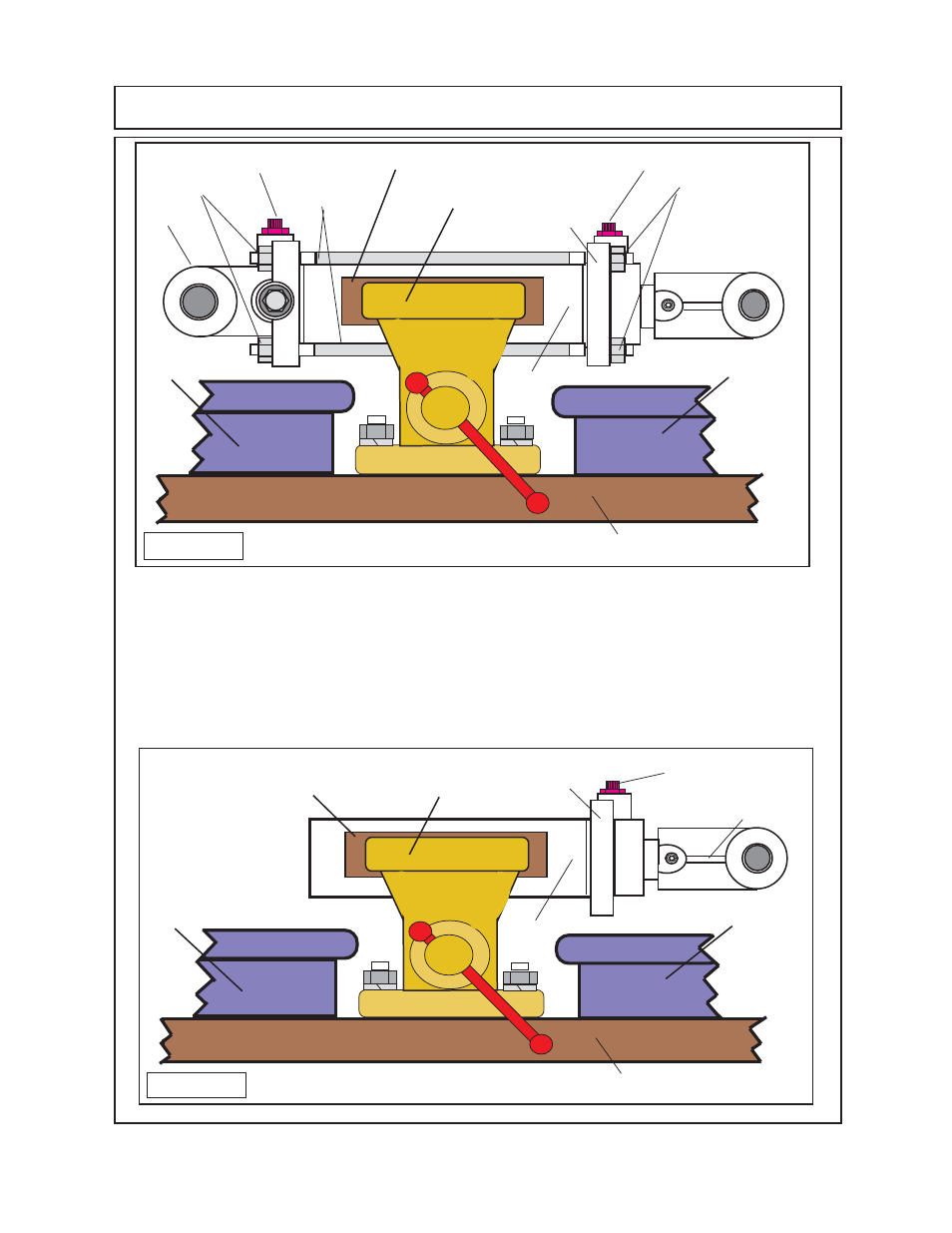

5. Remove the cylinder Base end cap (figure 2 Item 8) . To remove the cylinder base end cap use
a small brass (soft metal hammer) tap the base end cap until it slide out of the cylinder barrel (figure
2 item 5) . The base end of the cylinder will now be open (See figure 3).
6. Remove the cylinder head (figure 3 item 9) . Pull the cylinder rod out from inside barrel approx
2 inches by pulling on the cylinder rod clevis (figure 3 item 3). Using a brass (soft metal) hammer
tap the barrel side of the cylinder head (figure 3 item 9) . Cylinder head will slide out of barrel, when
the shoulder of the cylinder head comes out of the barrel, pull the cylinder clevis (figure 3 item 3) .
The cylinder rod clevis, cylinder rod, cylinder head, piston and piston nut will all pull out as an
assembly when pulled from the barrel
(see figure 4) .
