Section 7 - 5
HYDRO 15 (Service Manual) 09/06
© 2006 Alamo Industrial
Speed Increaser Service & Repair
13. Grease the splined shaft of the pump, insert it into the splined adapter in the speed increaser. The pump
should slide into the speed increaser up to the machined flange on the pump. The ridge on pump will slide into
speed increaser with out excessive force. If it will not slide together by pushing it in when the pump is aligned
with the speed increaser,
DO NOT use the pump mount bolts to force the pump into speed increaser, check
to find what is wrong preventing it from sliding together. If pump is force into speed increaser something will
be damaged.
14. If pump is just being reconnected to speed increaser and pump has not been removed the hydraulic
connections should already be connected to the pump. If the pump is being replaced and the hydraulic lines
need to be connected see the pump service repair section for hydraulic line connection instructions.
NOTE:
once the pump and hydraulic lines are connected do not start tractor until assembly has been completed, DO
NOT start tractor and engage PTO unless all hydraulic system has been connected and check. Make certain
Oil level is full and etc. SEE START UP PROCEDURE IN PUMP SERVICE REPAIR SECTION.

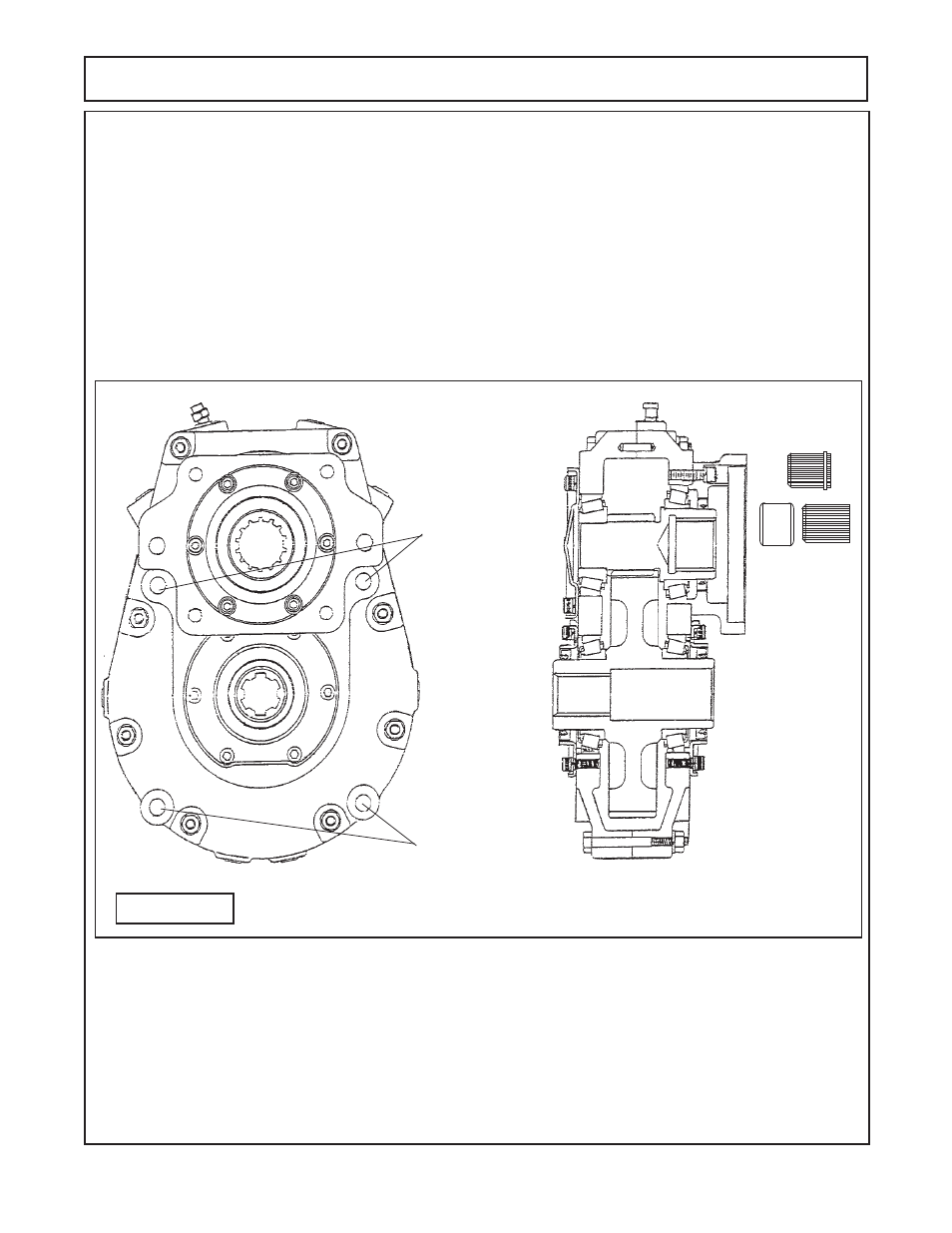

Side View
Tractor
PTO
Side
Pump
Side
Top
Bottom Pump Side View
FIGURE 3
Speed Increaser to
Tractor mounting
bolt holes (qty 4
Speed Increaser to
Tractor mounting
bolt holes (qty 4
