HYDRO 15 (Service Manual) 09/06

Alamo Industrial

Section 2 - 10

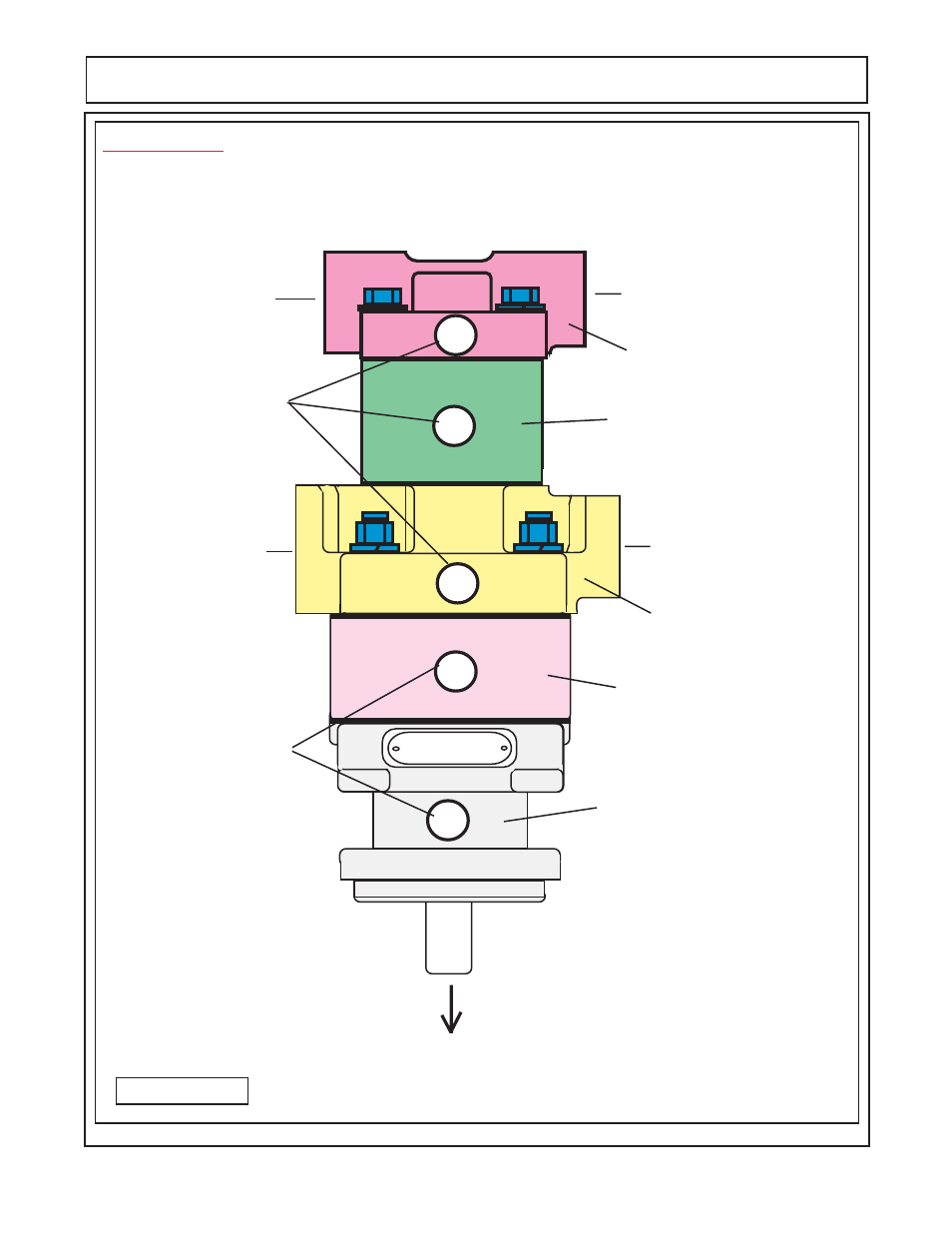

PUMP SERVICE & REPAIR

1-1/2" Split Flange
Suction (Inlet) Side

1" Split Flange
Pressure (outlet) Side

Shaft End Cover

Front Gear Housing

Port Bearing Housing

Rear Gear Housing

Port End Cover

Speed Changer

Tractor PTO

IMPORTANT !

Mark all Sections of Pump with a Number (or) Symbols that will serve as a guide to all sections

being re-installed the same way they were removed. Example: if the numbers (marks) do not line up
(1, 2, 3, 4 & 5) as they were marked, the pump is not being assembled correctly. Check this all through
the assembly process.

12345678

Figure 10A

Service Technician
Makes Alignment
Marks Here

See Figure 10

for Compo-

nent Item

Number
