PUMP SERVICE & REPAIR
Item Qty Description
1 1 Snap Ring
2 1 Bearing, Outboard
3 1 Seal, Input
4 1 Shaft End Cover
5 1 Plug
6 8 Bushings
7 4 Channel Seal
8 4 Thrust Plate
9 1 Integral Drive Shaft and Gear Set
10 4 Gasket Seal
Item Qty Description
11 8 Dowel Pins
12 1 Gear Housing
13 1 Bearing Carrier
14 1 Connecting Shaft
15 1 Gear Set (Matched)
16 1 Gear Housing
17 1 Port End Cover
18 4 Studs
19 4 Lockwasher
20 4 Nuts
21 4 Lockwasher
22 4 Bolt Figure 10
1
2
3
4
5
6
7 8
9
10
11
12
13
14
15
16
17
18
19
20
Item 5 install this side (outlet side)
11
10
8
7
6
6
7
8
10
11
11
10
8
7
6
5

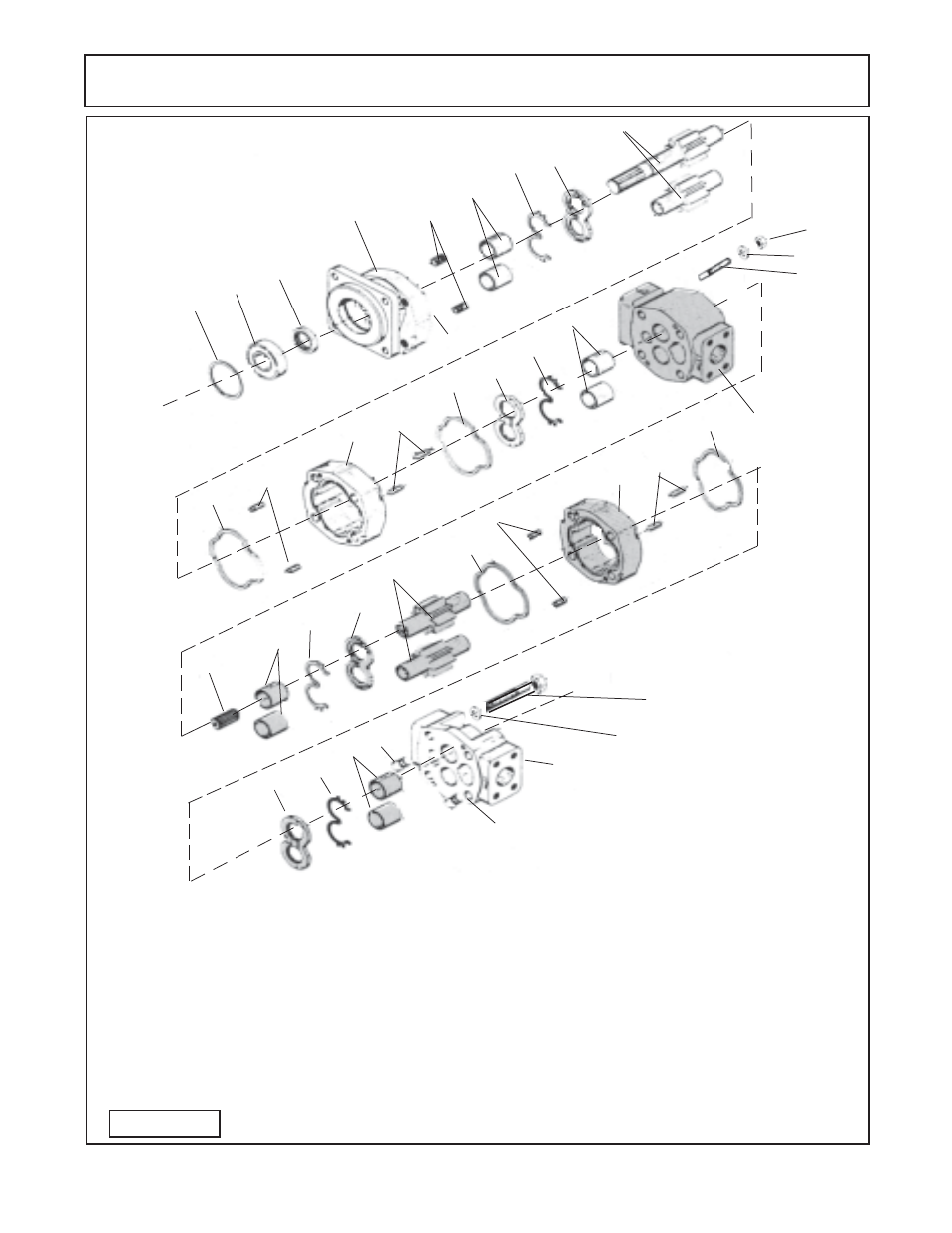

Pump Component Schematic
21
22
Item 5 install this side (outlet side)
