PUMP SERVICE & REPAIR

Item

Description

1

Tandem Pump Asy

2

Suction (Tank to Wing Pump)

3

Suction (Tank to Center Pump)

4

Pressure (Pump to Bulk Head Fitting)

5

Pressure (Pump to Bulk Head Fitting)

6

Pressure (Bulk Head Fititng to Center Motor)

7

Pressure (Bulk Head Fitting to Wing Motors)

8

Motor Asy (Center Sction Motor)

9

Return (Center Motor to Wing CoolingTube)

10

Return (Wing Tube to Center Cooling Tube)

11

Return (Center Coolingg Tube to Fiter / Tank)

Item

Description

12

Case Drain (R- Wing Motor to Cooling Tube)

13

Wing Motor Asy (R- Wing)

14

Return / Pressure (f/ R-Wing to L-Wing Motor)

15

Return (Center Cooling Tube to Filter / Tank)

16

Return Filter & Gauge (Wing Motors Return)

17

Return Filter & Gauge (Center Motor Return)

18

Return (L-Wing Motor to Cooling Tube)

19

Case Drain (L-Wing Motor to Cooling Tube)

20

Wing Motor Asy (L-Wing)

21

Return (L-Wing Tube to Center Cooling Tube)

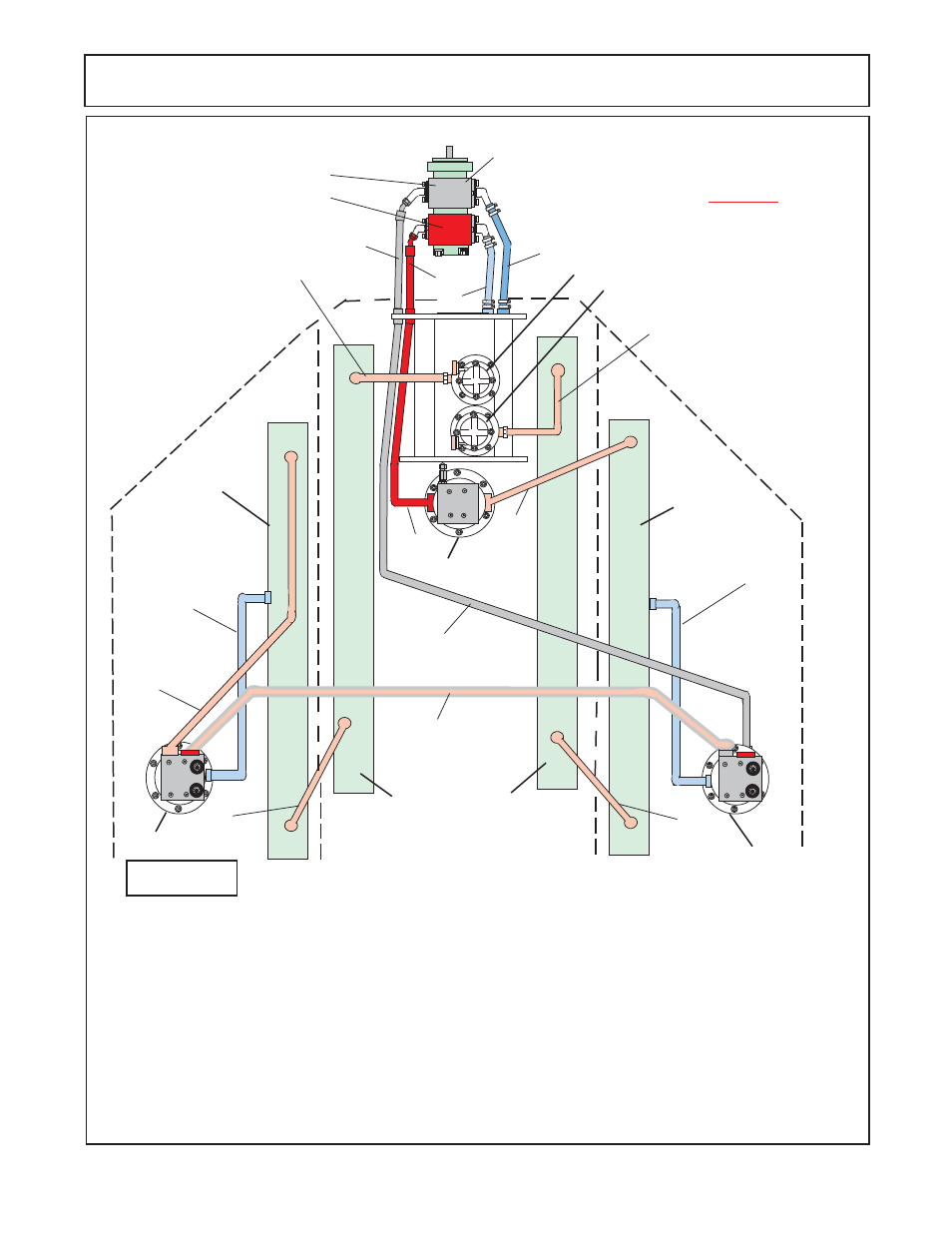

15 FT - PUMP & MOTOR HYDRAULIC SCHEMATIC

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

12345678901234567

1234567890123456789012345

1234567890123456789012345

123456789012345678901234567

123456789012345678901234567

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

123

123

123

123

123

123

12

12

12

12

12

123

123

123

123

123

123

123

1

2

3

4

5

6

7

8

9

10

11

12

13

14

18

19

20

21

15

20

21

CAUTION !

NEVER

Connect

Pump Pressure Line direct to cooling
tubes, as it will damage the tubes.

L-Wing
Cooling
Tube

R-Wing
Cooling
Tube

Center (LH & RH)
Cooling Tubes

Figure 2

Wing Supply (Front) Pump Half

Center Supply (Rear) Pump Half
