Section 4 - 9
HYDRO 15 (Service Manual) 09/06
© 2006 Alamo Industrial

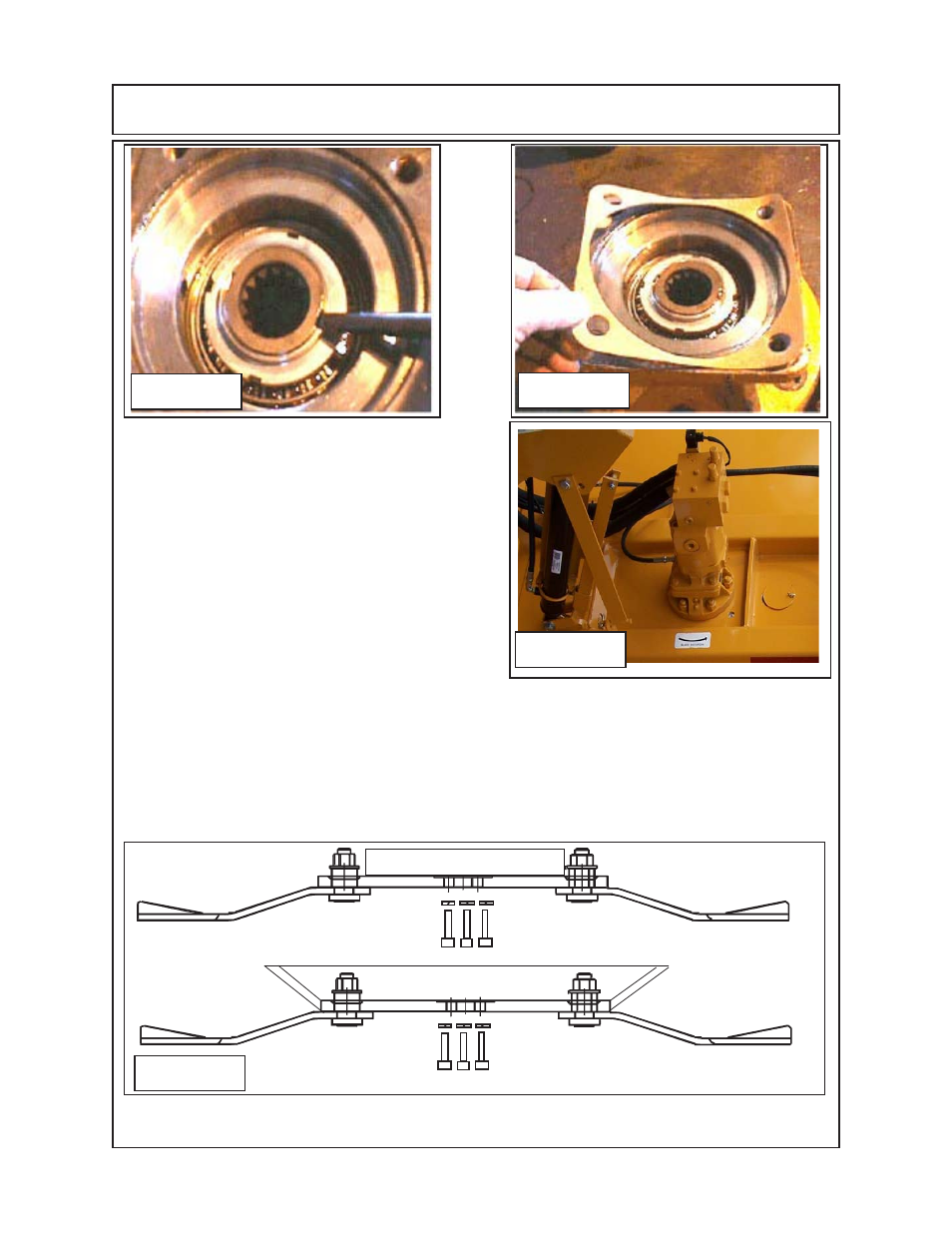

Figure 30 Figure 31
SPINDLE ASSEMBLY - SERVICE & REPAIR
14. Install the spindle to the mower deck to where the
fill plug and vent plug are pointing to the rear or the
front of the mower, this should allow easy access to
the plug for service
(figure 32).
15. Make certain a new gasket has been in stalled to
spindle Re-Install the motor onto the spindle making
certain that the motor is facing the correct direction
and none of the hoses are twisted or kinked
(figure
32).
BLADE CARRIERS:
1. There are 2 blade carrier options, Blade Bar or
Blade Pan (figure 33). The carrier are bolted to the
Figure 32
of spindle with 4 socket head bolts. these bolts length are to be used with a particular carrier option.
ALWAYS use the same length and quality bolt that was removed when changing bolts. Damage will
result if wrong bolts are used , refer to the replacement parts manual for correct bolt numbers to match
the carrier option being used.
2. Install the blade bar or pan using the correct 4 bolts & lockwashers. Use a suitable locktite on
the bolts. Torque the bolts to 400 ft. lbs. using a progressive torque and staggered tightenin pattern
(figure 33) .
Pan Carrier
123
123
123
123
123
123
12
12
12
12
12
12
12
12
12
12
12
12
Bar Carrier
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
Figure 33
