HYDRO 15 (Service Manual) 09/06
© 2006 Alamo Industrial
Section 10 - 6
Leveling Wings - Service & Repair
Leveling Wings L to R:
There are two different system for lifting of the
wings, the standard mechanical turnbuckle and the
optional level lift hydraulic cylinder system. leveling
the wings should be done only after the mower has
been leveled front to rear.
1. Leveling the mechanical turn buckle axle
lift system. This is done by lengthening or short-
ing the mechanical turnbuckle
(figure 10) . Mea-
sure to the ground at the inner rear edge of the
top deck of wing, and adjust the turn buckle until
the top deck is the same height at the outer
edge. Dos this on both wings and mower should
be level across left to right.
2. Leveling the optional hydraulic level lift (fig-
ure 11) is done by the cylinders. The cylinders
are connected together and move together.
This system will level the wings themselves if
they are connected and the air is bleed from
them. See the hydraulic axle level lift in a previ-
ous section of the service manual for operating
instructions.

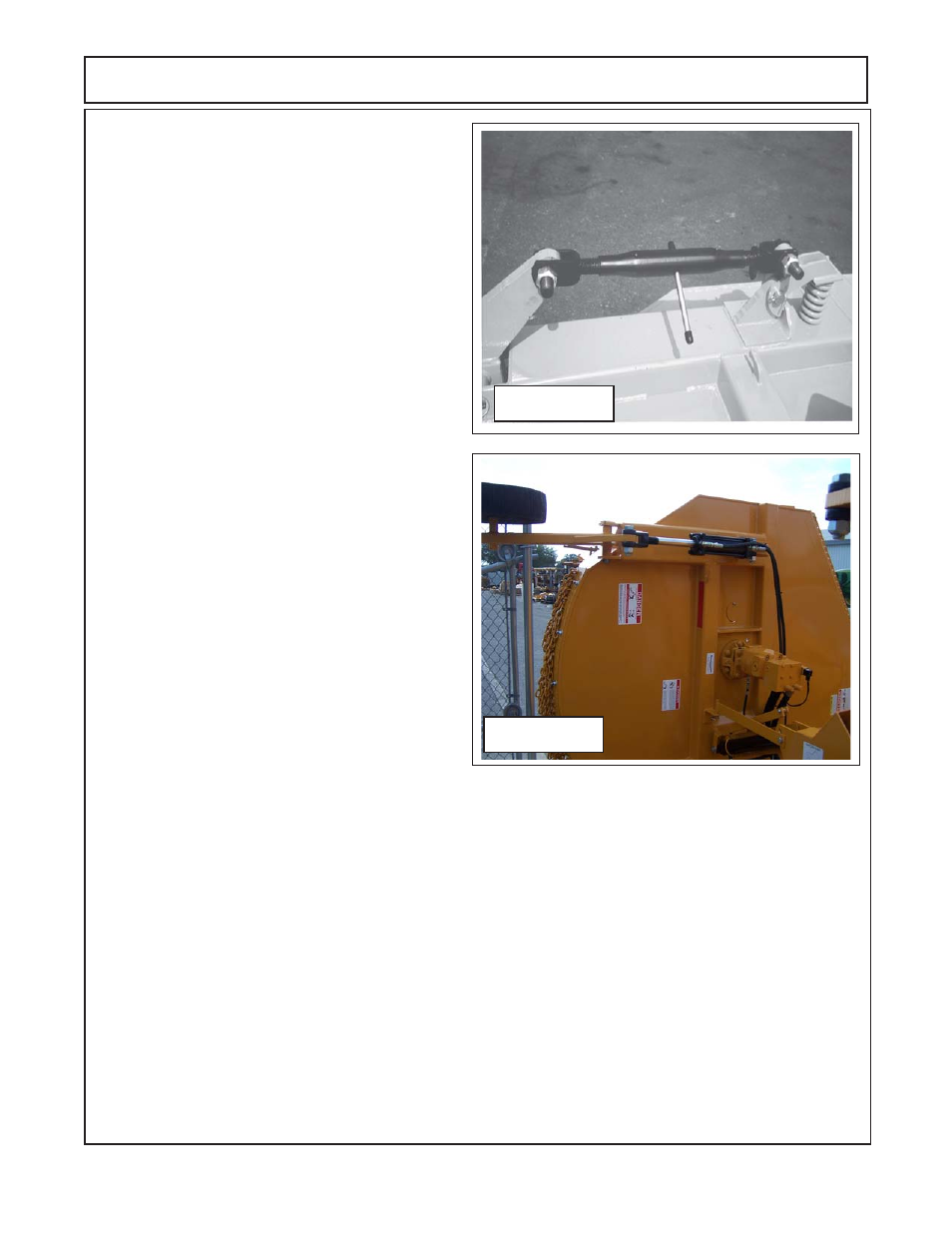

Figure 10
Figure 11
