HYDRO 15 (Service Manual) 09/06
© 2006 Alamo Industrial Section 4 - 4

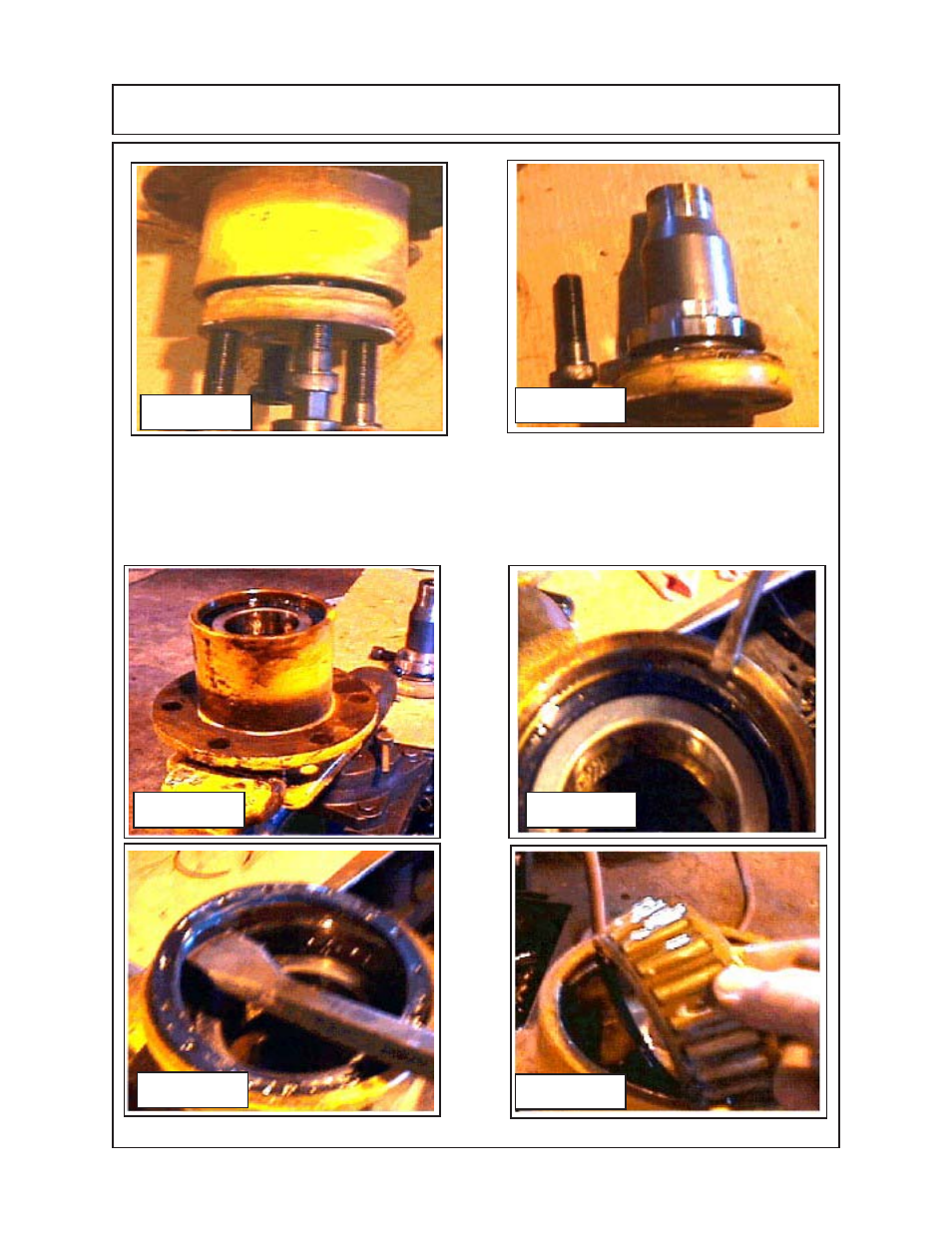

8. Place the housing in a suitable vise with the motor flange facing down as shown. (figure 10).
Use a flat blade screwdriver to remove the seal retaining ring. (figure 11).
9. Pry out the lower seal. BE CAREFUL NOT TO DAMAGE THE SPINDLE HOUSING.
A new seal is required for rebuild of the spindle . (figure 12) . Remove the bearing and check it for damage
or excessive wear (figure 13) .
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
SPINDLE ASSEMBLY - SERVICE & REPAIR
