4-11 Dynamics Side-Chain Linking
(SC FM G1)
(SC FM G1)
(SC FM G1)
(SC FM G1)
(SC TO G1)
(SC TO G1)
(SC TO G1)
(SC TO G1)
4-11-2 Dynamics Side-Chain Busses 1-4

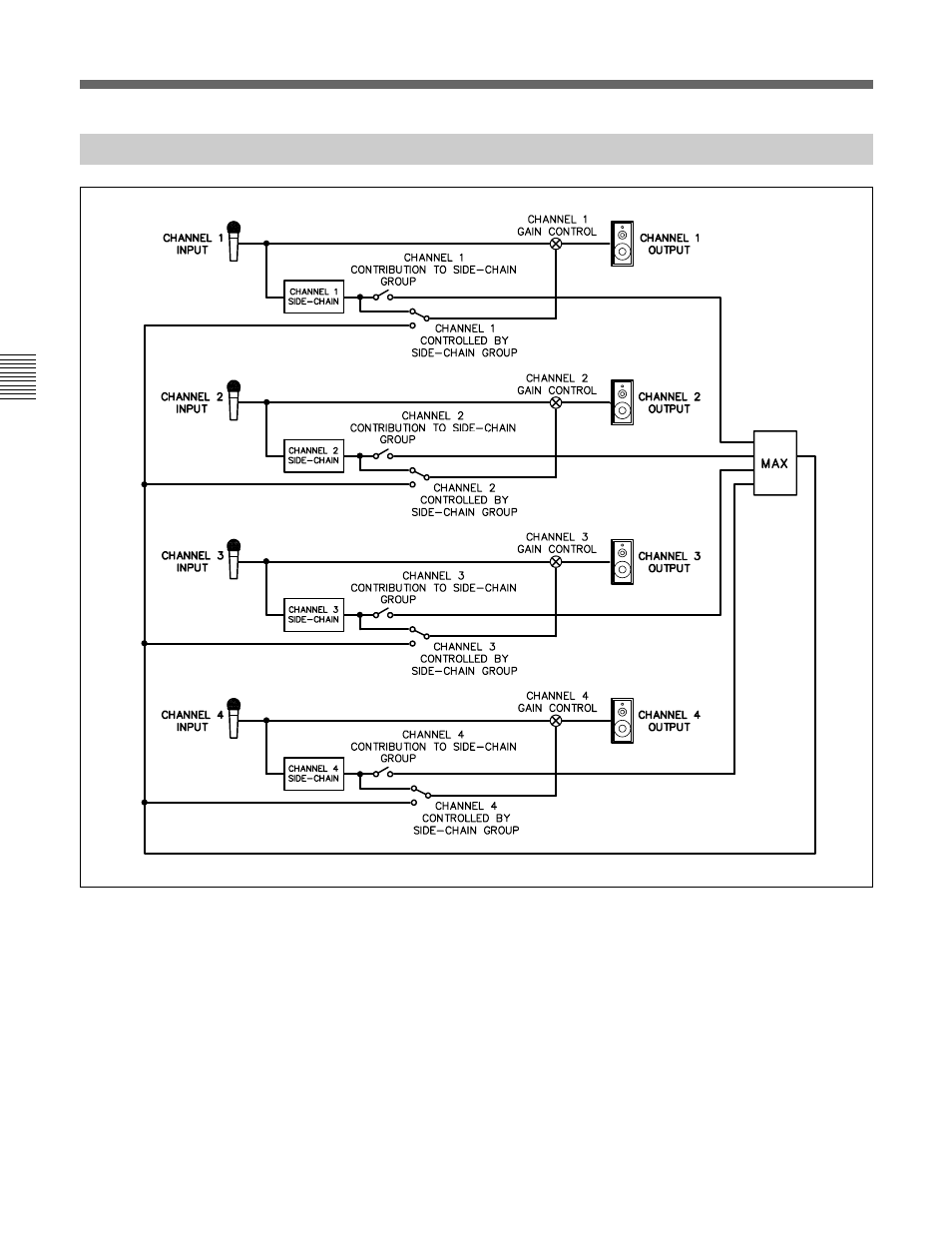

Block schematic to illustrate the switching for Dynamics Side-Chain Bus 1
Dynamics Side-Chain Busses 1-4 in general
This function allows any channel to feed its Side-Chain Control Signal to
any one of four Side-Chain Busses. Any channel can also take its Side-
Chain Control Signal from any one of the four Side-Chain Busses. There
is no limit to the number of channels accessing the Side-Chain Busses.
For a given set of channels linked to an individual Side-Chain Bus, the
channel generating the largest Control Signal will accurately control the
rest of the channels
