Chapter 5 Control Screens
5-5
Chapter 5 Control Screens
5-2 Channel Screens
5-2 Channel Screens

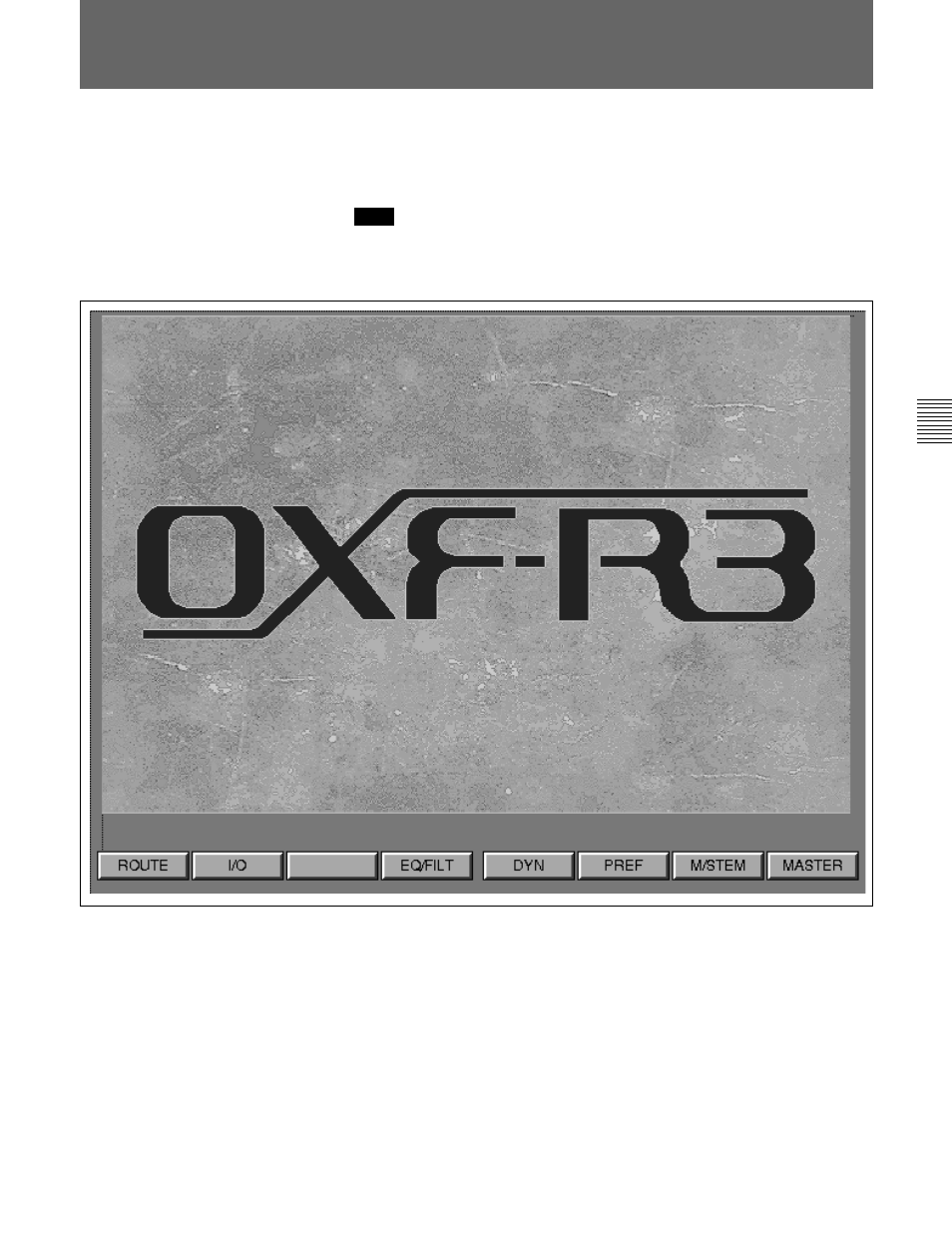

OXF-R3 Logo Screen (TOP)
The OXF-R3 logo screen has softkeys to the other Channel Screens as
follows:
• ROUTE - Multitrack and Channel Output Routing GUI
• I/O - Channel Input & Output Assignments GUI
• EQ/FILT - Equaliser and Filters GUI
• DYN - Dynamics GUI
• PREF - Preferences GUI
• M/STEM - Multi-Stem GUI
• MASTER - Master Output Assignments GUIs (inc. SSGs & Sends)
To return to this screen at any time, select TOP from any other screen.
Note:
The Channel Screens in general
Six LCD Channel Screens are provided on the OXF-R3 control surface,
three either side of the centre section.
Each Channel Screen can display any of the functions described. The softkeys
below the channel screens give access to other functions. To select these
functions, either click on the softkey or press button below the screen.
