4-13 Multi-Stem Set-up
General
The two Fold-Down GUIs allow control of the levels for the fold-down of
signal sources, when an output is derived from another which has a greater
number of outputs. As an example, the Main Output Bus is set up for a 5.1
output and a Stereo Output is required simultaneously, or a Stereo version
must be listened to for compatibilty checking.
Operation

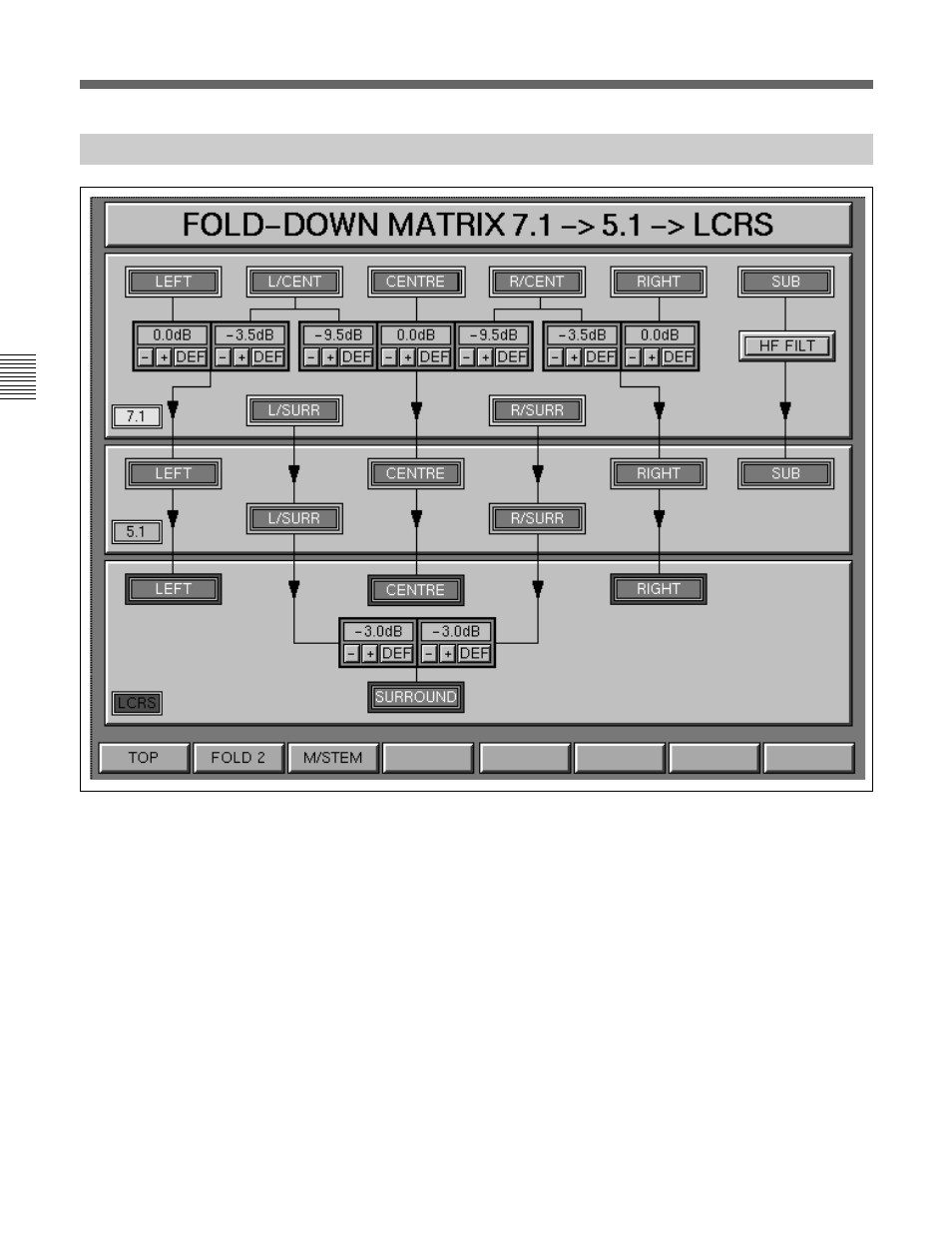

Each Fold-Down destination in the GUIs has a “control module” for each
source. For example, when deriving 5.1 from 7.1, the 5.1 LEFT input is
being fed from the LEFT and L/CENT of the 7.1 with a level control
module for each.
Levels can be set in two ways:
• Click on {DEF} to set the Default values.
• Click on { + } and { – } buttons to set levels manually.
4-13-6 Fold-Down Matrix GUIs
