3-10
Chapter 3 Getting Started
Chapter 3 Getting Started
3-3 Assignable Channel Processing
Input Channel & Inserts, Equaliser and Filters panel
The Input Channel section is much more flexible than a conventional in-
line analogue channel strip in that it allows processing elements to be
configured in almost any order. The eight boxes towards the bottom of the
panel enable up to eight functions to be placed in each channel path with
individual IN switches. The order of the processes can be totally different
on every channel, as desired.
The 5 Band Equaliser and High & Low Filters sections are independent
and can be assigned separately within the channel signal path. To view
parameters and curves whenever EQ and Filters are in use, access the EQ
page available on the channel screens.
Various EQ options are available which are selected using the { IN } and
{ + } / { - } buttons situated in the upper middle section of the panel.
MIC
M/T
LINE GAIN
O
IN
FREQ
LF
FREQ
FREQ
LF
SLOPE
Q
LMF
INPUT CHANNEL & INSERTS
IN
IN
IN
IN
IN
IN
IN
IN
Q
EQUALISER & FILTERS
Q
IN
FREQ
MF
A B
IN
Q FREQ
IN
FREQ
HF
HMF
IN
IN
Q
FREQ
HF
SLOPE
X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X
X X X X X X X X
X X X X X X X X
X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X

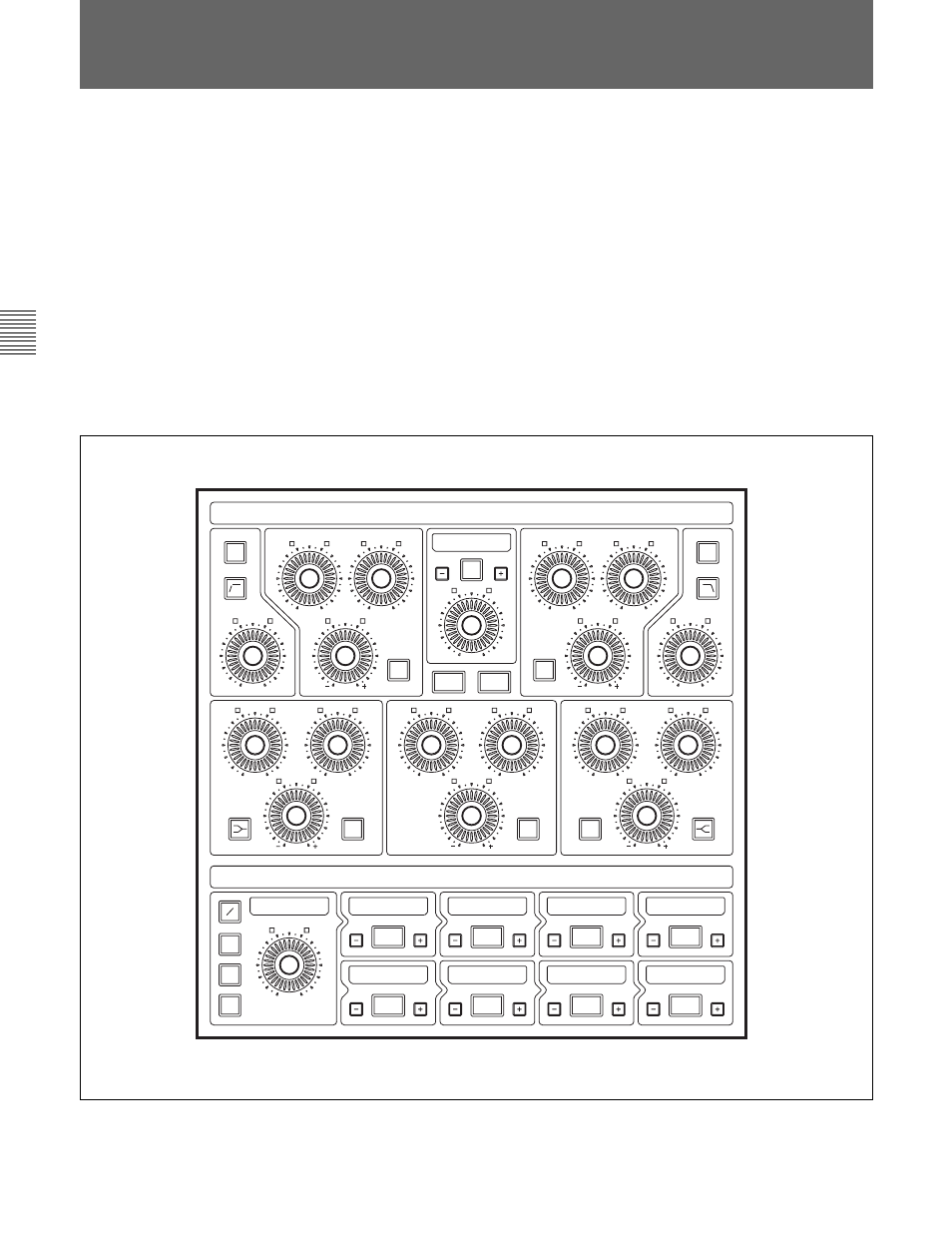

3-4 Input Channel, Equaliser and Filters
