6-3 Central Section Panels
1
4
7
!™
!£
!¡ 0 9 8
6
5
3 2
!¢
!∞
!§
!•
!ª @º
!¶

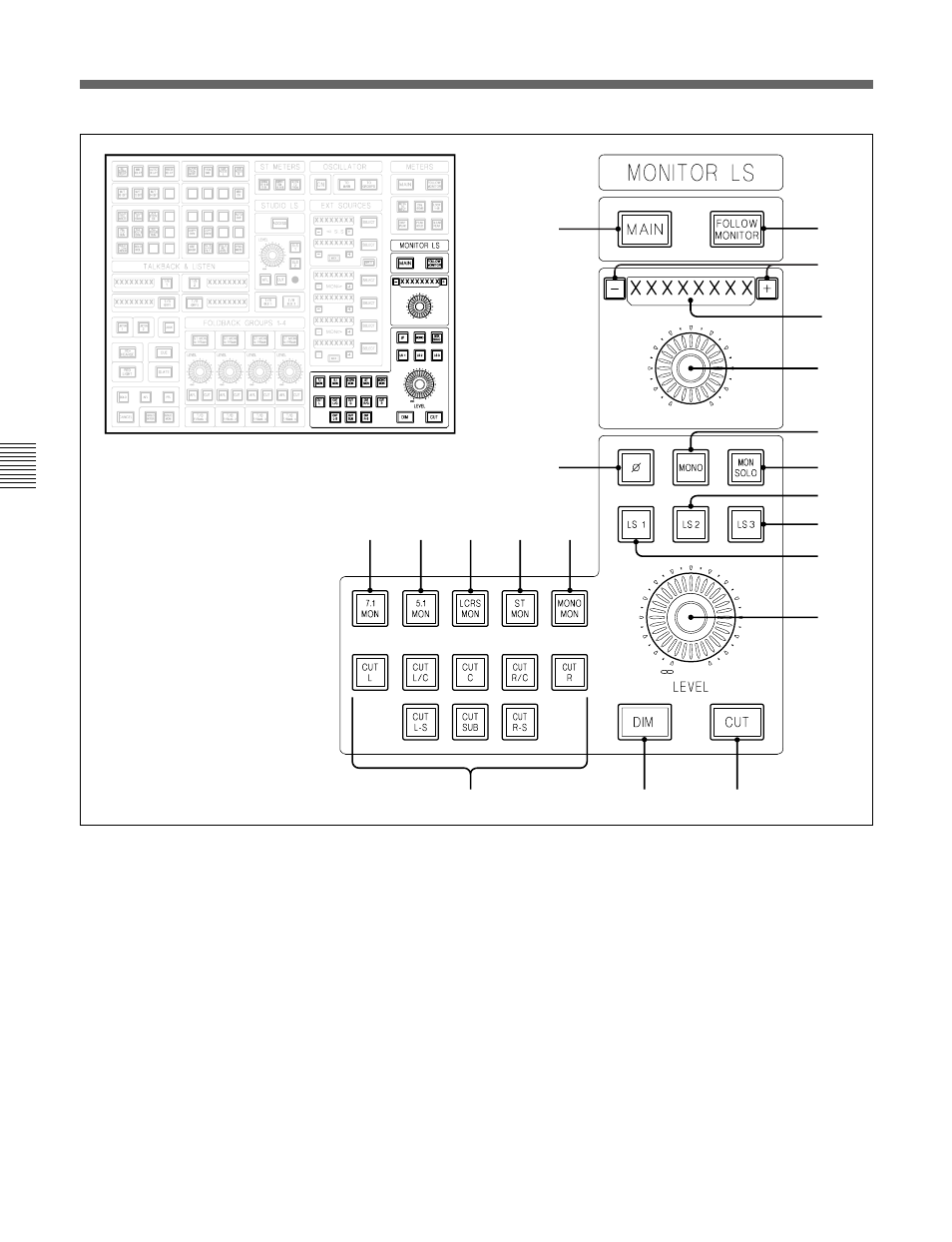

CR MONITOR Section
1 LEVEL Knob
Controls the level to 3 sets of Monitor LS, the LS1 (main set), LS2 and
LS3. LS1 and LS2 are surround outputs, up to 7.1, and LS3 is stereo.
2 DIM Push-Button
Dims all Monitor LS outputs according to the dim level setting. Set on
automatically when Oscillator {ON} button is selected, but can be turned
off manually.
3 CUT Push-Button
Cuts all Monitor LS outputs simultaneously.
4 CUT L – CUT R-S Push-Buttons
Individual Monitor LS Cuts.
