Chapter 3

Getting Started

3-15

Chapter 3 Getting Started

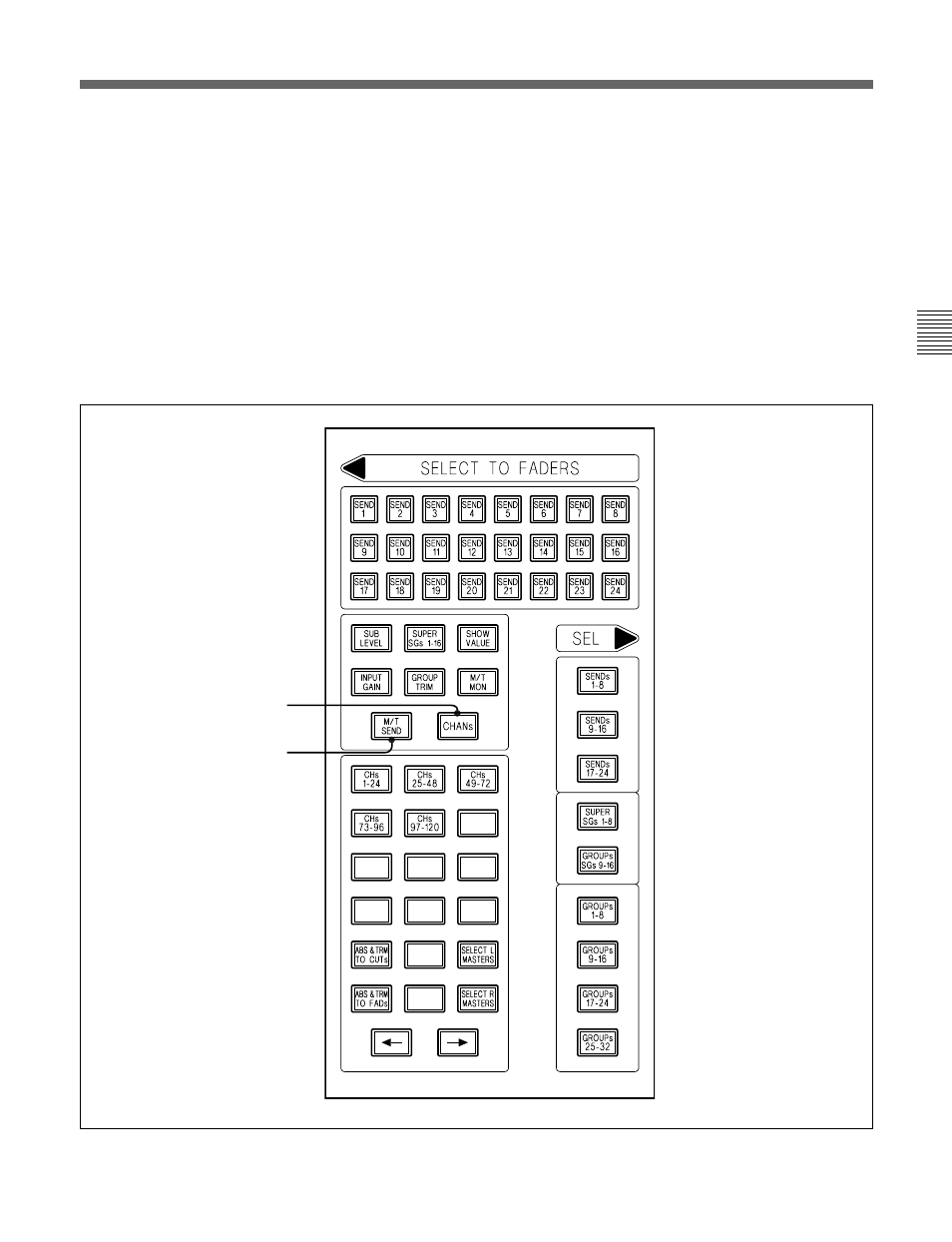

Select To Faders panel layout

As an example, on the SELECT TO FADERS panels, adjacent to the
channel faders on either side of the centre section, there are buttons
marked:

1

1

1

1

1

{CHANS}

{CHANS}

{CHANS}

{CHANS}

{CHANS}

2

2

2

2

2

{M/T SEND}

{M/T SEND}

{M/T SEND}

{M/T SEND}

{M/T SEND}

The default is {CHANS} , which assigns the faders to the channel outputs
when they control the level to the Main Output Bus. Selecting M/T SEND
is equivalent to selecting the ‘small fader’ function to the OXF-R3 faders.
The combined use of Fader Paging and the Select to Faders functionality
allows control of all channel level functions, using the 48 conveniently
placed, high quality faders in the left and right channels sections.

1

2
