5-2 Channel Screens

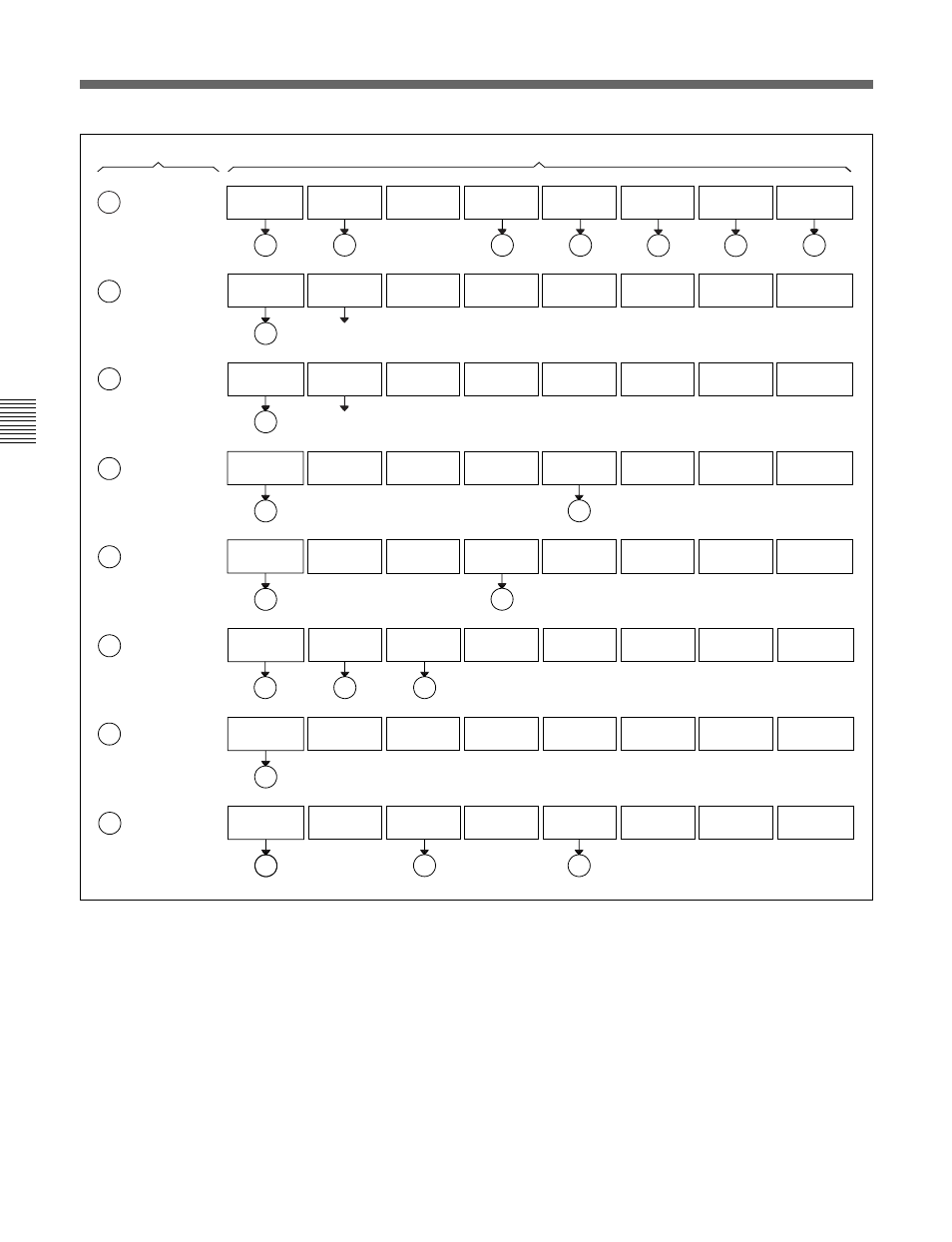

Channel Screens hierarchy, 1st level
All the console input and output assignments can be set and displayed on
the channel screens. They include MIC, LINE and M/T Inputs, INSERT
Sends and Returns. The MASTER GUI is used to assign all bus outputs,
Monitor LS and External Source inputs.
GUIs related to EQ, Filters and Dynamics allow their transfer curves to be
displayed.
Preference pages allow ‘real’ labels, such as MIC 1, to be set for I/O.
Each category of I/O has a page that allows custom electronic scribble
names to be specified, which appear in the naming pop-ups.
