Chapter 6

Technical Descriptions

6-49

Chapter 6 Technical Descriptions

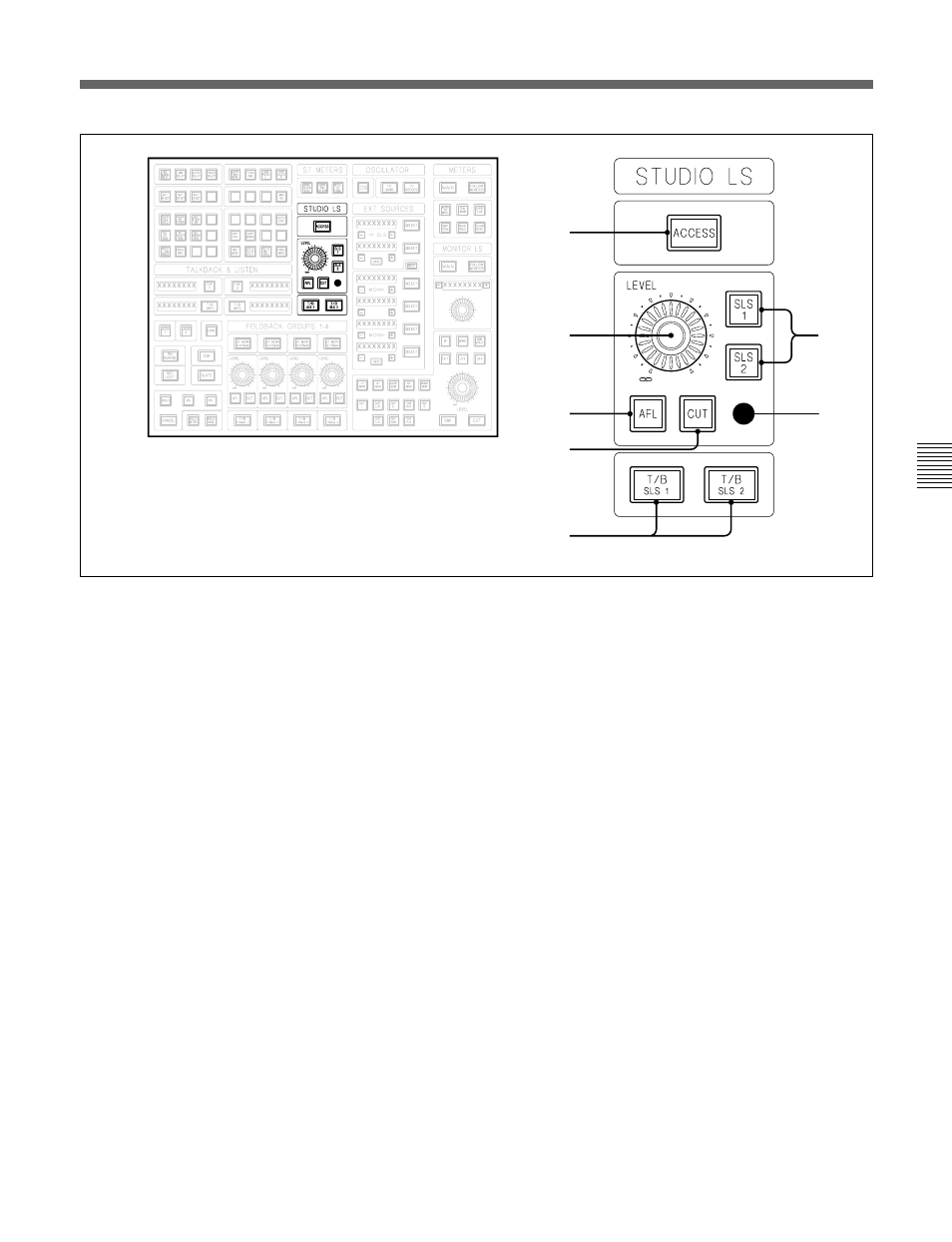

Studio LS

This section allows control of 2 pairs of Studio LS. The source selection
for the Studio LS has been described in the previous section.

1 LEVEL Knob
Controls the level to the 2 stereo Studio LS outputs.

2 SLS1 and SLS2 Push-Buttons
Allow the two Studio LS outputs to be switched on individually.

3 AFL Push-Button
Sends After Fader Listen (AFL) signal to CR monitor LS regardless of the
status of SLS1 and SLS2 push-buttons.

4 CUT Push-Button
Mutes SLS regardless of status of the SLS1 and SLS2 push-buttons.

5 T/B SLS1 and T/B SLS2 Push-Buttons
Allows talkback to be fed to SLS1 and SLS2 individually.

6 Talkback Microphone

7 ACCESS Push-Button
Not operational in this version.
