Chapter 6 Technical Descriptions
Pre Fader headphones feed
The example below illustrates an in-line channel set up at the Input
Channel & Inserts panel. The right hand window in the Sends panel has
Send 1 selected. The left hand window shows the source as -8- for Send 1.

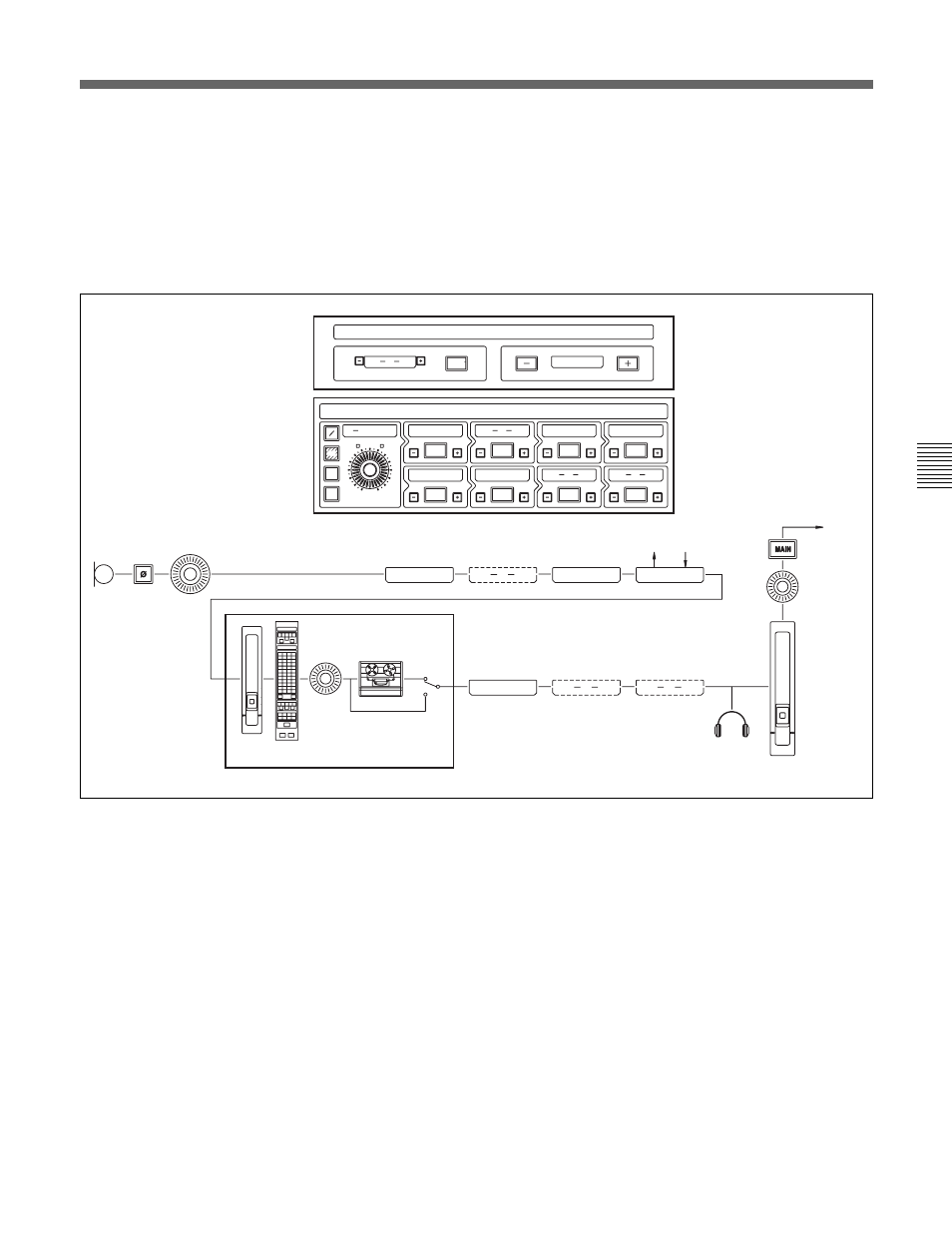

The block schematic illustrates how this set-up is equivalent to a pre fader
send on a conventional in-line console, useful for headphone feeds to
Foldback outputs.
Send 1 - Pre Fader headphones feed for Foldback
