The Channel Meter sources are set automatically according to the
functions in use in the channels.
4-10-1 Channel Meter Default
The fire-up default for the Channel Meters is pre fader as illustrated in the
following diagram. This is denoted on the OXF-R3 by the red ‘C’ legend
at the top of the Channel Meters.

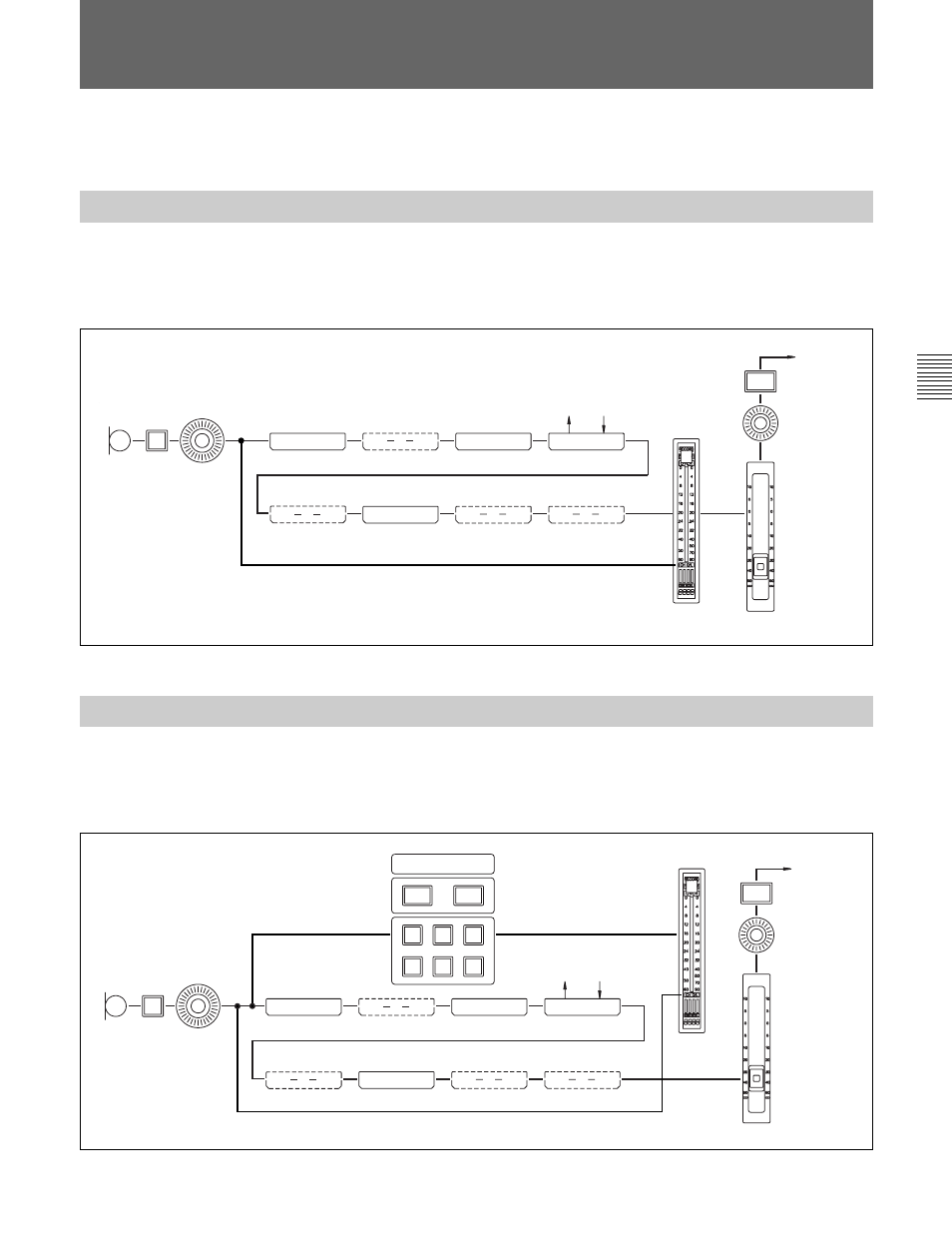

Channel metering – Default
4-10 Channel Metering
4-10-2 Channel Meters to Input
Selecting {MTRs TO INPUT}, at the METERS selector in the centre section
monitor panel causes the channel meters to monitor the audio level in the
digital domain, post the channel input gain control stage.
Channel metering – Channel Meters to Input
