Chapter 6 Technical Descriptions
6-37
Chapter 6 Technical Descriptions
Post M/T Send Fader headphones feed
To change the previous set-up to post multitrack send fader, simply toggle
the SOURCE window to MTSEND. The {SELECT} will light indicating a
new selection is available. Press it to invoke the new source point.
This action rearranges the schematic as per the illustration below.
This flexible set-up procedure allows each Send to be sourced from any
point in the channel signal path. Once a useful set-up has been created, it
can be copied to other channels or saved in a Snapshot to be recalled later.
Procedures for these functions are described in Chapter 7.

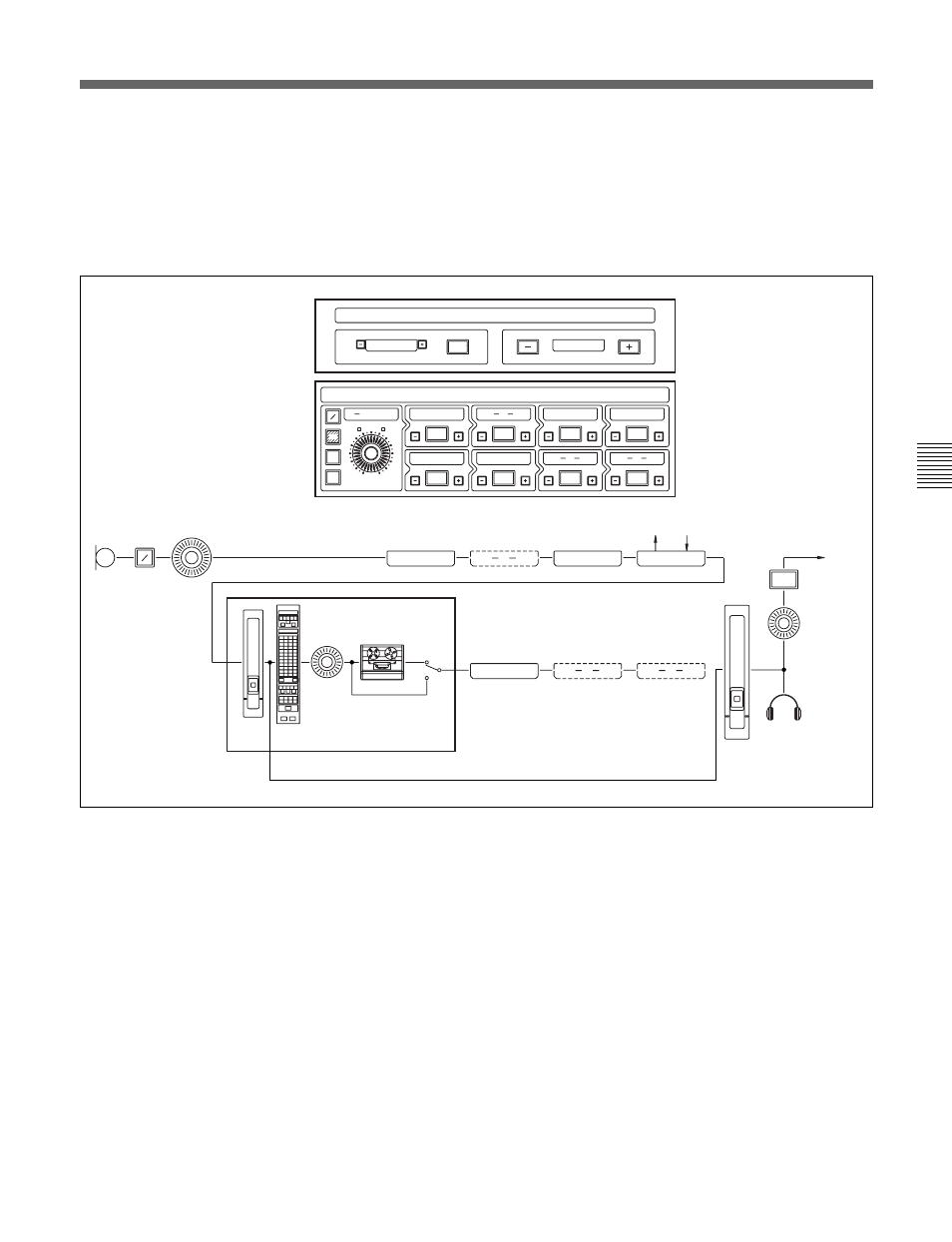

Send 1 - Post M/T Send Fader headphones feed
SENDS 1-24
MTSEND 1
INPUT CHANNEL & INSERT
2 FILTER
MULTI DYN
20 dB
GAIN
EQ
7 8
SEND RETURN
INSERT
PAN
L & R
MAIN
CH OUTPUT
SEND 1
CHANNEL
FADER
EQ 2
INSERT
SELECT
SOURCE SELECT SOURCE FOR
IN IN
IN IN
IN
IN
IN
IN
O
MIC
M/T
LINE
FILTER
MULTI
RETURN
SEND
DYN 7 8
GROUP
TRIM
ROUTING
M/T
SEND
GAIN
MIC
CH INPUT
O
60
40
30
20
10
5
0
5
10
60
40
30
20
10
5
0
5
10
MULTI-FORMAT
ROUTING
60
40
30
20
10
5
0
5
10
60
40
30
20
10
5
0
5
10
Upper section of
SENDS 1-24 panel
in channels sections
