SOLO and AFL
To the left of Main L/R meter, SOLO or AFL legends
indicate the current mode. Larger rectangular flags
illuminate to indicate an active function.
RED LIGHT ON
The Red Light function has an ON indicator situated to
the middle left of the Central Stereo Meter.
REHEARSE ON
The Rehearse function has an ON indicator situated to
lower left of the Central Stereo Meter.
OSC ON (MAIN, GROUPS)
The Oscillator has ON, MAIN and GROUPS
indicators situated to the middle right of the Central
Stereo Meter.
STUDIO (LS1 ON, LS2 ON)
The Studio LS switching has Studio LS1 and LS2
indicators situated to the lower right of the Central
Stereo Meter.
6-4-3 Other Meter Bridge Indicators

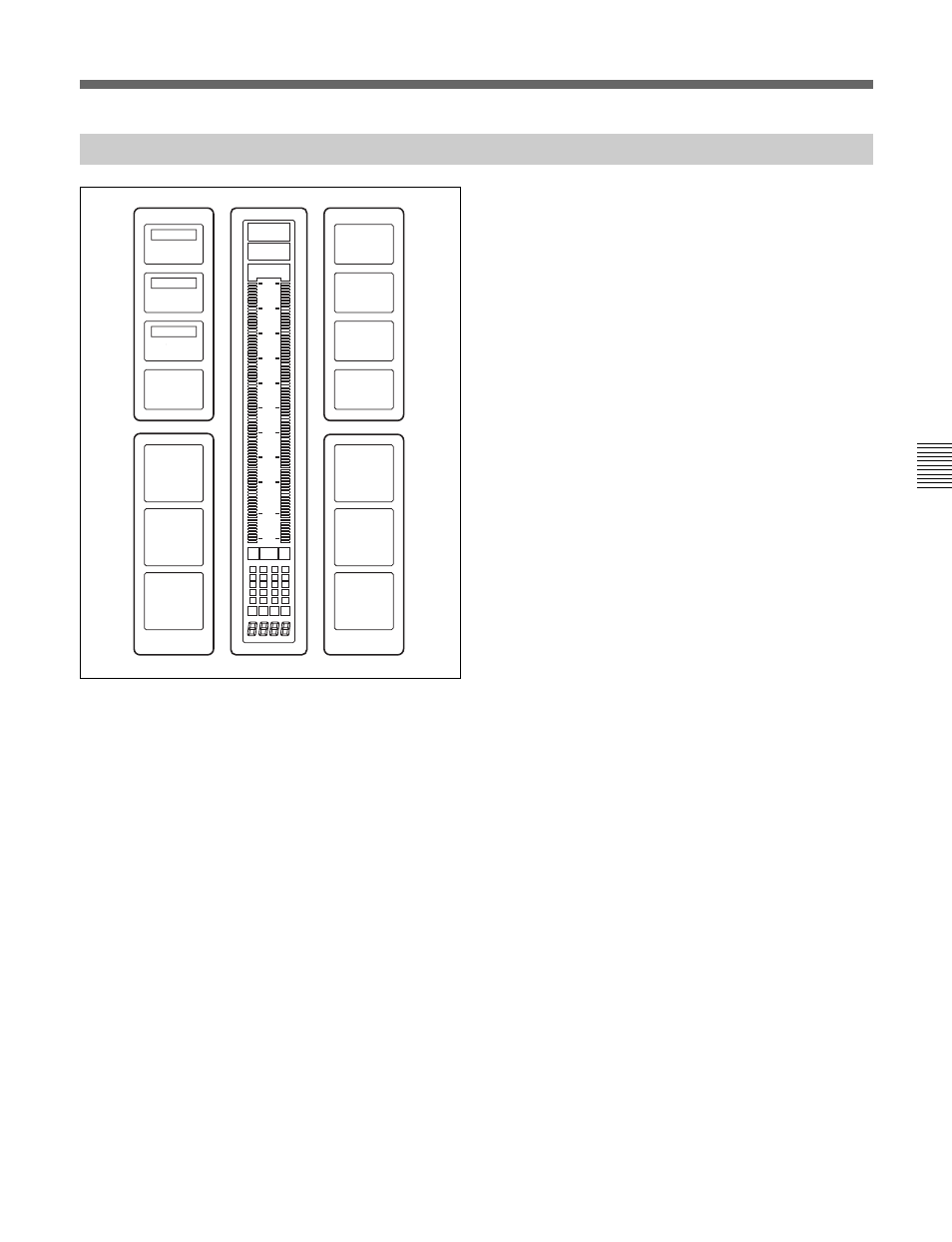

Central Stereo Meter with additional flags
SOLO
AFL
PFL
RED
LIGHT
ON
RE-
HEARSE
ON
MAIN
MON
OVER
0
4
8
12
16
20
24
32
40
50
60
L R O/L
G E C L
STUDIO
LS1 ON
LS2 ON
OSC ON
MAIN
GROUPS
