3-7 Sends

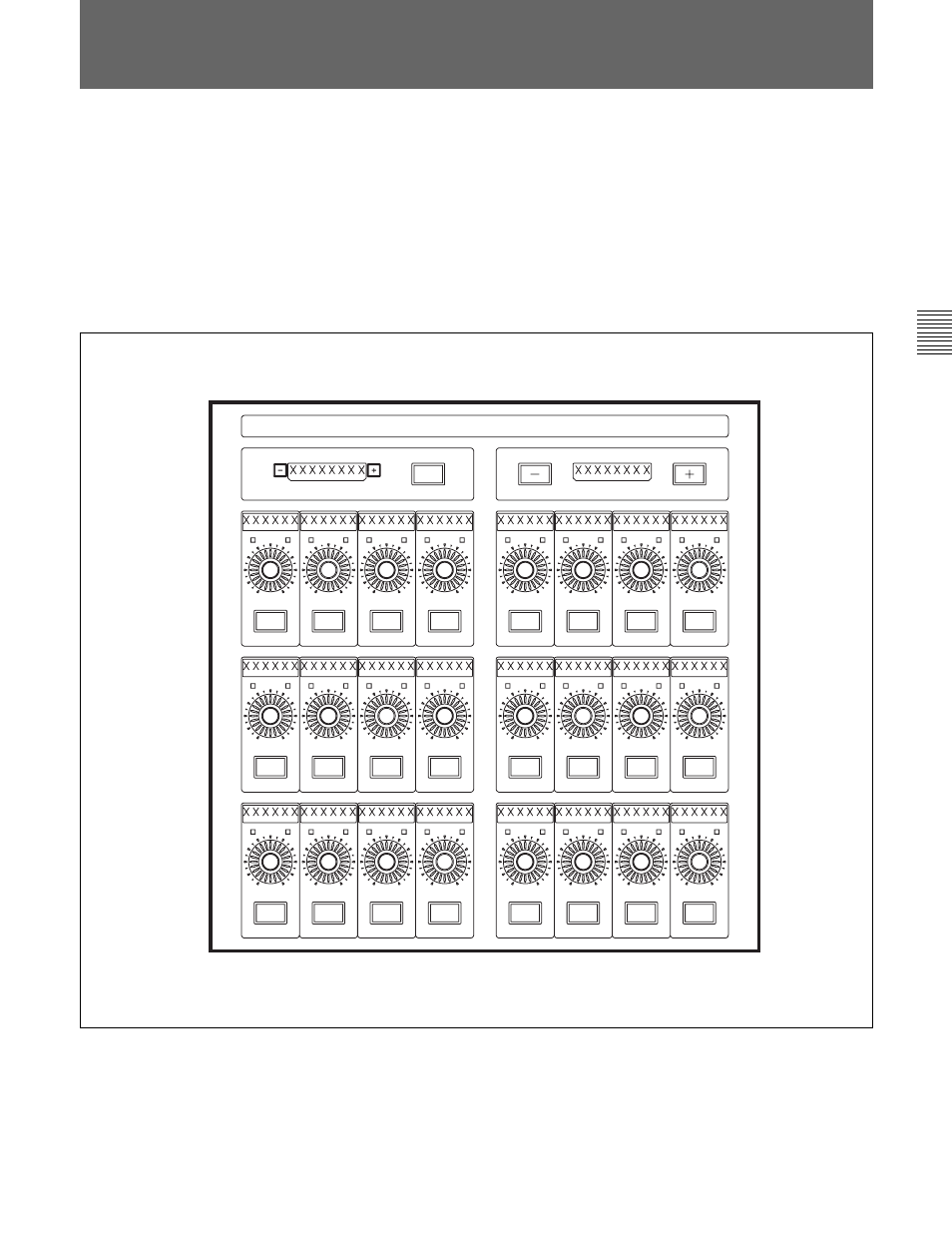

Sends 1-24 panel
There are currently 24 mono Sends that can be linked as odd/even pairs,
set up at the SEND OUTPUTS 1-24 panel in the centre section, to provide
up to 12 stereos. The levels to the busses can be set via the individual
dedicated controls on the channels SENDS 1-24 panels for each channel
individually. Alternatively Sends can be assigned, one bus at a time, to the
faders or assignable knobs (PANs). This allows a mix to an effect or
foldback to be set up using the faders or a row of knobs on a console-wide
basis. The source points for each Send can be set individually on each
channel or on a console-wide basis.
SENDS 1-24
SOURCE
SELECT
SELECT SOURCE FOR
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
∞
