4-18
Chapter 4 Signal Paths
Chapter 4 Signal Paths
4-11 Dynamics Side-Chain Linking
Dynamics Side-Chain Link Right in general
This function allows the Dynamics section in the next channel to the right
to be controlled by the Side-Chain of the currently accessed channel and
vice versa. The linking can be cascaded over any number of channels to
form a group, and may be linked through channels where the Dynamics
sections are not active. No matter how many channels are cascaded, the
one with the largest Side-Chain Control Signal will accurately control all
the rest. It is often useful to Copy or Link the front panel controls of the
channels using the Dynamics Side-Chain Link Right function (see 7-6-8 in
Chapter 7)
SC FM RT
SC TO RT
SC FM RT
SC TO RT
SC FM RT
SC TO RT
SC FM RT
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
4-11-1 Dynamics Side-Chain Link Right

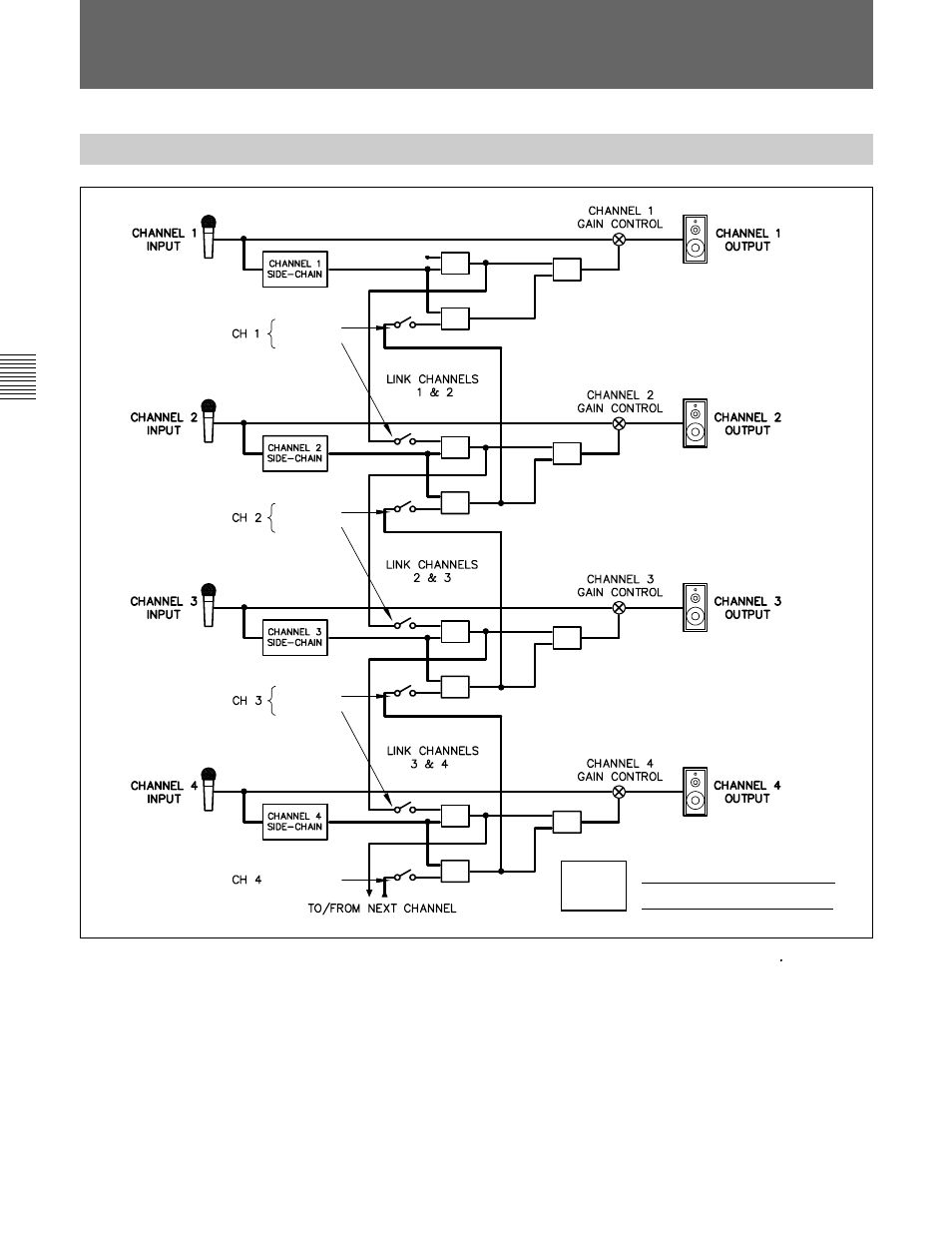

Block schematic to illustrate Dynamics Side-Chain Linking to the next channel to the right
4-11 Dynamics Side-Chain Linking
MIN APPLIES TO GATE & EXPANDER
• LEAST GAIN REDUCTION TAKES PRIORITY
MAX APPLIES TO COMPRESSOR & LIMITER
• MOST GAIN REDUCTION TAKES PRIORITY
MIN
MAX
