Page 66
4-6
Chapter 4
Signal Paths
Chapter 4 Signal Paths
4-3 Mix-down with Post Channel Fader Insert
The ability to swap functions easily enables the user to start with identical
signal paths set up across the console using copy or snapshot functions.
Then channels may be changed on an individual basis, according to the
situation.

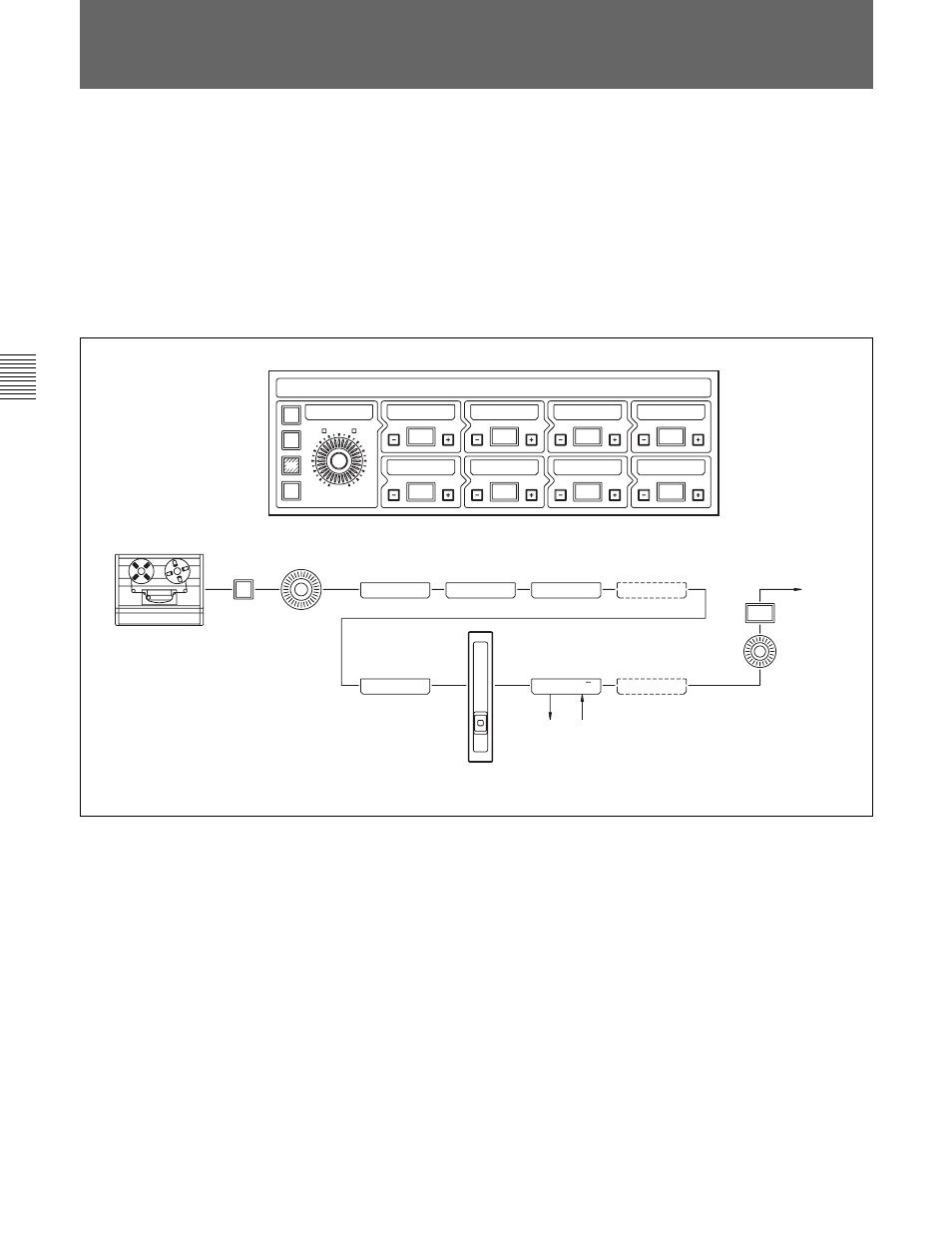

By selecting FADER in one of the eight windows, functions can be placed
after the channel fader. The diagram shown is the same configuration as
the previous mix-down set-up, but with the INSERT point placed after the
fader, thus a post fader insert.
Mix-down with post channel fader insert
INPUT CHANNEL & INSERTS
0dB
GAIN
F I L T E R
D Y N
F A D E R
E Q
– 4 –
F I L T E R
D Y N
E Q
– 4 –
– 8 –
– 8 –
I N S E R T
I N S E R T
D E L A Y
D E L A Y
ø
M/T
MIC
LINE
IN
IN
IN
IN
IN
IN
IN
IN
C H I N P U T
G A I N
ø
CHANNEL
FADER
10
10
5
5
5
5
10
10
20
20
30
30
40
40
60
70
∞
∞
0
0
C H O U T P U T
L & R
PAN
MAIN
RETURN
SEND
4-3 Mix-down with Post Channel Fader Insert
