Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
On/OFF position
5 ~ 95
Initial value:50
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Cycle speed
1 ~ 100
Initial value:50
Setting buttons
- Use the (+) and (-) buttons to
make adjustments.
Operation mode
ON/OFF, Flash
93
Fu
n
c
tio
n
CPS Mixing
(Preparation)
- Refer to the left page and set the function to ON and set the mixing channel.
- CPS-1 connects to the receiver channel assigned to CPS mixing.
- When the LEDs are turned on and off by switch, use the function select switch function (P.99)
to set the switch to be used.
1
(Control system setup)
Operate the (JOG) button up and down and select the setting item "Control".
Press the (+) or (-) button and select the function.
"Mixing Switch" : ON/OFF by switch set at the 3rd or 4th CH
"Steering neutral" : ON at steering neutral
"Steering endpoint" : ON at both sides of steering
"Throttle neutral" : ON at throttle neutral
"Throttle forward" : ON at throttle forward side
"Throttle brake" : ON at throttle back (brake) side
"Throttle neutral & brake" : ON at throttle neutral and back (brake) sides
CPS-1 mixing adjustment
2
(ON/OFF switching position selection)
Operate the (JOG) button up and down and select the set-
ting item "ON/OFF position".
Press the (+) or (-) button and select the ON/OFF position.

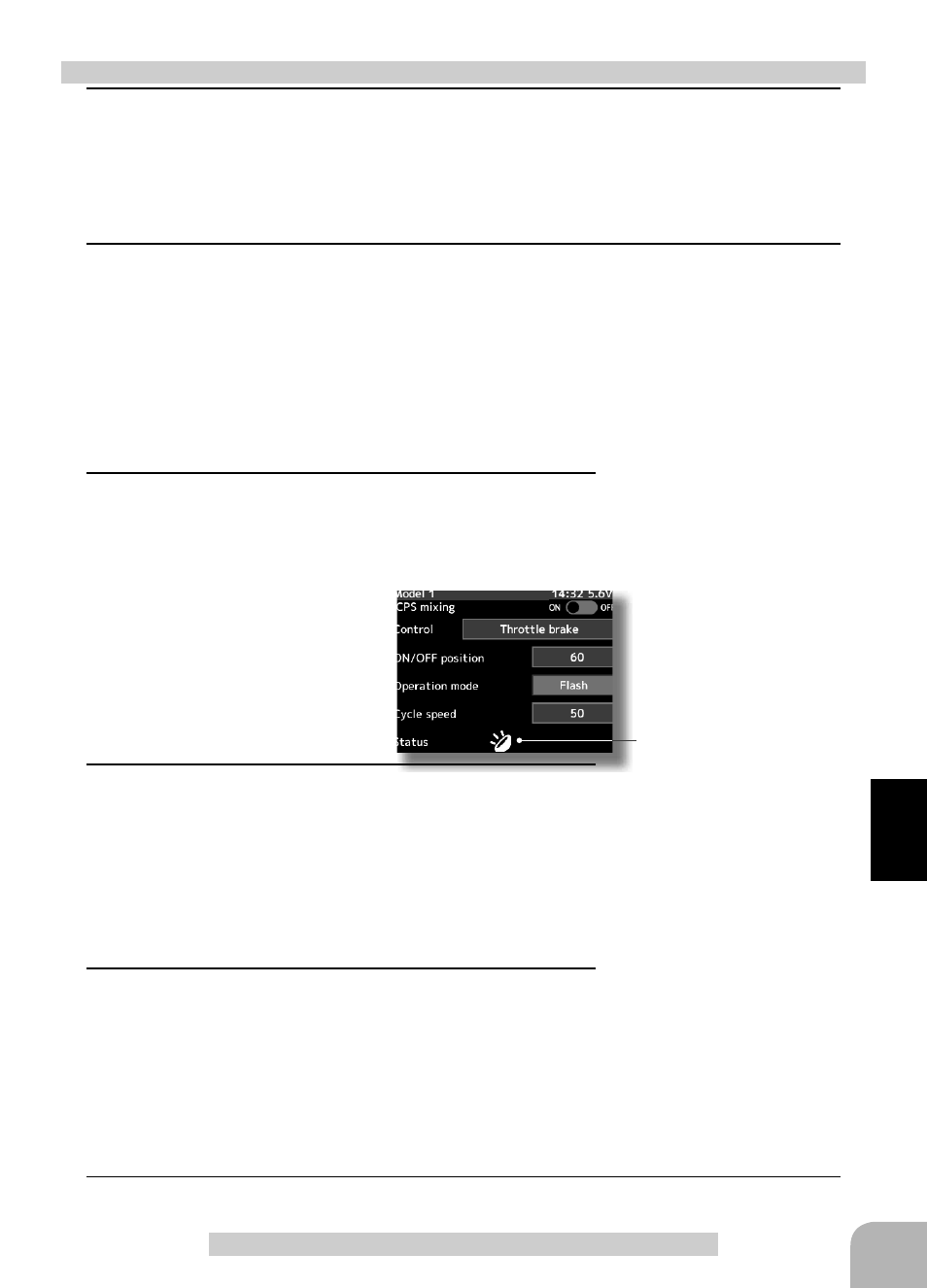

Since the ON/OFF state is dis-
played at the right side of the
setting item "Status", setting can
be confirmed while operating the
function to be controlled (for ex-
ample, throttle).
3
(Operation mode setup)
Operate the (JOG) button up and down and select the set-
ting item "Operation mode ".
Press the (+) or (-) button and select the type of LED lighting.
Normal ON/Off type or flashing can be selected.
"ON/OFF" : Normal ON/OFF type
"Flash" : Flashing display
4
(Flashing cycle setting)
When flashing type "Flash" was selected at the setting item
"Operation mode" the flashing speed (cycle) can be set.
Operate the (JOG) button up and down and select the set-
ting item "Cycle speed".
Press the (+) or (-) button and select the flashing speed (cycle
speed).
*Shows the ON/OFF state
5
When ending setting, return to the Mixing menu screen by pressing the (END) button.
