2.6x10mm
tapping screws 2.6x15mm
tapping screws
Angle spacer
2.6x10mm
tapping screws
2.6x10mm
tapping screws
Mount the angle spacer and wheel unit with
2.6x15mm tapping screws.
2.6x10mm
tapping screws
2.0x6 cap crew
2.6x10mm
tapping screws
Mount the APA adapter and
wheel unit with 2.6x19mm
tapping screws.
28
Bef
ore U
s
in
g

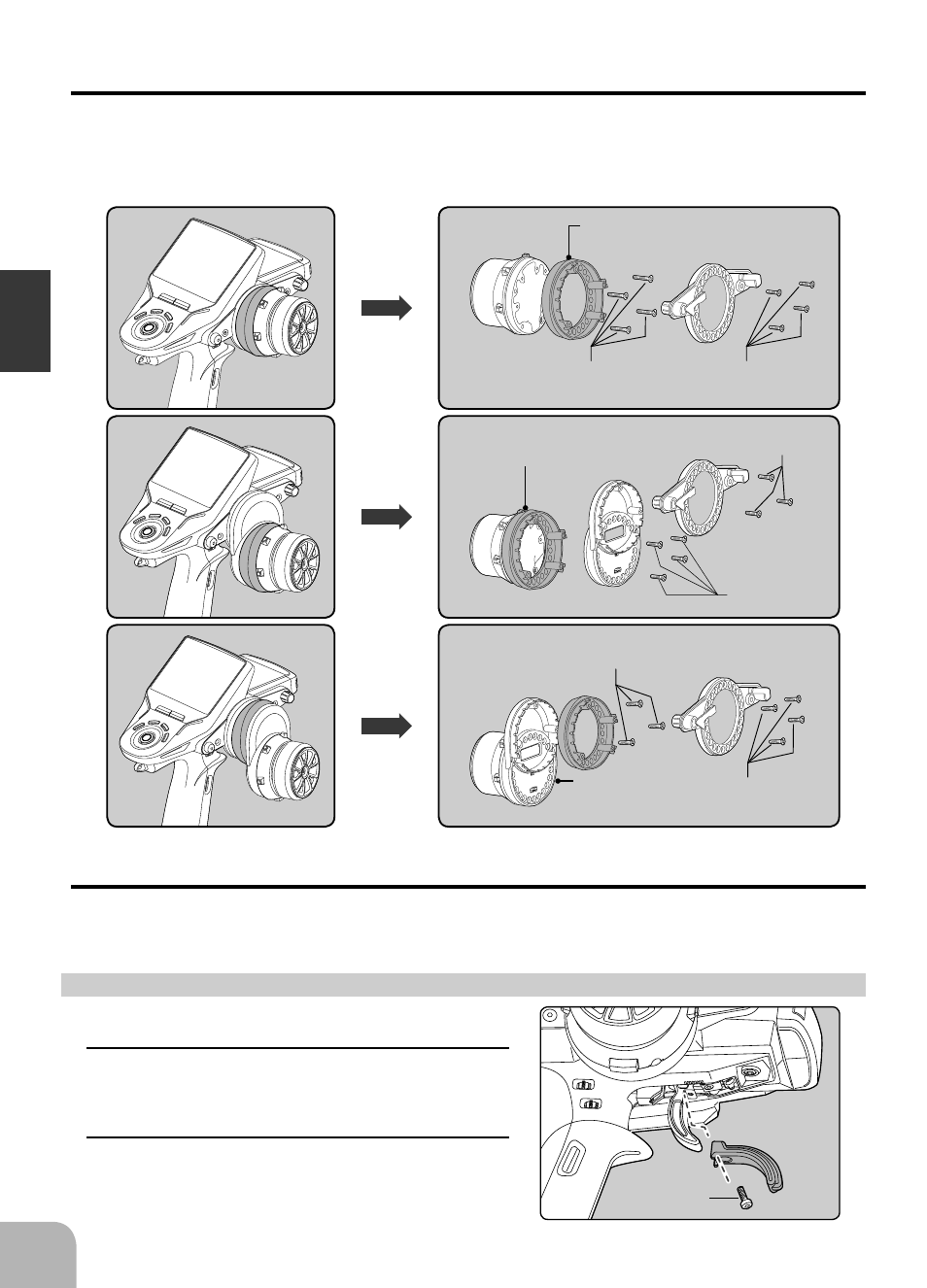

Using the optional angle spacer
The wheel mounting angle can be changed by using the optional angle spacer.
Three 2.5x10mm tapping screws are supplied with the angle spacer.
When using and not using the APA, refer to the following installation.
Obtain a Phillips screwdriver. Be careful of the length of the screws used.
Actually, since there is wiring, the wheel is assembled by passing the screws through each part.
Trigger brake lever replacement
The trigger brake lever is selected from a narrow nylon type and wide type. (Narrow type is
installed at the factory.)
*When the brake lever was changed, perform throttle side correction by adjuster function (P152).
1
Hold the trigger, remove the brake lever mount-
ing screw using the 1.5mm hex wrench, and re-
move the brake lever.
2
Using the 1.5mm hex wrench install the wide
type brake lever with the brake lever mounting
screw.
Obtain a 1.5mm hex wrench. Remove the battery from
the transmitter.
Brake lever replacement
