Futaba 4PX 2.4GHz FASST T-FHSS S-FHSS - Manual (Page 122)

MC401,402CR/MC950CR/MC940,960CR
MC401,402CR MC601,602,851C
MC401,402CR MC950CR/MC940,960CR
MC601,602C/MC850,851C
100
50
0
%
Brake (Reverse) operation
Br
aking f
orce
Re
v
erse P
o
w
e
r
122
Fu
n
c
tio
n

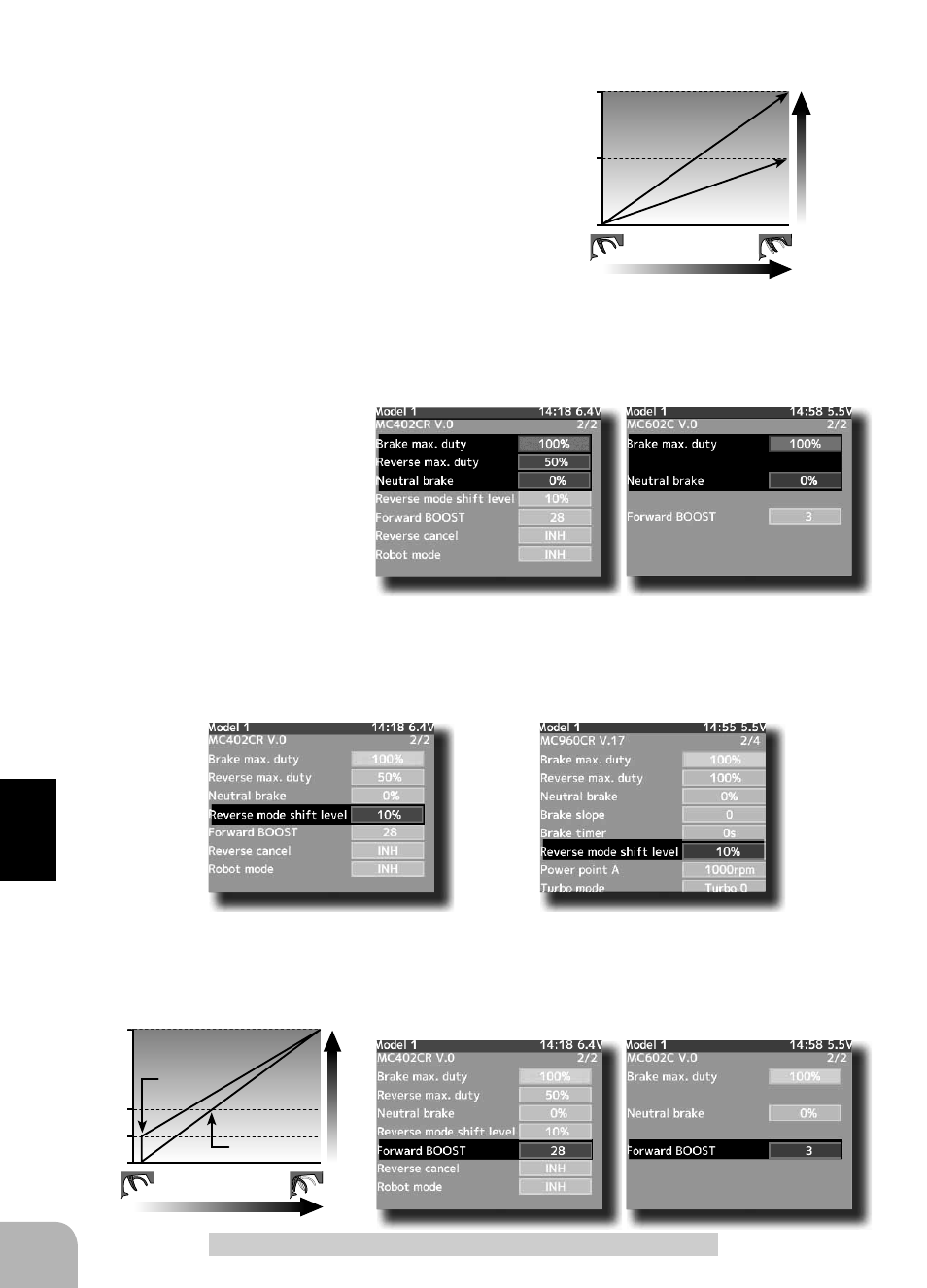

MC Link Function (ESC Link)
Brake max. duty
All type :0%~100%
Same as Link software Brake Max. Duty.
This setting can set the braking force between the neutral point and
Max brake point.
The larger this value, the greater the braking force. When set to
"0%", the brakes are not effective.
Reverse max. duty
MC401,402CR/MC950CR/MC940,960CR :0%~100%
Same as Link software Reverse Max. Duty.
This setting can set the reverse power between the neutral point and Max reverse point.
The larger this value, the greater the reverse power. When set to "0%", the reverses are not
effective.
Neutral brake
All type :0%~100%
Same as Link software Current Limit
timer.
Make this setting when you want to use
the brakes at the neutral throttle (OFF)
position by throttle operation. The larger
this value, the greater the braking force.
When you want to use the neutral
brake, set this value to "0%".
100
50
0
Forward operation
Throttle response
FWB "50"
FWB "0"
Reverse mode shift level
MC401,402CR/MC950CR/MC940,960CR :0%~100%
Same as Link software Reverse Mode Shift Leve.
The reverse operation can be done with the throttle trigger to be thrown from brake status to the neutral. The value
can set the amount of the brake in order to switch to the reverse operation.
Forward BOOST
MC401,402CR/MC601,602C/MC851C :0%~100%
Same as Link software Forward Boost (Boost).
Operation near the throttle trigger neutral position becomes a sharp rise.
