Futaba 4PX 2.4GHz FASST T-FHSS S-FHSS - Manual (Page 101)

or
MENU
1screen
MENU 2 screen
Push
HOME
screen
Press
101
Fu
n
c
tio
n
Dial Select
Function select dial setup
1
(Select dial selection)
Select "Function" of the trim or dial you want to set by (JOG) button up, down, left, or right
operation, and press the (JOG) button.
Setup item selection
- Select by (JOG) button up,
down, left or right operation
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Press the (+) and (-) buttons
simultaneously (approx. 1 sec)
to return to the initial screen.

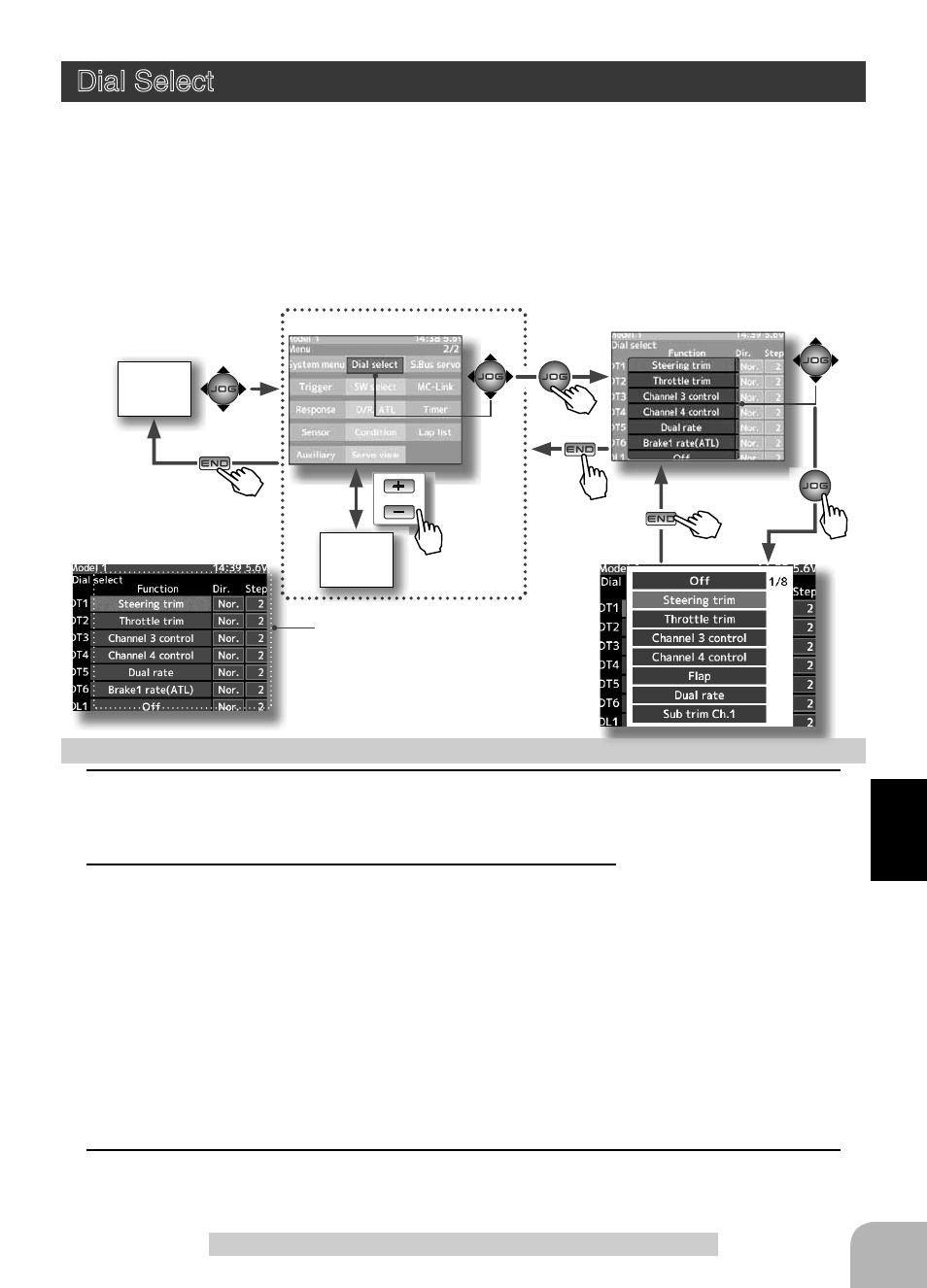

Dial Select
This function allows selection of the function performed by the digital dial DL1 and digital
trimmers (DT1 ~ DT6), step amount adjustment, and operating direction reversal.
- The table in the next page lists the functions that can be assigned to each dial and digital trim-
mer. The assigned function is also displayed on the opening screen together with the current
adjustment value. They are displayed in DL1and DT1 ~ DT6 order, from top to bottom.
- The step amount can be adjusted. The table in the following page shows the relationship be-
tween set value and step amount.
- The operation direction can be reversed. (NOR/REV)
Setup items
Function
Dir
Step
2
(Function setup)
A function list is displayed. Select the desired function by (JOG)
button up or down operation, and press the (JOG) button.
(Changing the operation direction)
Select "Direction" of the switch you want to set by (JOG) button
up, down, left, or right operation and switch the direction by (+) or (-) button.
(Changing the operation step amount)
Select "Step" of the switch you want to set by (JOG) button up, down, left or right operation,
and switch the type by (+) or (-) button.
- For the relationship between set value and step amount, see the preceding page
3
When ending setting, return to the menu screen by pressing the (END) button.
Press
Press
Pu h Press
Pu h Press
