15 WIRE 8 WIRE 15 WIRE 8 WIRE
Right-hand Left-hand
26
Bef
ore U
s
in
g
3

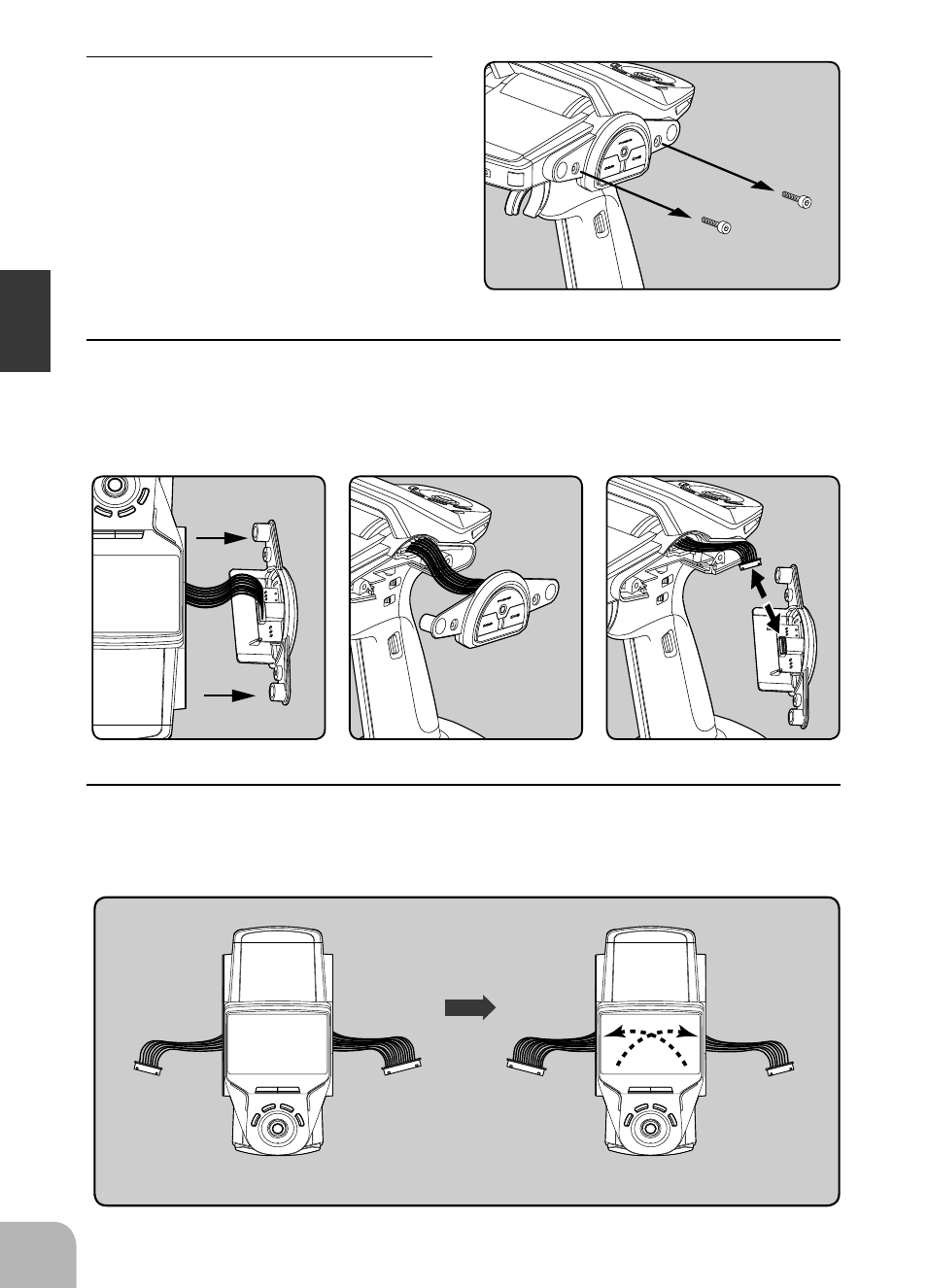

Using a 2.5mm hex wrench, remove the
mounting screws (3.0x1.2mm cap) of
the opposite side charge unit.
Remove the 2 mounting screws completely from
the transmitter body.
4
Being careful that the wiring is not too tight slowly remove the charge unit. Remove the
connector from the PC board.
Remember the direction of the connector.
5
Interchange the 15WIRE wiring connector of the steering unit and the 8WIRE wiring con-
nector of the charge unit, while being careful that the wiring is not too tight.
