Setting buttons
- Use the (+) and (-) buttons to
make adjustments.
Function ON/OFF (4WS type)
Type1(OFF),
Type2,
Type3, Type4
Setting buttons
- Use the (+) and (-) buttons to
make adjustments.
Mixing mode (MX Mode)
OFF, ON
Initial value: OFF
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Rear rate (Rear mix rate)
0 ~ 100
Initial value:100
87
Fu
n
c
tio
n
4WS Mmixing
Type2
Front side only, Reverse
phase switching
Type3
Front side only, Reverse phase
and same phase switching
Type4
Front side only, reverse phase, same
phase, and rear side only switching
(Preparation)
- Since this function is used by switching the type of 4WS with a switch, the switch used by the
function select switch function (p.99) is set.
1
(4WS mixing function ON/OFF and channel setup)
Refer to the left page and set the function to ON and set the mixing channel.
4WS mixing adjustment
2
(4WS type selection)
Operate the (JOG) button up and down and select the set-
ting item "4WS type". Select the type by pressing the (+) or (-)
button.
"Type1" :Function OFF (front only)

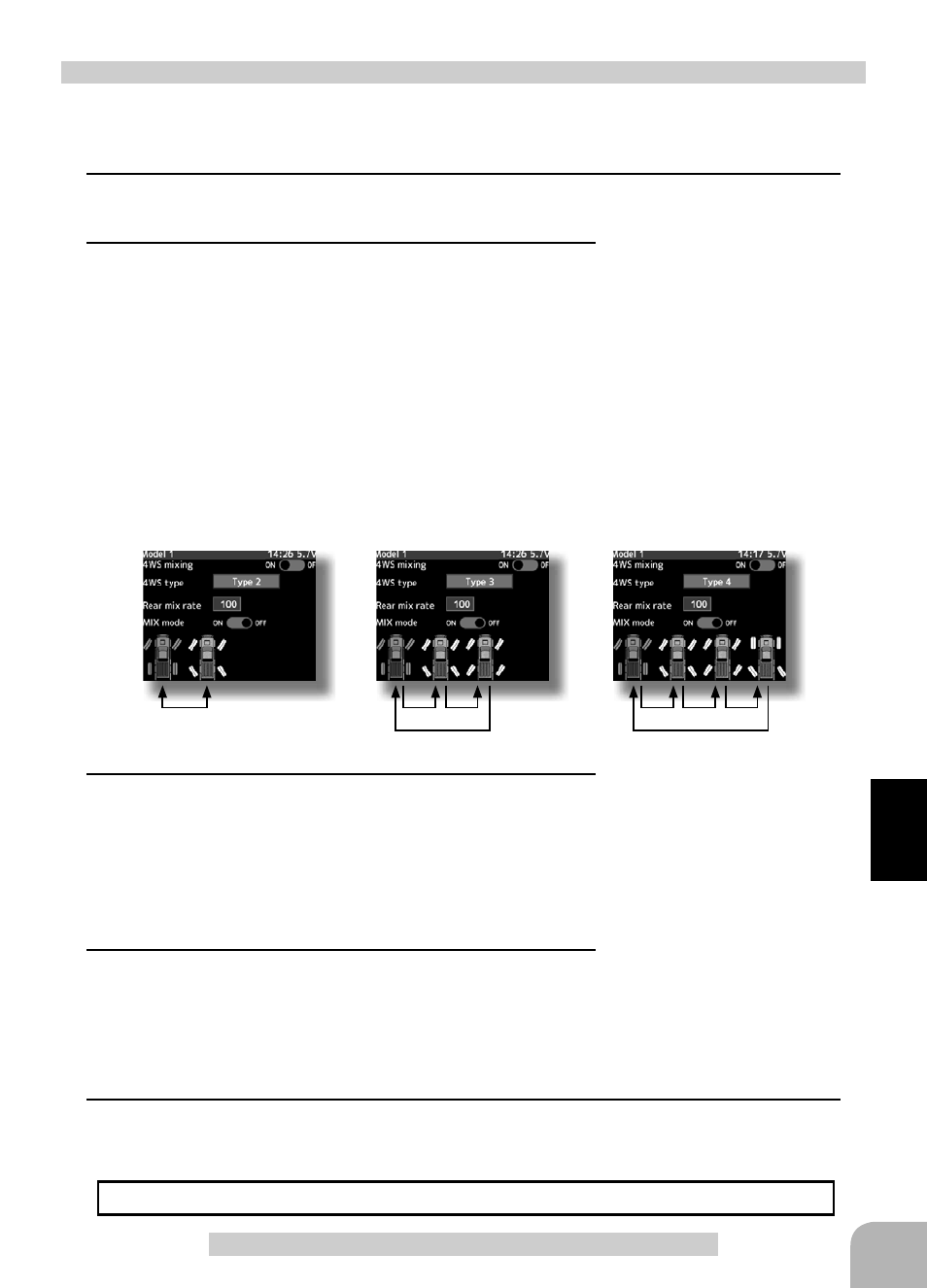

"Type2" :Front side only, reverse phase switching
"Type3" :Front side only, reverse phase and same phase switching
"Type4" :Front side only, reverse phase, same phase, and rear side only switching
Switched in the order shown in the figure below by set SW
3
(Rear side travel adjustment)
Operate the (JOG) button up and down and select setting
item "Rear mix rate". Adjust the rear side travel with the (+)
or (-) button.
The mixing amount can be adjusted by using the function dial function. (p.101)
Dial / Trim Setting
4
(Mix mode setting)
Operate the (JOG) button up and down and select the setting
item "MX mode". Set the mix mode with the (+) or (-) button.
"OFF" :The EXP function of the 1st CH and other settings are not mixed.
"ON"
:The EXP function of the 1st CH and other settings are mixed.
5
When ending setting, return to the Mixing menu screen by pressing the (END) button.
