End Point
(Preparation)
- Before setup of the steering end point adjustment, set the steer-
ing D/R dial (initial setup: DT5) to the maximum steering angle
position 100%.
- Select the setting item "Steering Left" by (JOG) button operation
and make the following adjustments:
1
Steering (left side) adjustment
Turn the steering wheel fully to the left and use the
(+) or (-) buttons to adjust the steering angle.

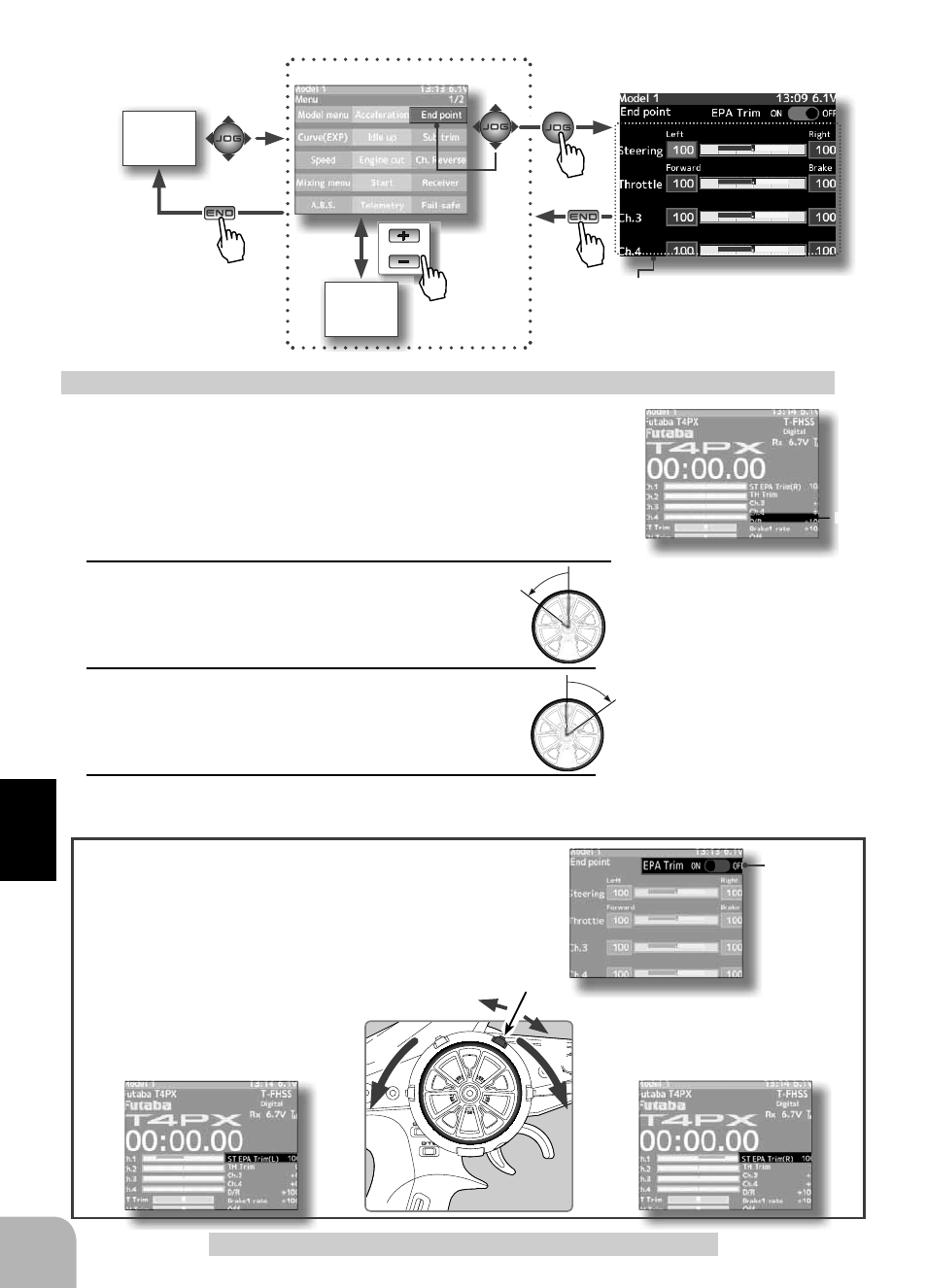

Steering end point adjustment
Quick EPA
When EPA trim is turned on, the steering angle (end point) can be
adjusted by steering trim set digital trim or dial. (Steering trim initial
setting: DT1)
Steering right side adjustment
With the steering wheel turned fully to the
right, steering is adjusted by steering trim.
Temporarily displayed at this part of the
HOME screen as shown in the figure below.
Steering left side adjustment
With the steering wheel turned fully to the
left, steering is adjusted by steering trim.
Temporarily displayed at this part of the
HOME screen as shown in the figure below.
2
Steering (right side) adjustment
Turn the steering wheel fully to the right and use
the (+) or (-) buttons to adjust the steering angle.
3
When ending setting, return to the menu screen by pressing
the (END) button.
Setting item (channel and direction)
Steering (left side/right side)
Throttle (foward side/brake side)
3rd channel (up side/down side)
4th channel (up side/(down side)
Adjustment buttons
Adjust with the (+) and (-) but-
tons.
- Return to the initial value "100"
by pressing the (+) and (-) but-
tons simultaneously for about 1
second.
Note
Step #1 & #2 are done when
the receiver is in the on position
installed on the chassis. You're
watching the wheels reach their
maximum end point.
Steering End point :0~140
Initial value
:100
