15
Bef
ore U
s
in
g
High point spring
Grip Handle
A vibration motor is built into the grip handle and
racing timer time-up, low battery alarm, telemetry
alarm, etc. can be generated by vibration.
Earphone Jack
Telemetry data can be listened to with commer-
cial earphones.
Non-telematry LED
Charging jack (interior right side)
Communication port (interior left side)
(Lights when the telemetry function is off.)
Convenient in trigger switch posi-
tion checks.
7KHVZLWFKHVGLDODQGWULPPHUVLQWKH¿JXUHDUHVKRZQLQWKHLQLWLDOVHWWLQJSRVLWLRQ
Antenna
Digital Dial (DL1)
Mechanical ATL
adjusting screw
Throttle trigger
Power&Display
switch
Digital Trim 2 (DT2)
(default throttle trim)
Digital Trim1 (DT1)
(default steering trim)
Digital Trim4 (DT4)
Digital Trim3 (DT3)
Digital Trim5 (DT5)
(default dual rate)
Steering wheel
Push switch 2 (PS2)
Push switch 1 (PS1)
Push switch 5 (PS5)
Push switch 3 (PS3)
Push switch 4 (PS4)
LED
LCD screen
Edit buttons

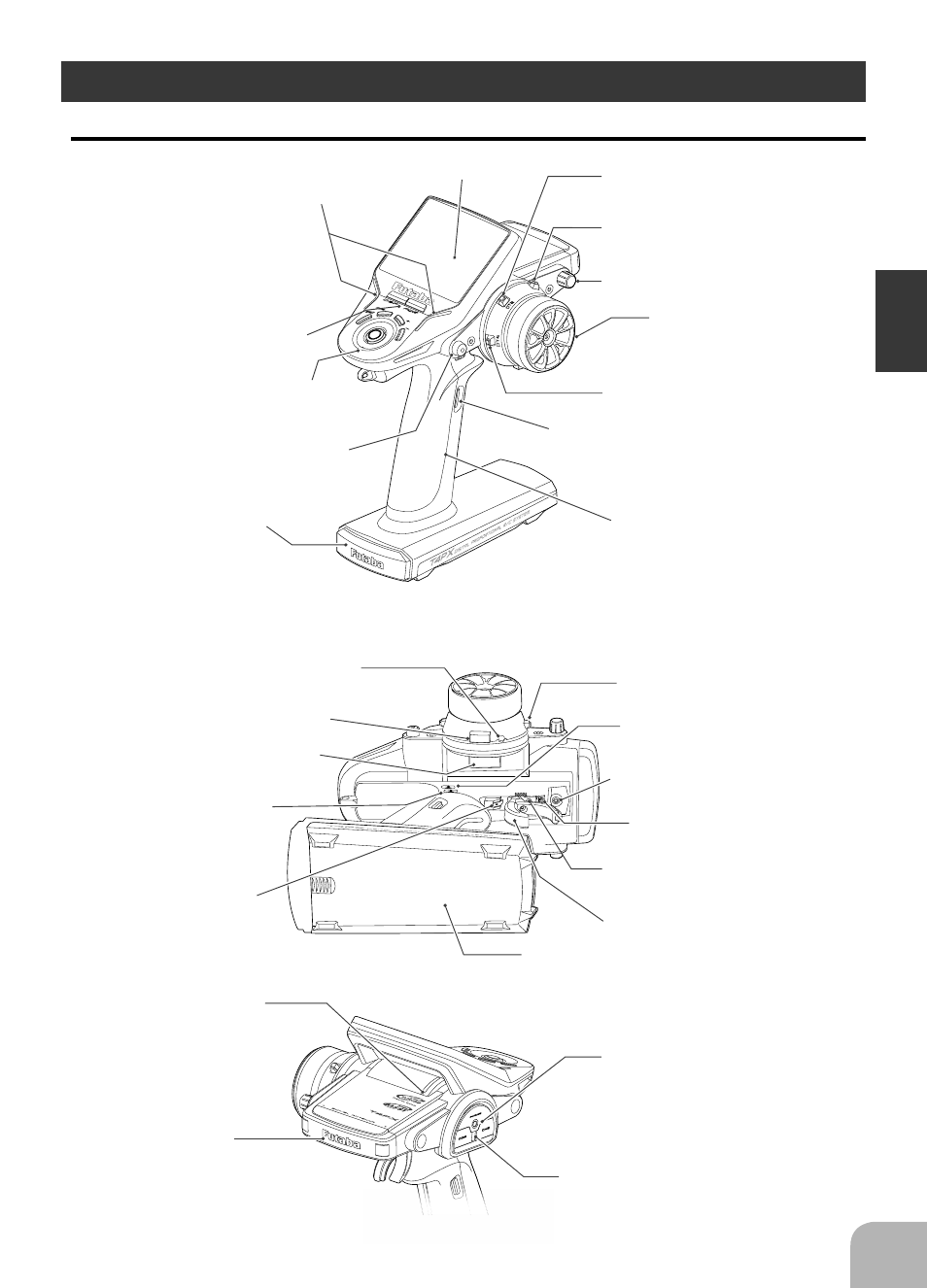

Nomenclature
Transmitter T4PX
Digital Trim6 (DT6)
(default brake rate)
Wheel tension
adjusting screw
Trigger tension
adjusting screw
Battery cover
Cover
Trigger slide adjusting screw
