Hold the wheel and remove the screw.
(Using a 2.5 mm hex wrench.)
• Obtain 2.5mm hex wrenchs./ Remove the battery.
2
Pull off the wheel and wheel adapter.
3
Install the steering wheel and the 32
deg wheel adapterusing the screw.
(Using a 2.5 mm hex wrench.)

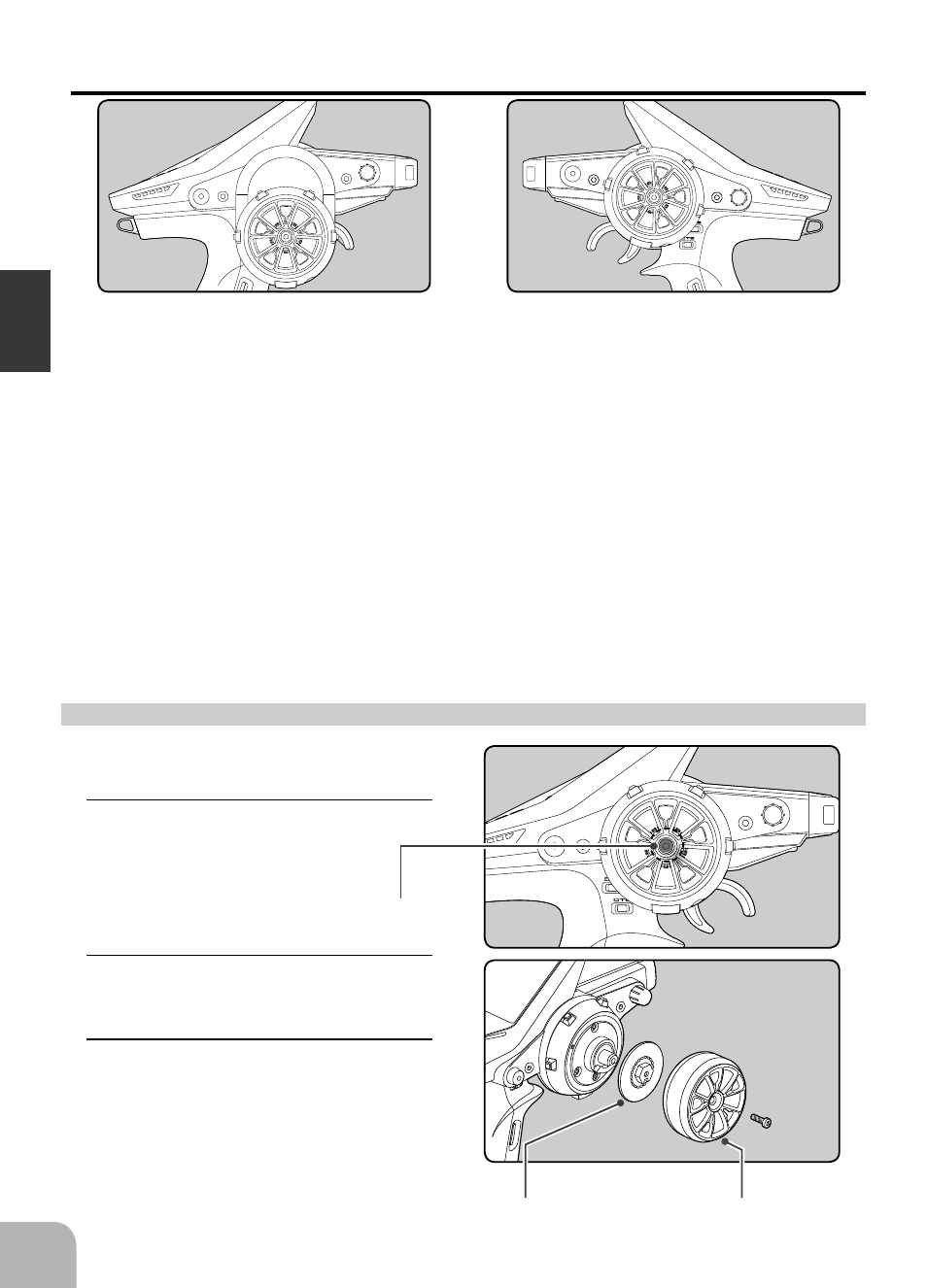

Exchange procedure to wheel adaptor 32 deg
Changing Wheel Position And Modifying For Left-hand Use
Changing the wheel position
The wheel position can be offset by using the
accessory APA wheel position offset adapter.
6HHSDJHIRUWKHPRGL¿FDWLRQPHWKRG
Angle can be adjusted
The angle can be finely adjusted by adjusting the steering wheel unit installation. (See the
modification method on the next page for the adjustment details.)
The operating angle of the wheel can be adjusted
The operating angle of the wheel can be changed from 34 deg to 32 deg by installing the
32 deg wheel adjuster. (See "Exchange procedure to wheel adaptor 32 deg" below for the
replacement procedure.
If you install the 32 deg wheel adapter, be sure to adjust the scale of the steering channel
accordingly by using the "Adjuster Function" (p.152).
Modifying for left-hand use
The wheel section left and right installa-
tion direction can be reversed.
6HHSDJHIRUWKHPRGL¿FDWLRQPHWKRG
Steering wheel
mounting screw
Wheel Wheel adapter
