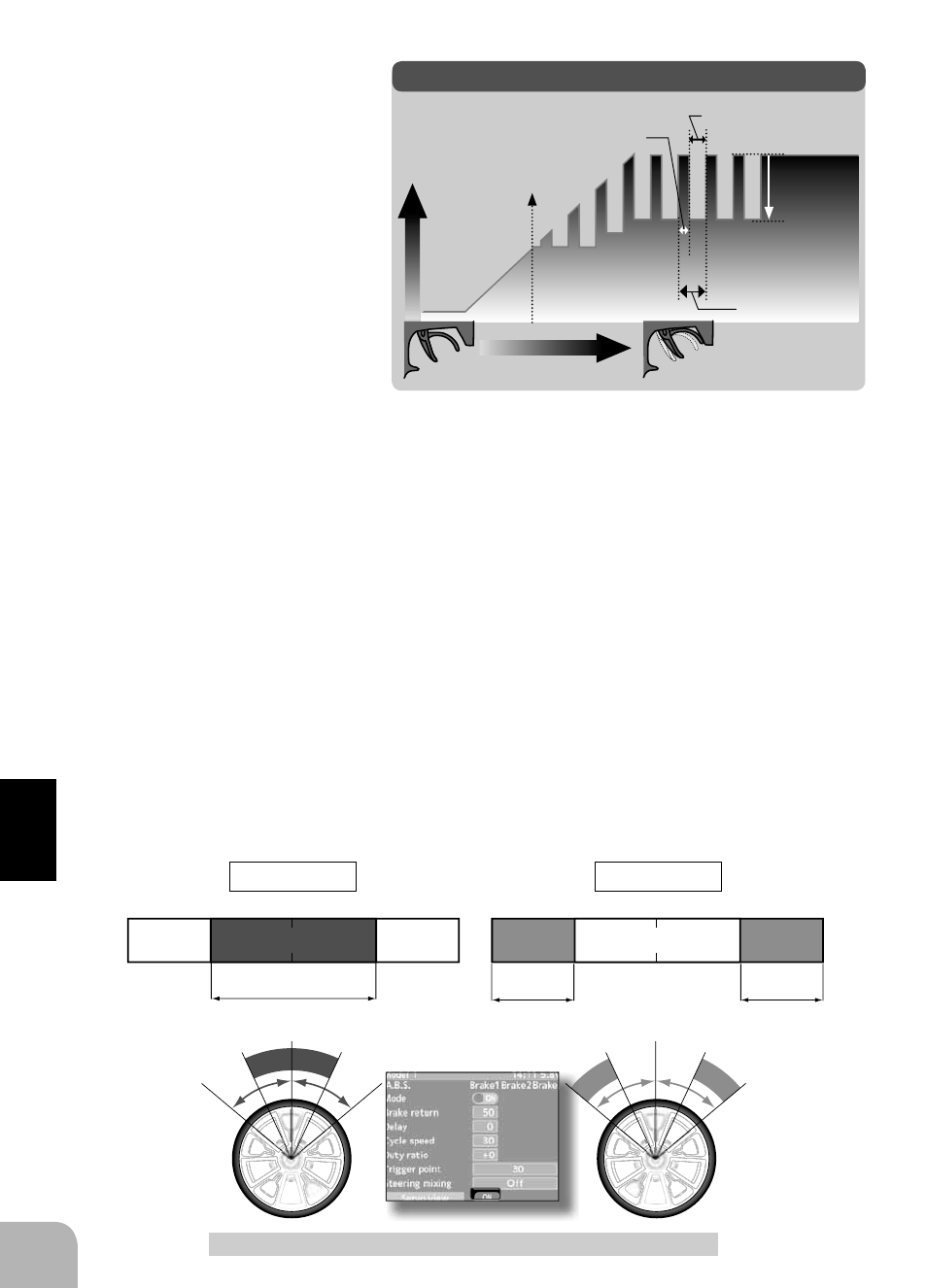

A.B.S Function
Steering operation Steering operation
A.B.S. operation range A.B.S. operation range A.B.S. operation range
N50% E50%
- Mode : Function ON/OFF
ABS function ON/OFF setting.
When using the ABS function, set
to "ON".
- Brake return
Sets the rate at which the servo
returns versus trigger operation
for brake release. When set to
0%, the ABS function is not per-
formed. When set to 50%, the ser-
vo returns 50% (1/2) of the trigger
operation amount and when set
to 100%, the servo returns to the
neutral position.
- Delay
Sets the delay from brake operation to ABS operation. When set to 0%, the ABS func-
tion is activated without any delay. At 50%, the ABS function is activated after a delay of
approximately 0.7 second and at 100%, the ABS function is activated after a delay of ap-
proximately 1.4 seconds.
- Cycle speed
Sets the pulse speed (cycle speed). The smaller the set value, the faster the pulse cycle.
- Duty ratio
Sets the proportion of the time the brakes are applied and the time the brakes are released
by pulse operation. The ratio can be set to +3 ~ 0 ~ -3 in 7 steps.
- Trigger point
Sets the trigger point at which the ABS function begins to operate at brake operation.
- Steering mixing
Sets ABS operation ON/OFF according to the steering operation range.
