Telemetry :rpm, Fu n c tio n – Futaba 4PX 2.4GHz FASST T-FHSS S-FHSS User Manual

Page 134

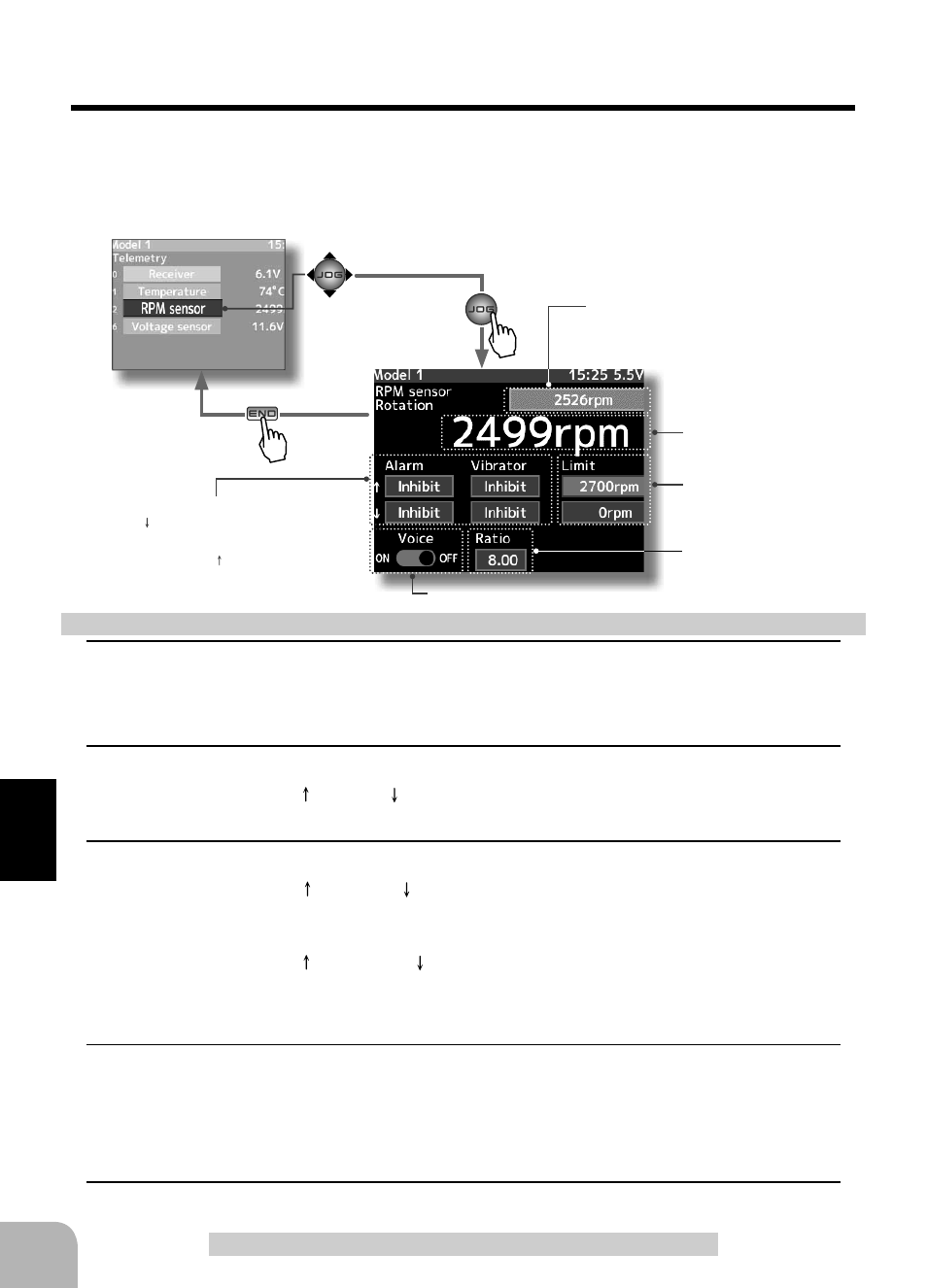

Telemetry screen

Press

The voice guide loading inter-
val is set by sensor menu.

134

Fu
n

tio

Telemetry

Current RPM

Gear ratio

Sets the limit speed
Upper limit/lower limit
(Speed that sound an alarm)

The Speech function (ON/OFF)

The maximum when powering ON are

shown.

Alarm and vibrator ON/OFF and type set-

ting (The arrow indicates that an alarm
is generated when the speed drops below
the set value and the arrow indicates that
an alarm is generated when the speed ex-
ceeds the set value.)

A RPM sensor must be installed in the model car.
Install and connect the sensor in accordance with

the sensor instruction manual.

(Gear ratio setup)

Select the setting item "Ratio" by (JOG) button up, down, left or right operation. Use the (+)

or (-) button to adjust the lgear ratio.

(Limit adjustment)

Select the setting item "

Limit" or "

Limit

by (JOG) button up, down, left or right operation.

Use the (+) or (-) button to adjust the limit voltage.

(Alarm and vibrator function setup)

Select the setting item "

Alarm" or "

Alarm" by (JOG) button up, down, left or right opera-

tion. Set the function to the active state by pressing the (+) or (-) button.

"Inhibit" :No audible alarm / "Buzzer" :Audible alarm/ "Voice" :Voice alarm

Select the setting item "

Vibrator" or "

Vibrator" by (JOG) button up, down, left or right op-

eration. Press the (+) or (-) button and select the type.

"Inhibit" :No active vibration/ "Type1" :Continuous vibration/ "Type2" :Intermittent vibration for a long time/
"Tyoe3" :Intermittent vibration for a short time

(Speech function setup)

Select the setting item "Voice" by (JOG) button up,

down, left or right operation. Set the function to the ac-

tive state by pressing the (+) or (-) button.

"OFF" :No voice guide/ "ON" :Information loaded by voice

When ending setting, return to the Telemetry menu screen by pressing the (END) button.

Alarm and Vibrator function setup

Telemetry :RPM

Speed information from an SBS-01RM (telemetry rotation sensor) sold separately is dis-
played and set at this screen. The speed of the engine, motor, etc. of the chassis while run-
ning can be viewed at the transmitter. When the speed becomes higher (lower) than the set
speed, it can be announced by an alarm and vibration.
