Info
Info
Info
Info
Signal
Info
Voltage Sensor
Temperature
Sensor
RPM Sensor
Battery voltage is displayed
at the transmitter.
Power battery voltage is
displayed at the transmitter.
voltage
T-FHSS Receiver
Transmitter
Switch
Connect to S.BUS2 Connector
HUB
HUB
Connection
diagram
130
Fu
n
c
tio
n
-Usable sensor options(As of June 2014)
*Temperature sensor (SBS-01T) Perfect for engine head, etc.
*Temperature sensor (SBS-01TE) Used by attaching to a motor, etc.
*RPM Sensor (SBS-01RM) Measures speed over the 0 to 999,900rpm range.
*Voltage Sensor (SBS-01V) Measures external power supply voltages up to 100V.
What is a slot?
Servos are classified by channel and sensors are classified by "slot". Since the T4PX initial slot
No. is set at each sensor in advance, they can be connected as is. There are 31 slots numbered
1 to 31.
*When sensors over the initial setting (use of multiple sensors of the same type) are used, they
must be registered at the sensor menu (p.138).
Telemetry
Telemetry System
With the telemetry system, the running status can be displayed at the transmitter and also
recorded as a data log by installing various sensor units to the chassis
(The S-FHSS and FASST systems do not have a telemetry function.)
-The sensor data can be checked at the transmitter by connecting the telemetry sensor sold
separately to the S.BUS2 connector of the R304SB receiver.
-To log this information, a start/stop switch is set by switch setting (p.99).
The log data recorded on a microSD card can be converted to CSV format by the telemetry
ORJFRQYHUWHUUHOHDVHGDWRXUKRPHSDJH:KHQFRS\LQJRUPRYLQJWKHORJ¿OHDOZD\VVHOHFW
ERWK)/,DQG)/'¿OHV

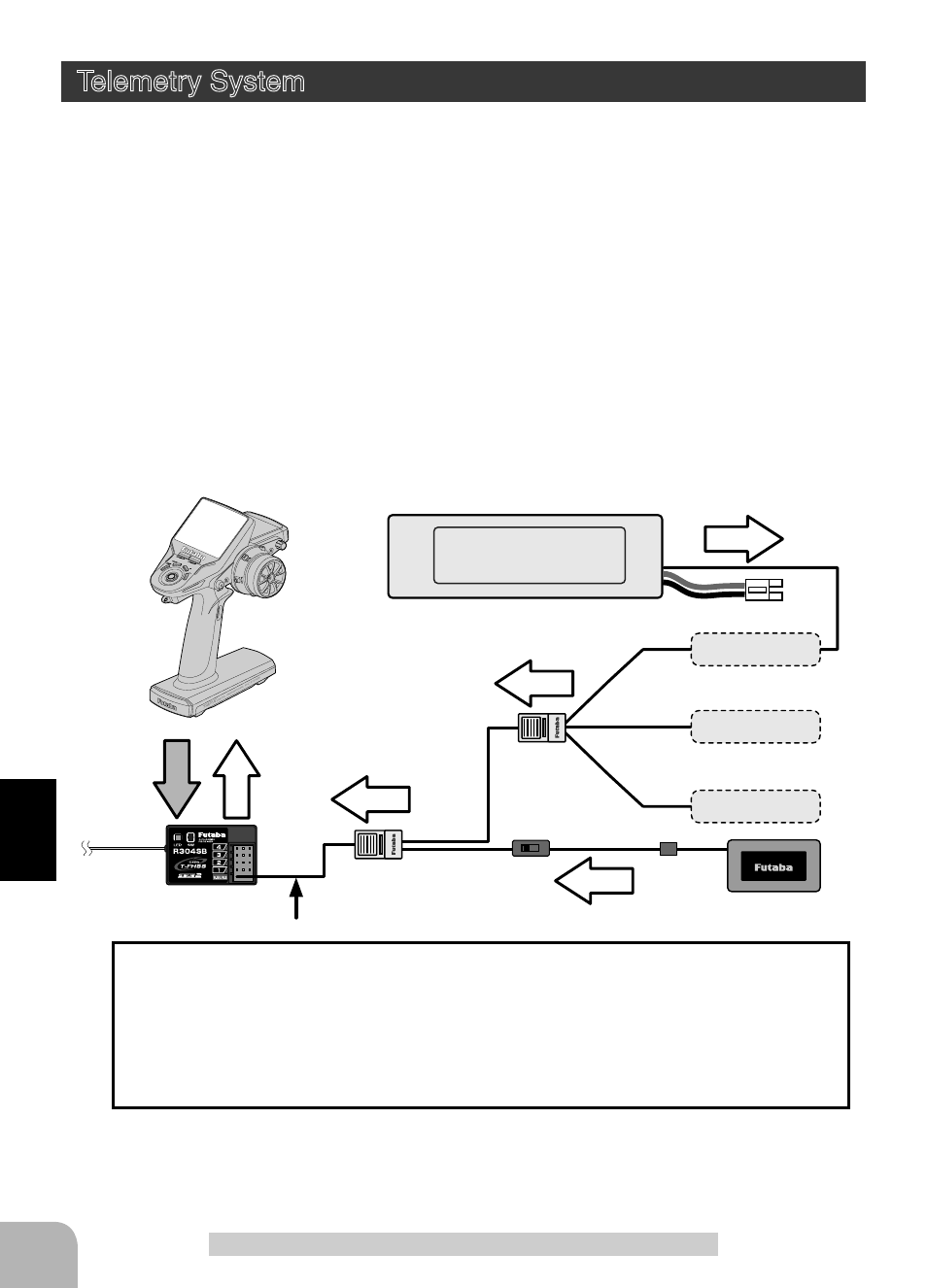

7KH¿JXUHLVDQH[DPSOHRIFRQQHFWLRQRIDWHOHPHWU\VHQVRU7KHGDWDRIXSWRWKHIROORZ-
ing 3 types of sensor and the receiver power supply voltage can be transmitted by using the
ZD\H[WHQVLRQFRUGRUGRXEOHH[WHQVLRQFRUGVROGVHSDUDWHO\
The receiver power supply can also be connected to the S.BUS2 connector or CH1~4 con-
nector. A receiver power supply voltage sensor is unnecessary.
