118

Fu
n

c

tio

n

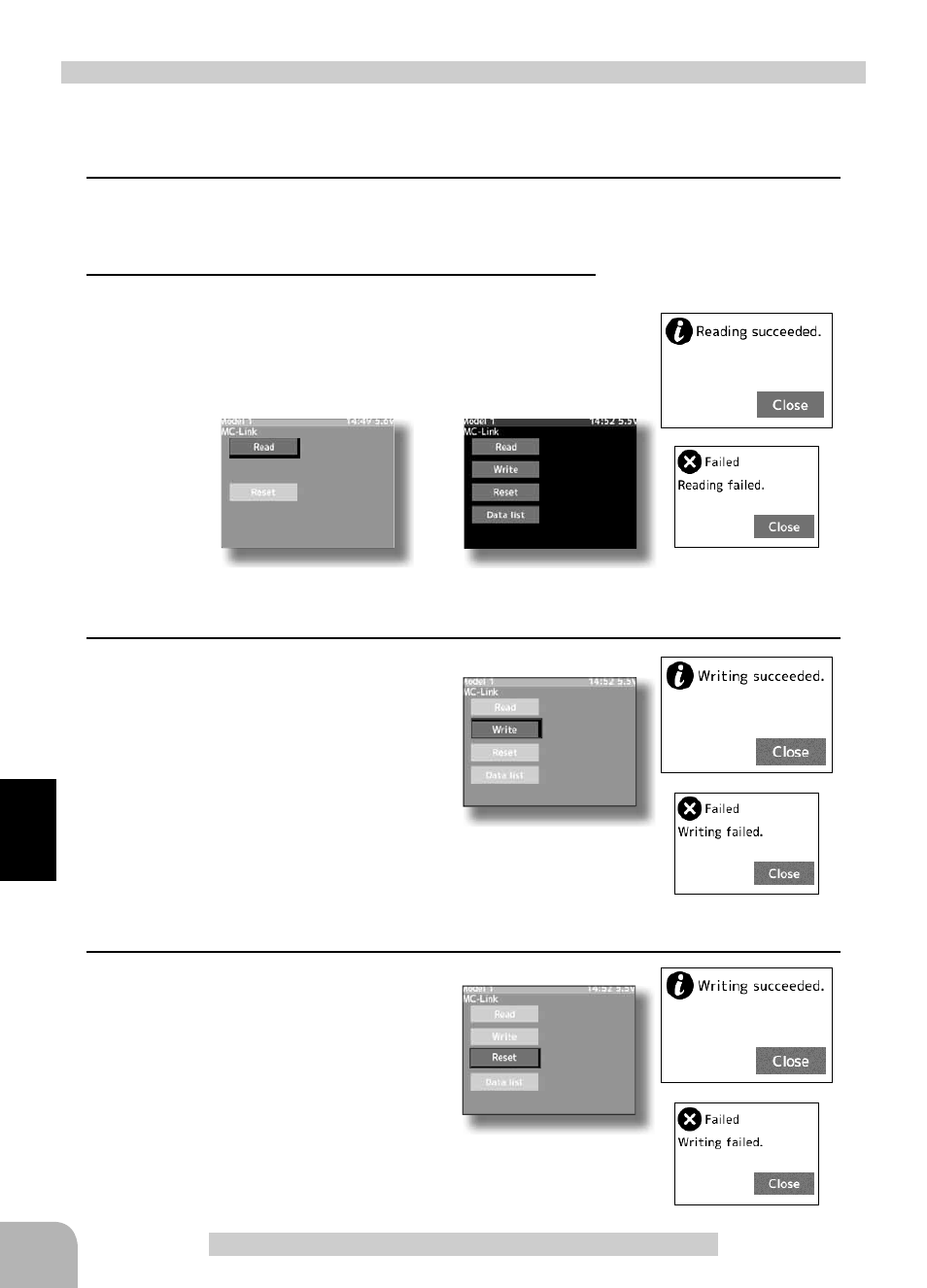

MC Link Function (ESC Link)

(Preparation)

-Connect the T4PX and ESC in accordance with the connection diagram shown on page 117.

-Connect the battery to ESC.

1

Turn power on the transmitter. "MC link" menu is displayed refer-

ring to the map of page117. Set the FET amp power switch to

the ON position.

Using the ESC Link function

2

(ESC read)

Execute this function to read the connected ESC type and

the data currently set at the ESC.

-Select the setting item "Read" by (JOG) button up or down

operation, and press the (JOG) button.

-"Reading succeeded" is displayed on the screen and the ESC type and currently set contents are read.
- If "Faild" is displayed on the screen, communication with the ESC is not being performed normally. Check the
T4PX and ESC connection and the battery connection to ESC and the ESC power switch and repeat "Read".

3

(Writing to ESC)

Execute this function to write the setting

data to ESC. See pages 120~125 for the

setting data contents.

-Select the setting item "Write" by (JOG)

button up or down operation, and press

the (JOG) button.

-"Wrieing succeeded" is displayed on the screen and the setting data is written to
ESC.
- If "Faild" is displayed on the screen, communication with the ESC is not being per-
formed normally. Check the T4PX and ESC connection and the battery connection to
ESC and the ESC power switch and repeat "Write".
- Different type ESC data cannot be written. If writing is attempted, "Faild" is displayed on the screen.

4

(Initialization)

Write the factory set ESC setting data to

the connected ESC and T4PX.

-Select the setting item "Reset" by (JOG)

button up or down operation, and press

the (JOG) button.

-"Wrieing succeeded" is displayed on the screen
and the setting data is written to ESC.
- If "Faild" is displayed on the screen, communication with the ESC is not being
performed normally. Check the T4PX and ESC connection and the battery con-
nection to ESC and the ESC power switch and repeat "Write".

Setup item selection
- Select by (JOG) button up or

down operation.

Reset execution button
- (JOG) buttons pressed.
