DeviceMaster UP Modbus/TCP User Guide: 2000447 Rev. I

Chapter 4. Diagnostic and Statistics Pages - 91

Communication Statistics

RX Pkt Count

Displays the number of packets received over the application socket port.

To Device Dropped Packet
Count

Displays the number of dropped packets that were intended for the device.

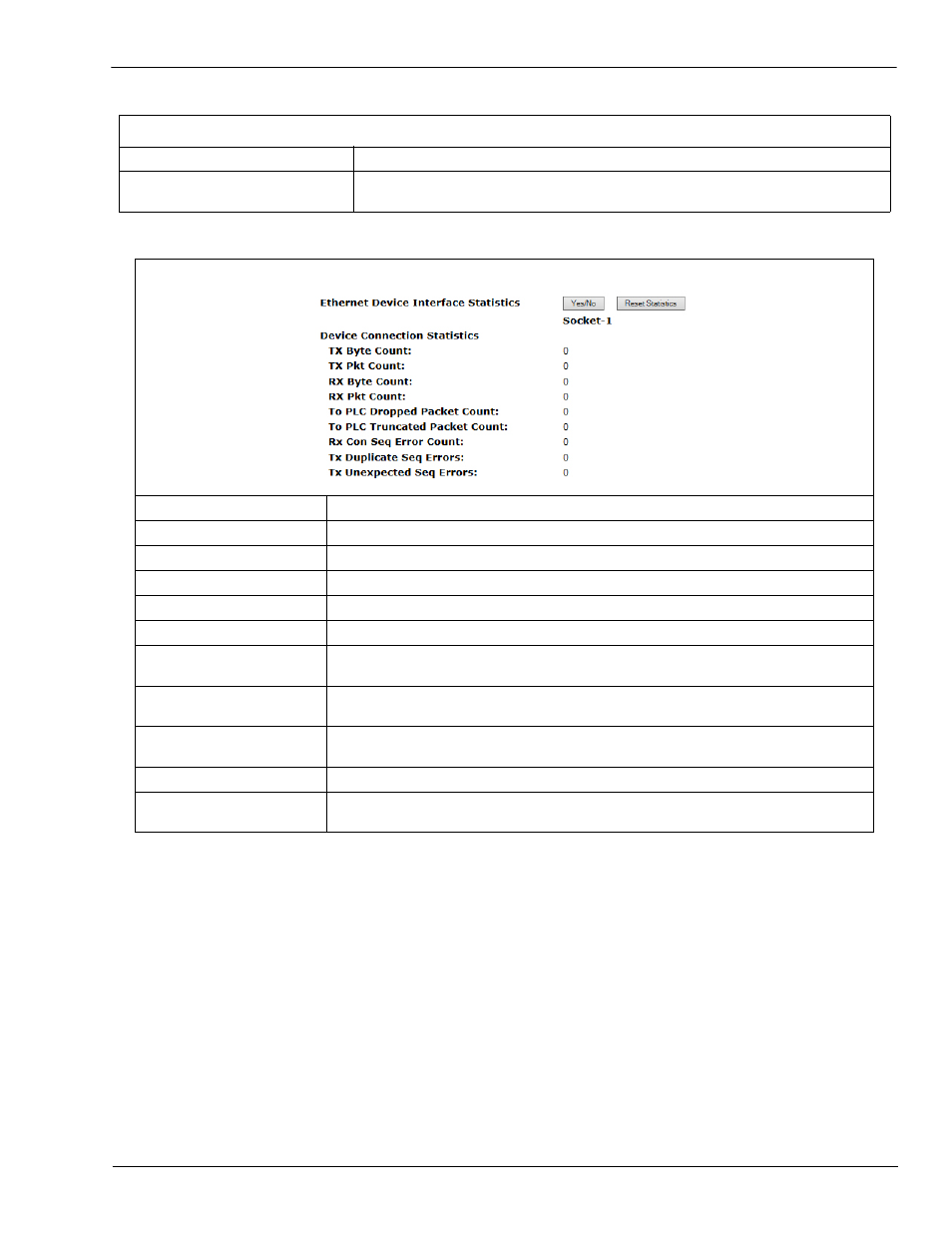

Ethernet Device Interface Statistics

Yes/No

Toggles to display or not to display socket statistics.

Reset Statistics

Clears the socket port statistics, which sets the value to 0 for all ports.

TX Byte Count

Displays the number of bytes sent out the device socket port.

TX Pkt Count

Displays the number of packets sent out the device socket port.

RX Byte Count

Displays the number of bytes received over the device socket port.

RX Pkt Count

Displays the number of packets received over the device socket port.

To PLC Dropped Packet
Count

Displays the number of dropped packets that were intended for the PLC.

To PLC Truncated Packet
Count

Displays the number of received packets that were truncated before being
sent to the PLC.

Rx Con Seq Error Count

Same as the serial port statistics, except the packet was received over a
socket port (Page 89).

Tx Duplicate Seq Errors

Same as the serial port statistics (Page 89).

Tx Unexpected Seq
Errors

Same as the serial port statistics (Page 89).

Application Connection Statistics (Serial) (Continued)
